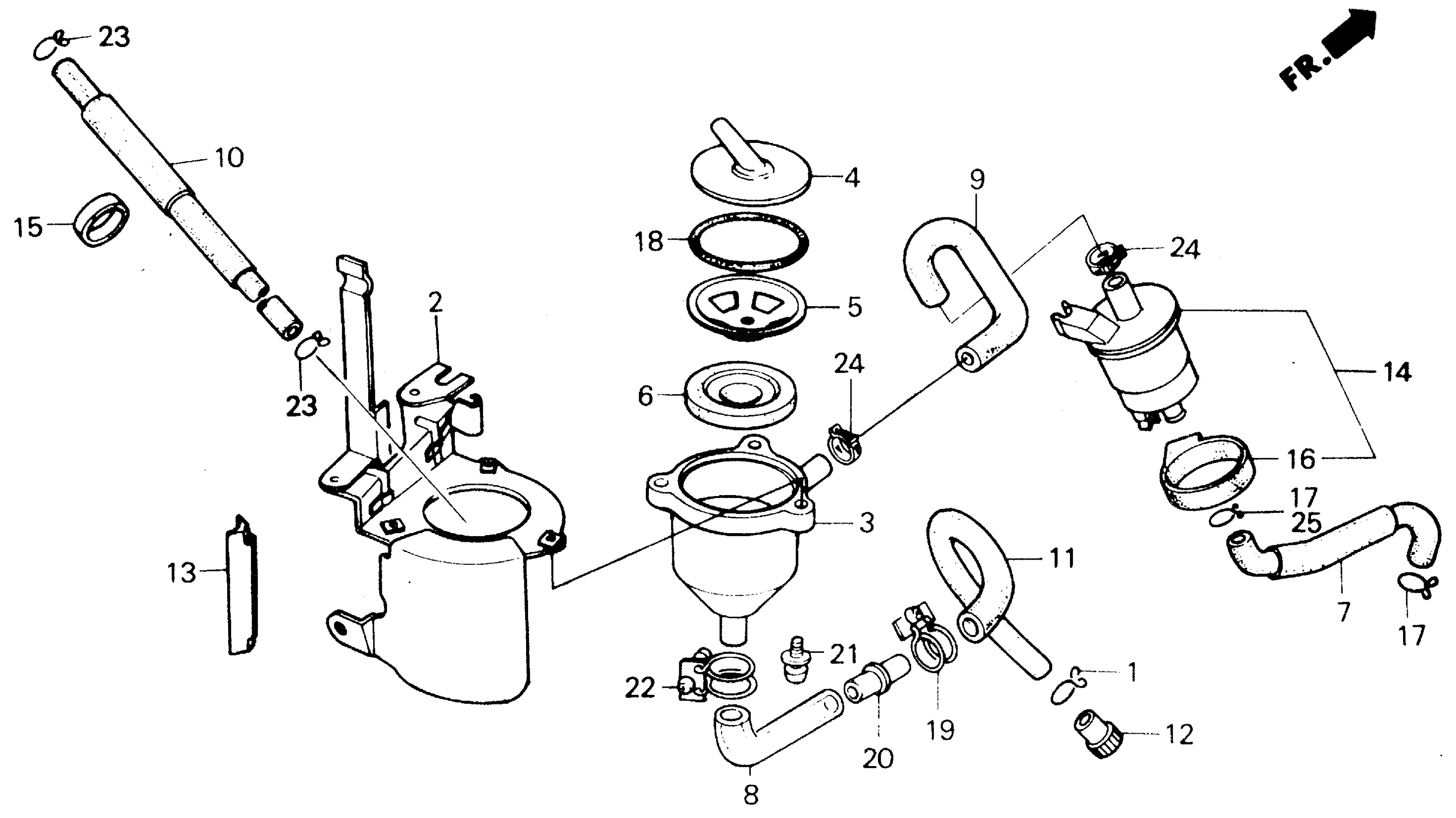

Honda CH250A (86) ELITE 250, JPN, VIN# JH2MF010-GK100001 TO JH2MF010-GK106405 BREATHER SEPARATOR Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

STAY, BREATHER | Use up to Engine SN 5102577 This part replaces 17361-KM1-670.

17361-KM1-671

Unavailable

2

STAY, BREATHER

17361-KM1-671

Unavailable

3

BODY, BREATHER SEPARATOR | Use up to Engine SN 5102577

17361-419-670

Unavailable

3

BODY, BREATHER SEPARATOR | Use from Engine SN 5102578

17362-KJ9-670

Unavailable

4

CAP, BREATHER SEPARATOR (NOT AVAILABLE) | Use up to Engine SN 5102577

17362-152-770

Unavailable

4

CAP, BREATHER SEPARATOR | Use from Engine SN 5102578

17362-KM1-670

Unavailable

5

HOLDER, ELEMENT

17363-419-670

Unavailable

6

ELEMENT, CONDENSATION

17364-419-000

Unavailable

7

TUBE A

17365-KM1-670

Unavailable

8

TUBE A, DRAIN

17366-KG0-000

Unavailable

9

TUBE B

17366-KM1-670

Unavailable

10

TUBE C (NOT AVAILABLE)

17367-KM1-671

Unavailable

11

TUBE, DRAIN

17368-KM1-670

Unavailable

12

PLUG, BREATHER TUBE

17370-382-870

$3.74

13

SPACER, BREATHER STAY

17372-KM1-670

Unavailable

14

CHAMBER, BREATHER (NOT AVAILABLE) This part replaces 17380-KM1-672.

17380-KM1-674

Unavailable

15

BAND, BREATHER TUBE

17391-KM1-670

Unavailable

16

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

17

CLIP, TUBE

90602-KJ9-670

Unavailable

18

O-RING (47X1.9)

91305-419-670

Unavailable

19

CLIP, TUBE (NOT AVAILABLE)

91462-393-780

Unavailable

20

JOINT, TUBE

91463-393-780

$1.80

21

SCREW-WASHER (4X16)

93891-04016-07

$1.49

22

CLIP, TUBE (A16)

95002-01160

$4.05

23

CLIP, TUBE (B12.5)

95002-02130

$1.49

24

CLAMP, TUBE (D12.5)

95002-41250-04

$2.52
