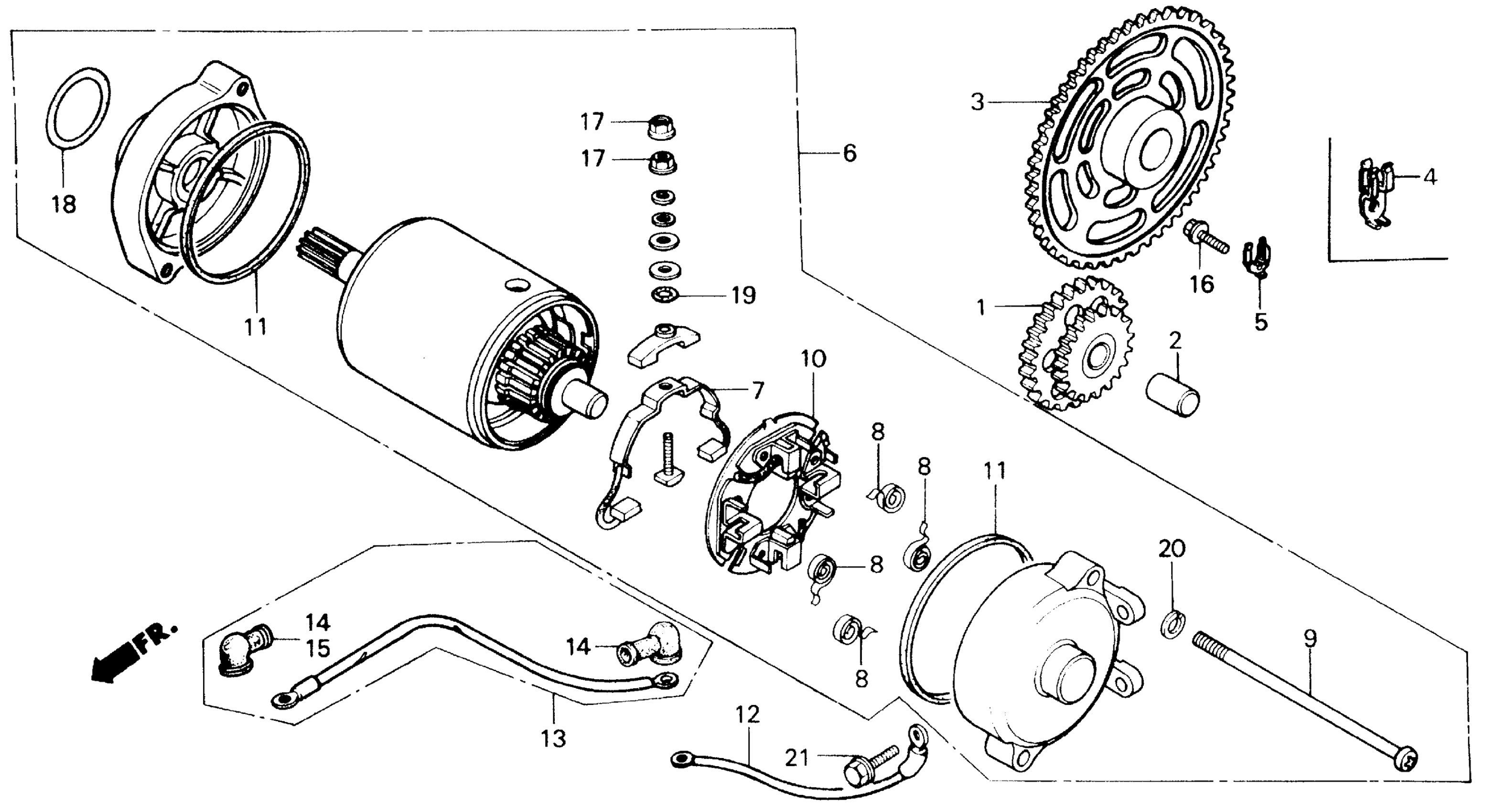

Honda CH250A (85) ELITE 250, JPN, VIN# JH2MF010-FK000001 TO JH2MF010-FK013566 STARTING MOTOR Diagram

#

Description
Price

1

GEAR, STARTER REDUCTION (54T/13T) (NOT AVAILABLE)

28101-KM1-000

Unavailable

2

SHAFT, STARTER REDUCTION GEAR

28102-KM1-670

$9.95

3

GEAR, STARTING CLUTCH (59T) (NOT AVAILABLE) | Use up to Engine SN 5004877 This part replaces 28110-KM1-010.

28110-KM1-020

Unavailable

3

GEAR, STARTING CLUTCH (59T) (NOT AVAILABLE) | Use from Engine SN 5004878

28110-KM1-020

Unavailable

4

GUIDE This part replaces 28131-KM1-000.

28131-KM1-010

Unavailable

6

MOTOR ASSY., STARTER

31200-KM1-008

Unavailable

7

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$31.18

8

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

9

BOLT, SETTING This part replaces 31205-KJ9-000.

31205-MN4-008

$5.80

9

BOLT, SETTING

31205-MN4-008

$5.80

10

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KG7-000.

31206-MM5-008

$19.33

10

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

11

RING, SEAL

31207-179-711

$4.22

12

SUB-WIRE (C) (NOT AVAILABLE)

32103-KM1-000

Unavailable

13

SUB-WIRE (D) (NOT AVAILABLE) This part replaces 32104-KM1-000.

32104-KM1-010

Unavailable

14

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

14

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

16

BOLT, SPECIAL (6X14) (NOT AVAILABLE)

90015-MA6-000

Unavailable

17

NUT-WASHER (6MM)

90071-MB0-000

$1.97

18

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

18

O-RING (24.4X3.1)

91312-MG7-003

$6.34

19

O-RING

91320-MB0-000

$2.43

20

WASHER, SPRING (5MM)

94111-05000

$1.49

21

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

21

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
