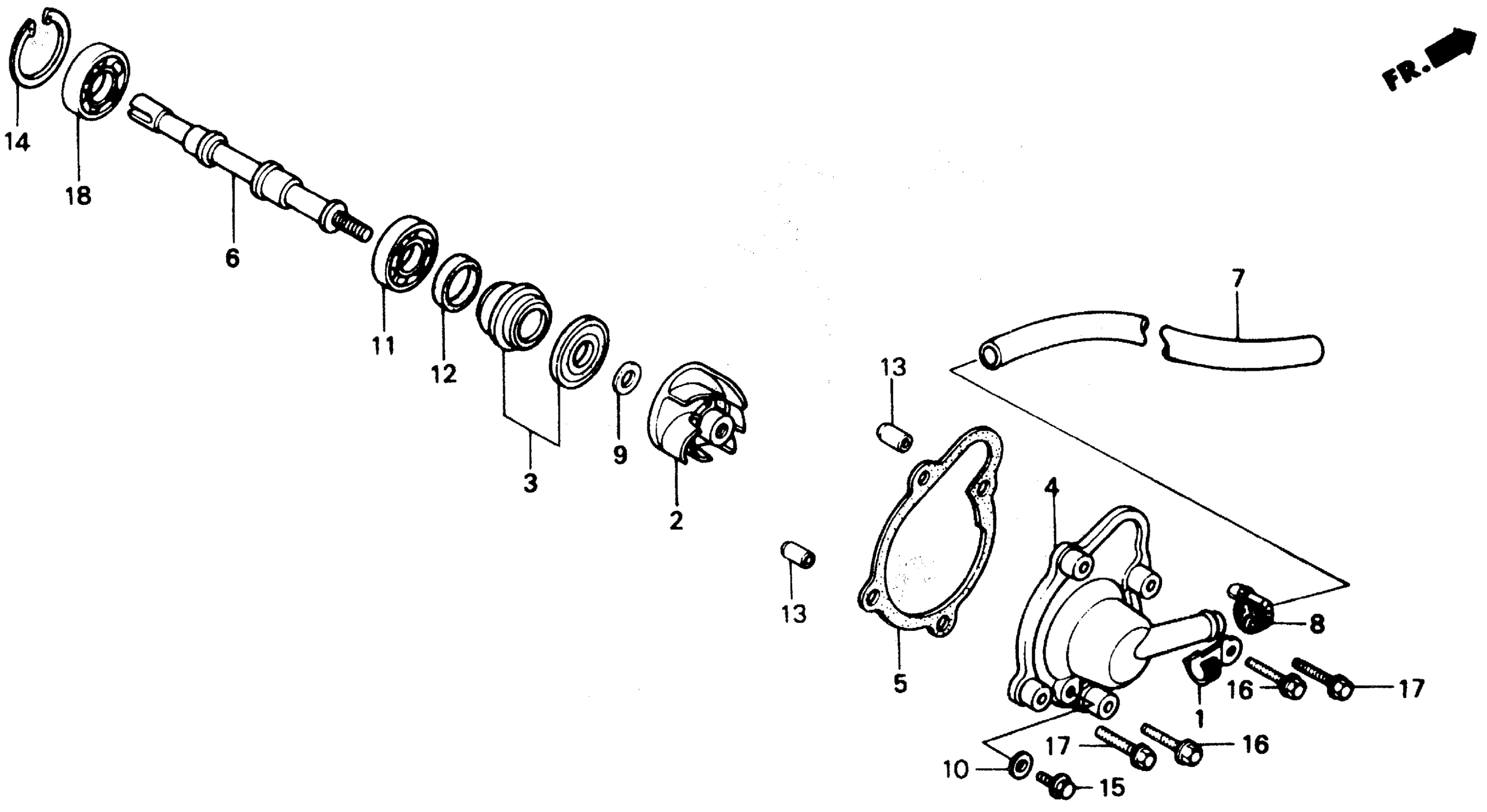

Honda CH150DA (86) ELITE 150 DELUXE, JPN, VIN# JH2KF012-GK100001 TO JH2KF012-GK115201 WATER PUMP Diagram

#

Description
Price

1

CLAMP, BREATHER TUBE This part replaces 11339-KN7-670.

11339-KN7-671

Unavailable

2

IMPELLER, WATER PUMP This part replaces 19215-KJ9-000.

19215-KJ9-010

Unavailable

2

IMPELLER, WATER PUMP

19215-KJ9-010

Unavailable

3

SEAL, MECHANICAL

19217-657-023

$53.27

4

COVER, WATER PUMP

19221-KJ9-010

Unavailable

5

GASKET, WATER PUMP This part replaces 19229-KJ9-000.

19229-KJ9-306

Unavailable

5

GASKET, WATER PUMP

19229-KJ9-306

Unavailable

6

SHAFT, WATER PUMP

19231-KJ9-010

Unavailable

7

HOSE A, WATER

19501-KJ9-000

Unavailable

8

CLAMP A, WATER HOSE This part replaces 19507-KA4-700.

19505-KS6-700

$11.06

8

CLAMP A, WATER HOSE

19505-KS6-700

$11.06

9

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.34

10

WASHER A (6MM)

90478-700-000

$1.49

11

BEARING, RADIAL BALL This part replaces 91001-KJ9-003.

91001-KJ9-005

Unavailable

11

BEARING, RADIAL BALL

91001-KJ9-005

Unavailable

12

OIL SEAL (12X20X5) (ARAI) This part replaces 91201-KJ9-003.

91205-KF0-003

$3.47

12

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.47

13

PIN, DOWEL (8X14)

94301-08140

$2.25

14

CIRCLIP (INNER) (26MM)

94520-26000

$1.85

15

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

15

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

16

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

16

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

17

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

17

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

18

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
