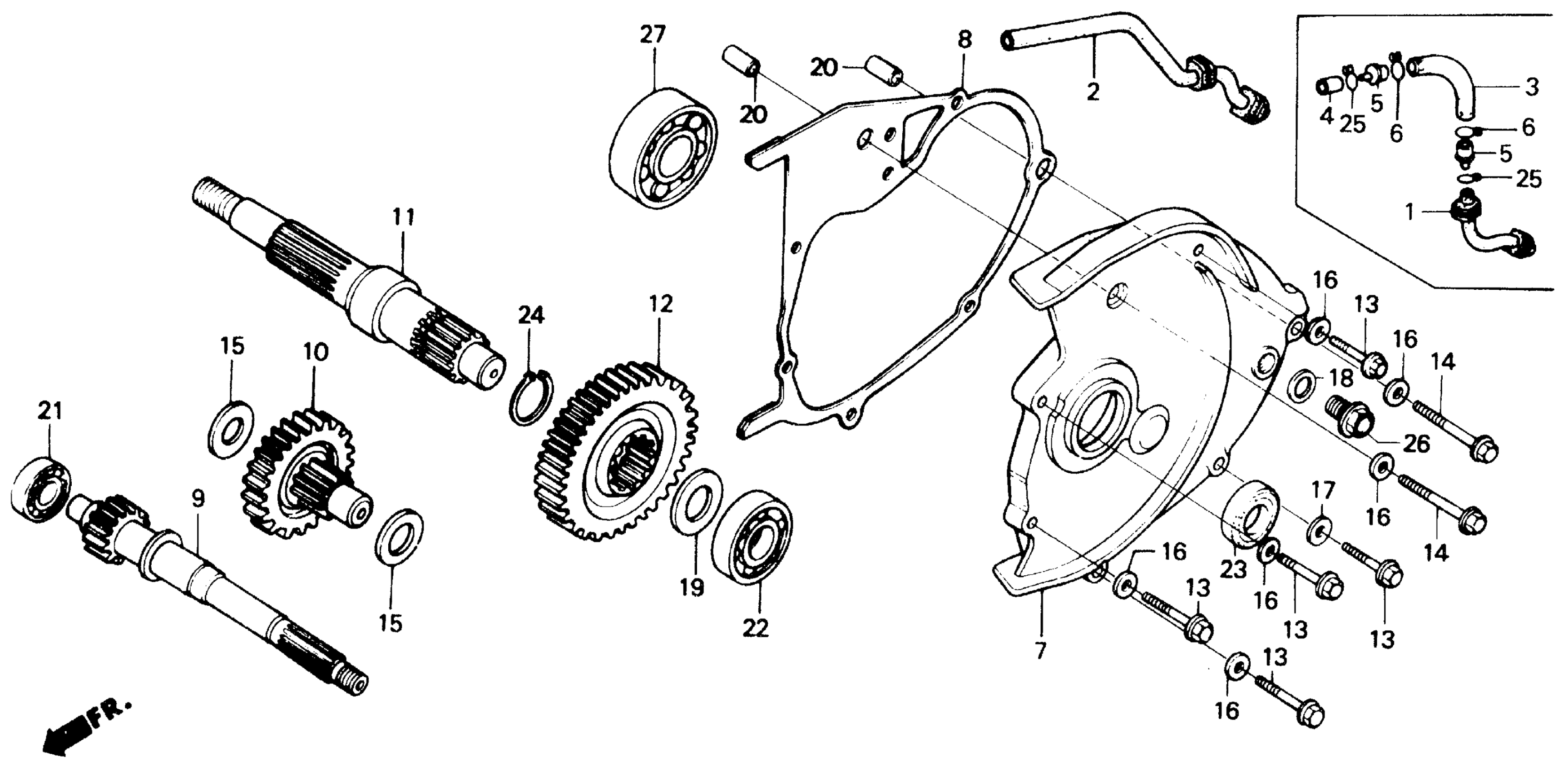

Honda CH150DA (86) ELITE 150 DELUXE, JPN, VIN# JH2KF012-GK100001 TO JH2KF012-GK115201 TRANSMISSION Diagram

#

Description
Price

1

TUBE, BREATHER

11211-KN7-670

Unavailable

3

TUBE B, BREATHER

11212-KJ9-010

Unavailable

4

TUBE C, BREATHER

11213-KJ9-000

Unavailable

5

JOINT, BREATHER TUBE

11215-KJ9-000

Unavailable

6

CLIP, BREATHER TUBE

15772-292-010

$2.92

7

COVER, TRANSMISSION This part replaces 21300-KJ9-020.

21300-KJ9-040

Unavailable

7

COVER, TRANSMISSION This part replaces 21300-KJ9-030.

21300-KJ9-040

Unavailable

7

COVER, TRANSMISSION

21300-KJ9-040

Unavailable

8

GASKET, TRANSMISSION COVER This part replaces 21395-KN7-306.

21395-KV8-680

Unavailable

8

GASKET, TRANSMISSION COVER This part replaces 21395-KN7-670.

21395-KV8-680

Unavailable

8

GASKET, TRANSMISSION COVER

21395-KV8-680

Unavailable

9

SHAFT, DRIVE

23411-KN7-670

Unavailable

10

COUNTERSHAFT This part replaces 23420-KN7-670.

23420-KN7-671

Unavailable

10

COUNTERSHAFT

23420-KN7-671

Unavailable

11

SHAFT, FINAL This part replaces 23431-KN7-670.

23431-KN7-671

Unavailable

11

SHAFT, FINAL

23431-KN7-671

Unavailable

12

GEAR, FINAL

23432-KN7-670

Unavailable

13

BOLT, FLANGE (6X30) This part replaces 90003-KN7-670.

90003-KN7-671

$3.05

13

BOLT, FLANGE (6X30)

90003-KN7-671

$3.05

14

BOLT, FLANGE (6X35) This part replaces 90004-KN7-670.

90004-KN7-671

$4.43

14

BOLT, FLANGE (6X35)

90004-KN7-671

$4.43

15

WASHER, THRUST (14X32X1)

90411-KM1-000

$2.39

16

WASHER, LOCK

90433-KF0-000

Unavailable

17

WASHER, SEALING (6MM)

90441-706-000

$1.49

18

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

19

WASHER (10.2MM)

90481-001-020

$2.92

20

PIN, DOWEL (10X16)

90701-965-000

Unavailable

21

BEARING, RADIAL BALL (6201) (NTN CORP.) This part replaces 91003-GE0-711.

91003-GE0-712

$24.48

21

BEARING, RADIAL BALL (6201) (NTN CORP.)

91003-GE0-712

$24.48

22

BEARING, RADIAL BALL (6204) (TOYO) This part replaces 91007-ZG4-003.

91102-GE1-711

$19.89

22

BEARING, RADIAL BALL (6204) (TOYO) This part replaces 91104-KN7-670.

91102-GE1-711

$19.89

23

OIL SEAL (20X32X6) This part replaces 91202-KJ9-000.

91202-KJ9-003

$4.75

23

OIL SEAL (20X32X6)

91202-KJ9-003

$4.75

24

CIRCLIP, OUTER (20MM)

94510-20000

$1.49

25

CLIP, TUBE (B8)

95002-02080

$1.80

26

BOLT, FLANGE (10X12) (SOURCE: VINTAGE PARTS INC.) This part replaces 95700-10012-00.

95701-10012-00

$3.33

26

BOLT, FLANGE (10X12)

95701-10012-00

$3.33

27

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
