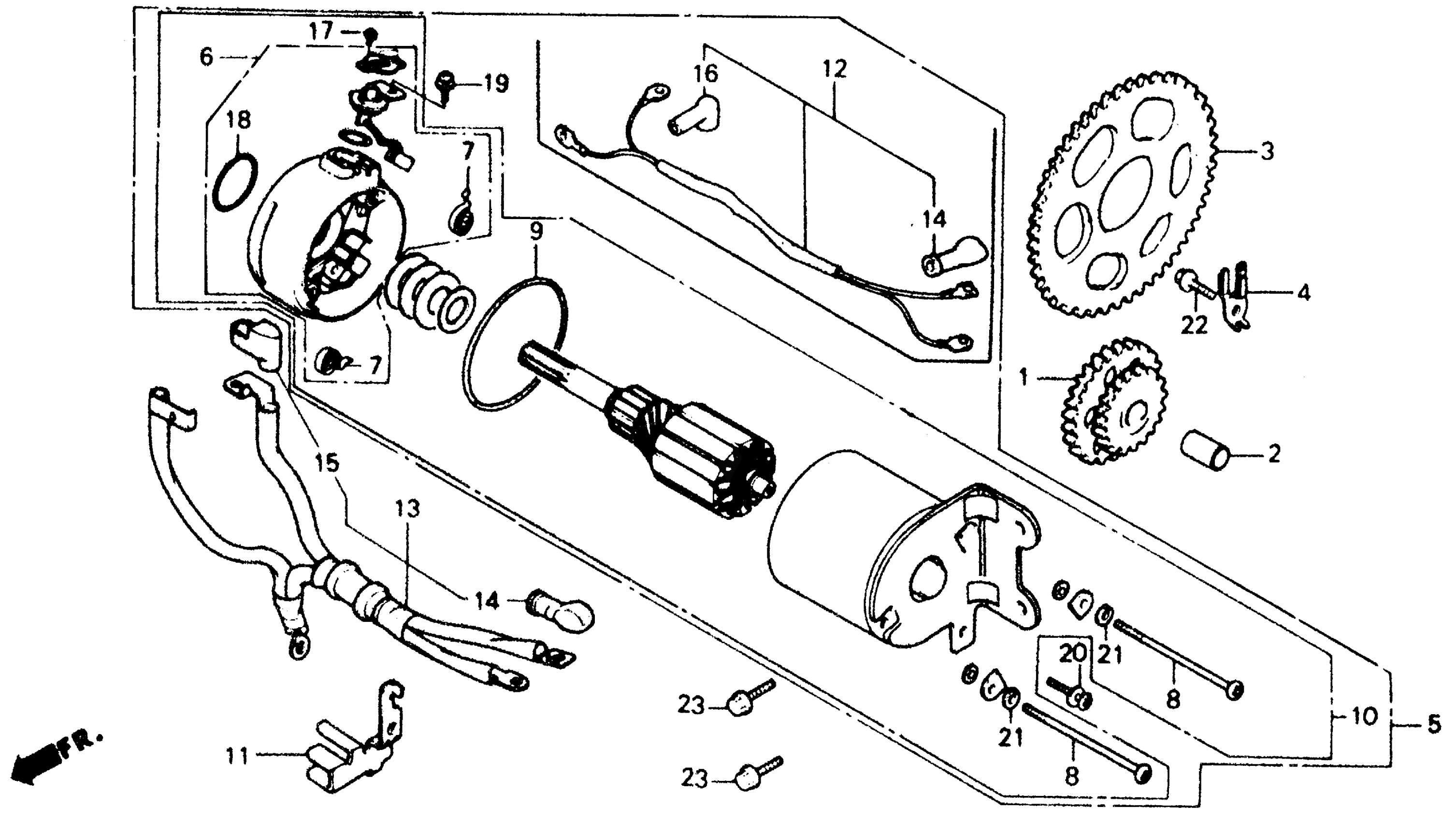

Honda CH150DA (86) ELITE 150 DELUXE, JPN, VIN# JH2KF012-GK100001 TO JH2KF012-GK115201 STARTING MOTOR Diagram

#

Description
Price

1

GEAR, STARTER REDUCTION (54/13T)

28101-KJ9-010

Unavailable

2

SHAFT, STARTER REDUCTION GEAR

28102-KJ9-000

Unavailable

3

GEAR, STARTER CLUTCH (59T) This part replaces 28110-KN7-670.

28110-KN7-671

Unavailable

3

GEAR, STARTER CLUTCH (59T)

28110-KN7-671

Unavailable

4

GUIDE, STARTING DRIVEN GEAR This part replaces 28131-KN7-670.

28131-KN7-671

Unavailable

4

GUIDE, STARTING DRIVEN GEAR

28131-KN7-671

Unavailable

5

MOTOR ASSY., STARTER

31200-KN7-405

Unavailable

5

MOTOR ASSY., STARTER | Use up to Engine SN 5103752 This part replaces 31200-KN7-671.

31200-KN7-405

Unavailable

5

MOTOR ASSY., STARTER | Use up to Engine SN 5103752 This part replaces 31200-KN7-672.

31200-KN7-405

Unavailable

5

MOTOR ASSY., STARTER This part replaces 31200-KN7-673.

31200-KN7-405

Unavailable

5

MOTOR ASSY., STARTER This part replaces 31200-KN7-674.

31200-KN7-405

Unavailable

6

BRUSH SET This part replaces 31201-KN7-670.

31201-KY1-000

Unavailable

6

BRUSH SET

31201-KY1-000

Unavailable

7

SPRING, CARBON BRUSH

31204-KN7-670

Unavailable

8

BOLT, SETTING

31205-KBH-000

Unavailable

8

BOLT, SETTING This part replaces 31205-KN7-670.

31205-KBH-000

Unavailable

9

O-RING

31206-KN7-670

$2.22

10

MOTOR UNIT, STARTER This part replaces 31210-KN7-671.

31210-KN7-673

Unavailable

10

MOTOR UNIT, STARTER This part replaces 31210-KN7-672.

31210-KN7-673

Unavailable

10

MOTOR UNIT, STARTER

31210-KN7-673

Unavailable

11

CLAMP, STARTER MOTOR WIRE

31215-KN7-670

Unavailable

12

SUB-WIRE HARNESS E | Use up to Engine SN 5103752

32105-KN7-670

Unavailable

12

SUB-WIRE HARNESS E | Use from Engine SN 5103753

32105-KN7-672

Unavailable

14

COVER, TERMINAL

32411-KN7-671

Unavailable

16

COVER B, MAGNETIC SWITCH (NOT AVAILABLE)

32416-425-000

Unavailable

17

SCREW-WASHER,4X6 This part replaces 90106-KN7-670.

90106-KBH-000

Unavailable

18

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

18

O-RING (24.4X3.1)

91312-MG7-003

$6.34

19

SCREW-WASHER (5X8) (NOT AVAILABLE)

91981-KN7-670

Unavailable

20

SCREW-WASHER (6X12)

93893-06012-08

$1.49

21

WASHER, SPRING (5MM)

94111-05000

$1.49

22

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

22

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

23

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

23

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
