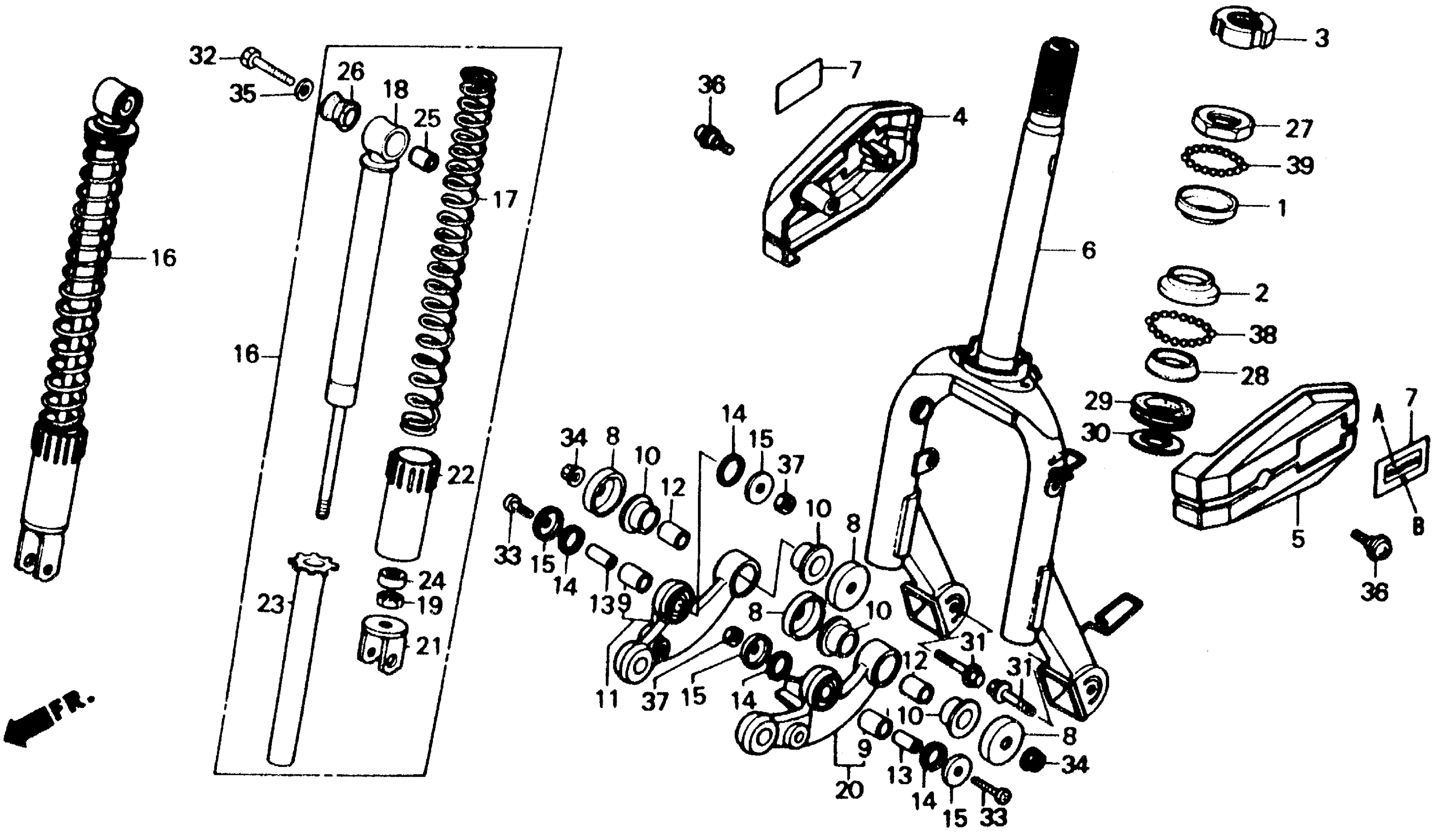

Honda CH150DA (86) ELITE 150 DELUXE, JPN, VIN# JH2KF012-GK100001 TO JH2KF012-GK115201 FRONT FORK 85-86 Diagram

#

Description
Price

1

RACE, STEERING BALL (UPPER)

50301-KN7-670

Unavailable

2

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

3

NUT, STEERING STEM LOCK

50306-KJ9-670

Unavailable

4

COVER, R. PIVOT ARM (WOL)

51103-KN7-670

Unavailable

5

COVER, L. PIVOT ARM (WOL)

51104-KN7-670

Unavailable

6

FORK, FR. *NH1* (BLACK) (NOT AVAILABLE)

51105-KN7-670ZA

Unavailable

7

MARK, PIVOT ARM COVER

51108-KJ9-300

Unavailable

8

DUST SEAL, FR. BRAKE ARM This part replaces 51305-GM9-003.

51305-GM9-015

Unavailable

8

DUST SEAL, FR. BRAKE ARM This part replaces 51305-GM9-005.

51305-GM9-015

Unavailable

8

DUST SEAL, FR. BRAKE ARM

51305-GM9-015

Unavailable

9

BUSH, FR. FORK (LOWER)

51311-041-006

Unavailable

10

BUSH,FR FORK UND This part replaces 51314-GM9-711.

51314-GFZ-J01

Unavailable

11

ARM SUB-ASSY., R. FR. (NOT AVAILABLE)

51315-KN7-670

Unavailable

12

COLLAR, FR. FORK DISTANCE

51334-GM9-000

Unavailable

13

COLLAR, FR. FORK DISTANCE (LOWER)

51334-041-000

Unavailable

14

DUST SEAL, FR. FORK (LOWER)

51335-001-000

$2.11

15

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

16

SHOCK ABSORBER, FR. This part replaces 51400-KN7-741.

51400-KN7-672

Unavailable

17

SPRING, FR. FORK (NOT AVAILABLE)

51401-KJ9-751

Unavailable

18

DAMPER, FR. (NOT AVAILABLE)

51410-KN7-671

Unavailable

19

NUT, LOCK (8MM)

51413-GB4-003

Unavailable

20

ARM SUB-ASSY., L. FR.

51415-KN7-670

Unavailable

21

JOINT, FR. FORK (LOWER)

51420-GN2-003

Unavailable

22

CASE, FR. FORK (LOWER)

51421-KG8-003

Unavailable

23

GUIDE, FR. FORK SPRING

51458-GG2-003

Unavailable

24

RUBBER, RR. SHOCK ABSORBER STOPPER (NOT AVAILABLE)

52475-001-040

Unavailable

25

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.77

26

RUBBER A, JOINT (SHOWA)

52489-331-003

$2.03

27

RACE, STEERING TOP CONE

53211-KN7-670

Unavailable

28

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

29

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

30

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

31

BOLT, FLANGE (8X48)

90111-GC3-000

$6.64

32

BOLT, HEX. (8X32)

90121-GC8-000

$4.93

33

BOLT, FR. FORK (LOWER)

90149-041-010

Unavailable

34

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

34

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

35

WASHER, SPECIAL (8MM)

90443-GC8-000

$2.66

36

BOLT, FLANGE (5X9)

90508-GC8-000

$4.35

37

NUT, HEX. (8MM)

94002-08000-0S

$1.49

38

BALL, STEEL (#5) (5/32)

96211-05000

$1.49

39

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
