- CH150DA (86) ELITE 150 DELUXE, JPN, VIN# JH2KF012-GK100001 TO JH2KF012-GK115201
FRAME 85-86

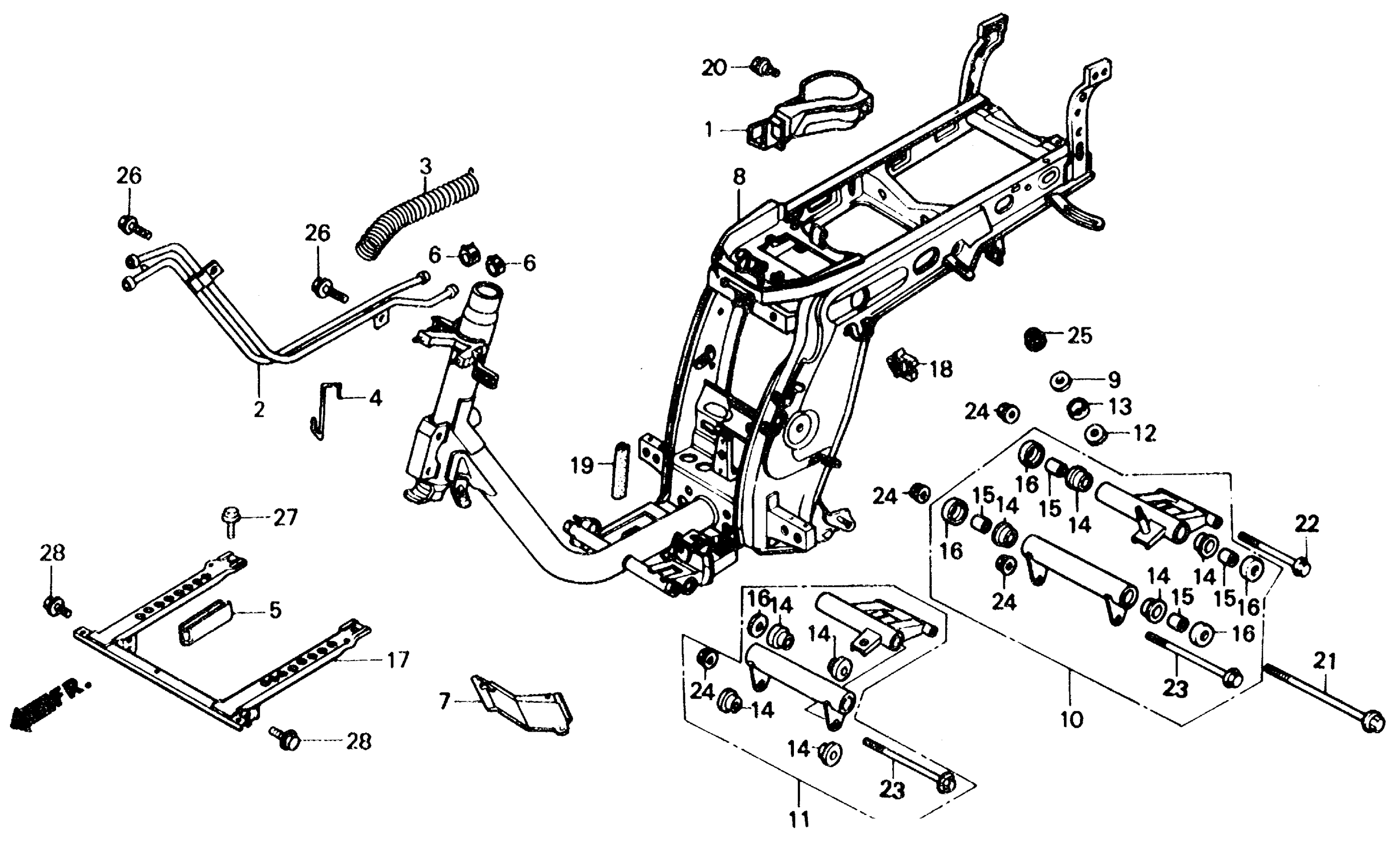

Honda CH150DA (86) ELITE 150 DELUXE, JPN, VIN# JH2KF012-GK100001 TO JH2KF012-GK115201 FRAME 85-86 Diagram
#
Description
Price
1
COVER, PETCOCK
16960-KN7-670
Unavailable
2
PIPE, WATER This part replaces 19120-KN7-670.
19120-KJ9-020
Unavailable
3
WIRE, WATER HOSE GUARD
19504-KJ9-010
Unavailable
4
HANGER, WATER HOSE
19505-KJ9-000
Unavailable
5
PROTECTOR, HOSE
19506-KJ9-000
Unavailable
7
SPLASH GUARD (NOT AVAILABLE)
46520-KN7-670
Unavailable
8
FRAME This part replaces 50100-KN7-830.
50102-KN7-830
Unavailable
8
FRAME
50102-KN7-830
Unavailable
9
WASHER, ENGINE HANGER STOPPER
50348-KN7-670
Unavailable
10
HANGER, ENGINE | Use up to Frame SN GK101814
50350-KJ9-751
Unavailable
10
HANGER, ENGINE (NOT AVAILABLE) | Use from Frame SN GK101815
50350-KJ9-752
Unavailable
12
RUBBER A, ENGINE HANGER STOPPER
50352-GE0-000
Unavailable
13
RUBBER A, ENGINE HANGER STOPPER
50352-KJ9-000
Unavailable
15
COLLAR B, ENGINE HANGER (NOT AVAILABLE)
50358-KM1-000
Unavailable
16
WASHER B, THRUST (NOT AVAILABLE)
50359-KM1-000
Unavailable
17
REINFORCEMENT, FLOOR
50611-KN7-830
Unavailable
19
MOLDING, WIND
64209-KJ9-000
Unavailable
22
BOLT (10X235.5)
90105-KN7-670
Unavailable
