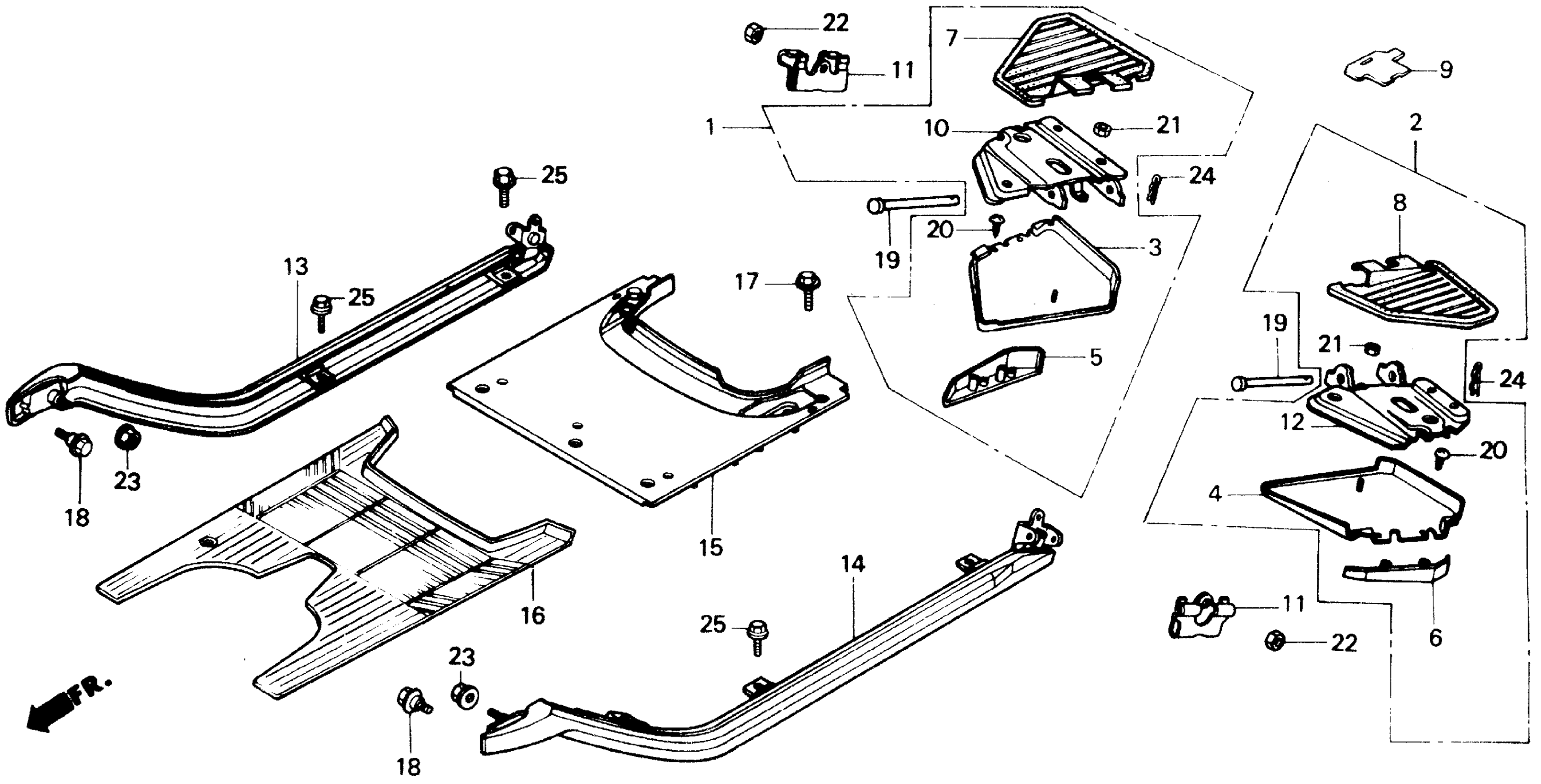

Honda CH150DA (86) ELITE 150 DELUXE, JPN, VIN# JH2KF012-GK100001 TO JH2KF012-GK115201 FLOOR PANEL 85-86 Diagram

#

Description
Price

1

STEP ASSY., R. PILLION *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

50612-KJ9-000ZF

Unavailable

1

STEP ASSY., R. PILLION *PB140M* (SATELLITE BLUE METALLIC) (NOT AVAILABLE)

50612-KJ9-000ZP

Unavailable

2

STEP ASSY., L. PILLION *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

50613-KN7-670ZA

Unavailable

2

STEP ASSY., L. PILLION *PB140M* (SATELLITE BLUE METALLIC) (NOT AVAILABLE)

50613-KN7-670ZK

Unavailable

3

COVER, R. PILLION STEP *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

50619-KJ9-300ZF

Unavailable

3

COVER, R. PILLION STEP *PB140M* (SATELLITE BLUE METALLIC) (NOT AVAILABLE)

50619-KJ9-300ZP

Unavailable

4

COVER, L. PILLION STEP *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

50620-KJ9-300ZF

Unavailable

4

COVER, L. PILLION STEP *PB140M* (SATELLITE BLUE METALLIC) (NOT AVAILABLE)

50620-KJ9-300ZP

Unavailable

5

COVER, R. PILLION STEP (TOP) (NOT AVAILABLE)

50700-KJ9-300

Unavailable

6

COVER, L. PILLION STEP (TOP) (NOT AVAILABLE)

50702-KJ9-300

Unavailable

7

RUBBER, R. STEP (NOT AVAILABLE)

50710-KJ9-300

$19.20

8

RUBBER, L. STEP (NOT AVAILABLE)

50712-KN7-670

Unavailable

9

GUARD, L. PILLION STEP

50713-KN7-670

Unavailable

10

BASE, R. PILLION STEP

50715-KJ9-300

Unavailable

11

SPRING, PILLION STEP

50716-KJ9-000

Unavailable

12

BASE, L. PILLION STEP

50718-KJ9-300

Unavailable

13

RAIL, R. SIDE *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

64306-KJ9-000ZF

Unavailable

13

RAIL, R. SIDE *PB140M* (SATELLITE BLUE METALLIC) (NOT AVAILABLE)

64306-KJ9-000ZP

Unavailable

14

RAIL, L. SIDE *R4C* (CANDY RUBY RED) (NOT AVAILABLE)

64307-KN7-670ZA

Unavailable

14

RAIL, L. SIDE *PB140M* (SATELLITE BLUE METALLIC) (NOT AVAILABLE)

64307-KN7-670ZK

Unavailable

15

PANEL, FLOOR (NOT AVAILABLE)

64310-KJ9-000

Unavailable

16

FLOOR MAT

64315-KJ9-000

Unavailable

17

BOLT, FLANGE (6MM)

90111-147-000

$2.75

18

BOLT, FLANGE (6MM)

90111-187-000

$5.59

19

PIN, PILLION STEP

90131-KJ9-000

Unavailable

20

SCREW, TAPPING (4X10)

93903-24220

$1.49

21

NUT, HEX. (4MM)

94002-04000-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

22

NUT, HEX. (6MM)

94002-06000-0S

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

PIN, LOCK (6MM)

94251-06000

$1.49

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
