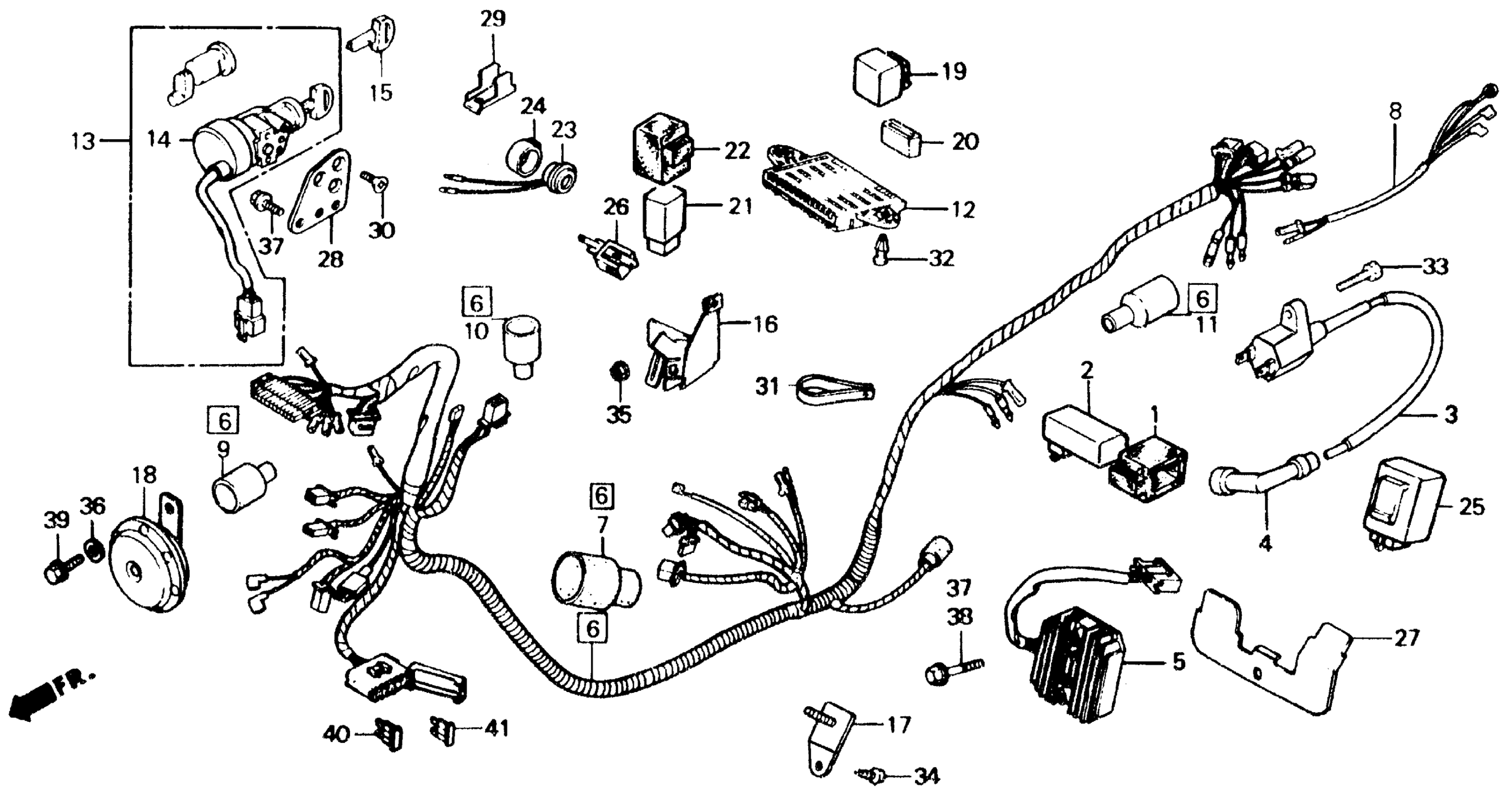

Honda CH150DA (86) ELITE 150 DELUXE, JPN, VIN# JH2KF012-GK100001 TO JH2KF012-GK115201 CH150D WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

MODULE, IGNITION CONTROL (CDI)

30410-KN7-670

Unavailable

COIL, IGNITION

30510-GR2-405

$74.70

COIL, IGNITION This part replaces 30510-KN7-670.

30510-GR2-405

$74.70

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KN7-670.

30700-KN7-671

Unavailable

CAP ASSY., NOISE SUPPRESSOR

30700-KN7-671

Unavailable

RECTIFIER, REGULATOR This part replaces 31600-KM1-008.

31600-KS4-841

Unavailable

RECTIFIER, REGULATOR

31600-KS4-841

Unavailable

WIRE HARNESS (NOT AVAILABLE)

32100-KN7-830

Unavailable

COVER, C.D.I. CONNECTOR (NOT AVAILABLE)

32102-KB7-000

Unavailable

SUB-HARNESS (H)

32107-KN7-770

Unavailable

COVER, WIRE HARNESS CONNECTOR

32108-080-000

$5.54

COVER, CONNECTOR (NOT AVAILABLE)

32108-115-000

$3.51

COVER, CONNECTOR

32108-473-000

Unavailable

MULTI-CONNECTOR, MALE (15X5) This part replaces 32150-GE8-003.

32150-GE8-601

Unavailable

MULTI-CONNECTOR, MALE (15X5)

32150-GE8-601

Unavailable

LOCK SET (NOT AVAILABLE)

35010-KN7-770

Unavailable

SWITCH ASSY., COMBINATION This part replaces 35100-KN7-770.

35100-KN7-771

Unavailable

SWITCH ASSY., COMBINATION

35100-KN7-771

Unavailable

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

PLATE, ELECTRIC

35550-KN7-770

Unavailable

STAY, ELECTRIC SETTING

35551-KN7-770

Unavailable

HORN (HIGH) This part replaces 38110-GJ1-731.

38110-KY0-621

Unavailable

HORN (HIGH) This part replaces 38110-KE5-601.

38110-KY0-621

Unavailable

HORN (HIGH) This part replaces 38110-KE8-601.

38110-KY0-621

Unavailable

HORN (HIGH)

38110-KY0-621

Unavailable

HORN (HIGH) This part replaces 38110-MJ4-601.

38110-KY0-621

Unavailable

HORN (HIGH) This part replaces 38110-413-000.

38110-KY0-621

Unavailable

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-GN3-671.

38301-GN3-672

$61.82

RELAY, TURN SIGNAL (MITSUBA)

38301-GN3-672

$61.82

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

RELAY ASSY., CONTROL (20A) This part replaces 38351-KJ9-003.

38360-762-003

Unavailable

RELAY ASSY., CONTROL (20A)

38360-762-003

Unavailable

SUSPENSION, LIGHT RELAY

38356-KJ9-003

Unavailable

PILOT, AUDIBLE

38401-KM1-670

Unavailable

SUSPENSION, AUDIBLE PILOT

38402-GC1-000

$6.48

RELAY, POSITION This part replaces 38601-KJ9-671.

38601-MB3-671

Unavailable

RELAY, POSITION

38601-MB3-671

Unavailable

TIMER UNIT

39500-KJ9-003

Unavailable

STAY, C.D.I. & RELAY

50148-KN7-670

Unavailable

STAY, HANDLE LOCK

53128-KJ9-000

Unavailable

STAY, RELAY & AUDIBLE PILOT

53129-KN7-770

Unavailable

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

STRAP C, CABLE

90668-GA7-003

Unavailable

CLIP, TRIM

90672-671-003

Unavailable

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

SCREW, TAPPING (4X12)

93903-34380

$2.18

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (6X12) | Use up to Frame SN GK102267 This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12) | Use from Frame SN GK102268 This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12) | Use up to Frame SN GK102267

95701-06012-00

$1.62

BOLT, FLANGE (6X12) | Use from Frame SN GK102268

95701-06012-00

$1.62

BOLT, FLANGE (6X16) | Use from Frame SN GK102268 This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16) | Use from Frame SN GK102268

95701-06016-00

$1.55

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

FUSE, BLADE (5A)

98200-30500

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49
