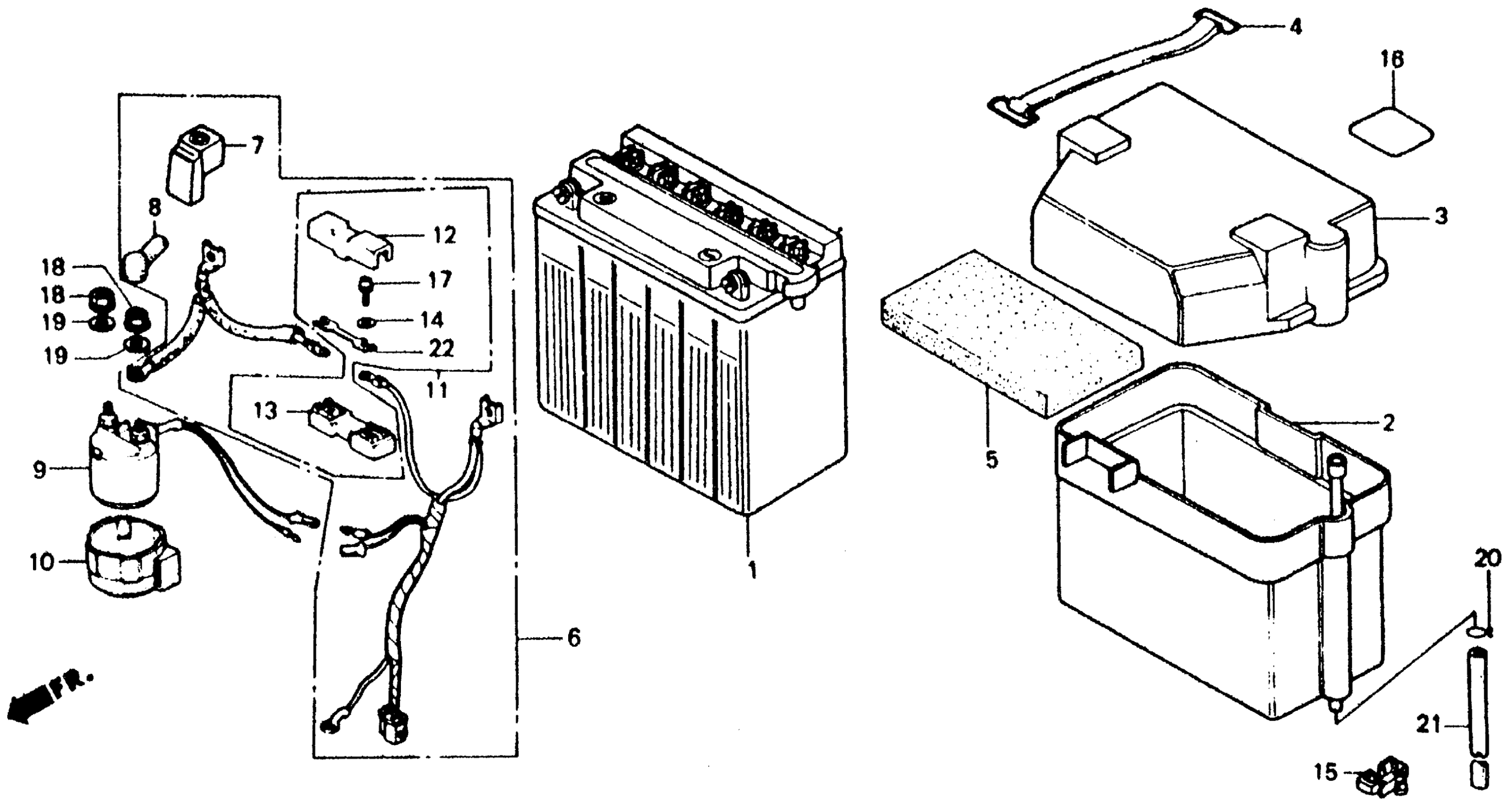

Honda CH150DA (86) ELITE 150 DELUXE, JPN, VIN# JH2KF012-GK100001 TO JH2KF012-GK115201 BATTERY 85-86 Diagram

#

Description
Price

1

BATTERY (YB9-B) This part replaces 31500-KB4-673.

31500-KB4-673AH

Unavailable

1

BATTERY (YB9-B) This part replaces 31500-KJ9-671.

31500-KB4-673AH

Unavailable

1

BATTERY (YB9-B) This part replaces 31500-KJ9-672.

31500-KB4-673AH

Unavailable

2

BOX, BATTERY

31501-KJ9-000

Unavailable

3

COVER, BATTERY

31502-KJ9-000

Unavailable

4

BAND, BATTERY

31503-KJ9-000

Unavailable

5

RUBBER, BATTERY

31508-GA7-000

Unavailable

6

SUB-WIRE HARNESS B (NOT AVAILABLE)

32102-KN7-670

Unavailable

7

COVER, BATTERY TERMINAL

32412-KJ9-000

Unavailable

8

COVER B, MAGNETIC SWITCH (NOT AVAILABLE)

32416-425-000

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-KR3-671

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC This part replaces 35851-KM1-000.

35850-KR3-671

Unavailable

10

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

10

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

11

BOX, MAIN FUSE (NOT AVAILABLE)

38250-KJ9-015

Unavailable

12

COVER (NOT AVAILABLE) This part replaces 38251-MA6-005.

38251-KJ9-000

Unavailable

13

BASE (NOT AVAILABLE)

38252-KJ9-005

Unavailable

14

WASHER, PLAIN (3X10)

38253-422-005

Unavailable

15

CLIP, WIRE HARNESS

53105-GC1-003

Unavailable

16

MARK, BATTERY CAUTION

87506-KJ9-670

Unavailable

17

SCREW, PAN (3X8)

93500-03008-0H

$1.49

18

NUT, FLANGE (6MM)

94050-06080

$1.49

19

WASHER, SPRING (6MM)

94111-06800

$1.49

20

CLIP, TUBE (B10)

95002-02100

$1.90

21

BULK HOSE, VACUUM (5X3000) (5X450)

95005-50003-30M

$20.85

22

FUSE F (20A)

98200-52000

$1.49
