- CH150DA (85) ELITE 150 DELUXE, JPN, VIN# JH2KF012-FK000024 TO JH2KF012-FK007283
CH150D TURN SIGNAL

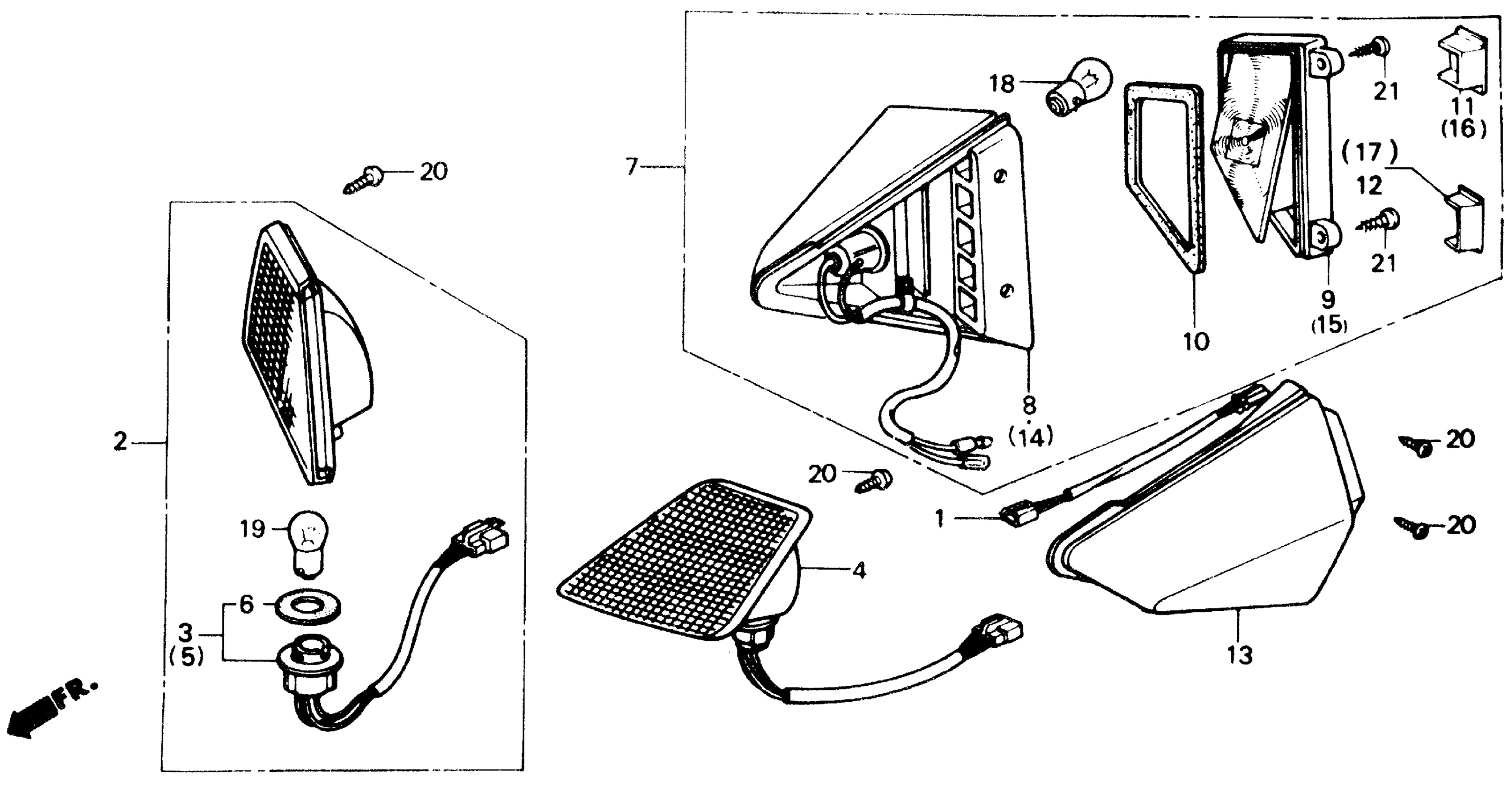

Honda CH150DA (85) ELITE 150 DELUXE, JPN, VIN# JH2KF012-FK000024 TO JH2KF012-FK007283 CH150D TURN SIGNAL Diagram
#
Description
Price
1
SUB-WIRE HARNESS F
32106-KN7-670
Unavailable
2
TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE) This part replaces 33400-KJ9-671.
33400-KJ9-672
Unavailable
3
WIRE, R. FR. TURN SIGNAL
33405-KJ9-003
Unavailable
4
TURN SIGNAL ASSY., L. FR. (NOT AVAILABLE) This part replaces 33450-KJ9-671.
33450-KJ9-672
Unavailable
5
WIRE, L. FR. TURN SIGNAL
33455-KJ9-003
Unavailable
6
SEAL, GASKET
33518-KJ9-003
Unavailable
7
TURN SIGNAL ASSY., R. RR. This part replaces 33600-KJ9-671.
33600-KJ9-672
Unavailable
7
TURN SIGNAL ASSY., R. RR.
33600-KJ9-672
Unavailable
8
BASE, R. TURN SIGNAL (NOT AVAILABLE) This part replaces 33601-KJ9-671.
33601-KJ9-672
Unavailable
9
LENS, R. TURN SIGNAL This part replaces 33602-KJ9-671.
33602-KJ9-672
Unavailable
9
LENS, R. TURN SIGNAL
33602-KJ9-672
Unavailable
10
GASKET, RR. TURN SIGNAL (NOT AVAILABLE)
33604-KJ9-741
Unavailable
11
COVER A, R. RR. TURN SIGNAL (NOT AVAILABLE)
33605-KJ9-741
Unavailable
12
COVER B, R. RR. TURN SIGNAL (NOT AVAILABLE)
33606-KJ9-741
Unavailable
13
TURN SIGNAL ASSY., L. RR. This part replaces 33650-KJ9-671.
33650-KJ9-672
Unavailable
13
TURN SIGNAL ASSY., L. RR.
33650-KJ9-672
Unavailable
14
BASE, L. TURN SIGNAL This part replaces 33651-KJ9-671.
33651-KJ9-672
Unavailable
14
BASE, L. TURN SIGNAL
33651-KJ9-672
Unavailable
15
LENS, L. TURN SIGNAL This part replaces 33652-KJ9-671.
33652-KJ9-672
Unavailable
15
LENS, L. TURN SIGNAL
33652-KJ9-672
Unavailable
16
COVER A, L. RR. TURN SIGNAL (NOT AVAILABLE)
33655-KJ9-741
Unavailable
17
COVER B, L. RR. TURN SIGNAL (NOT AVAILABLE)
33656-KJ9-741
Unavailable
21
SCREW, TAPPING (3X12)
93901-22380
Unavailable
