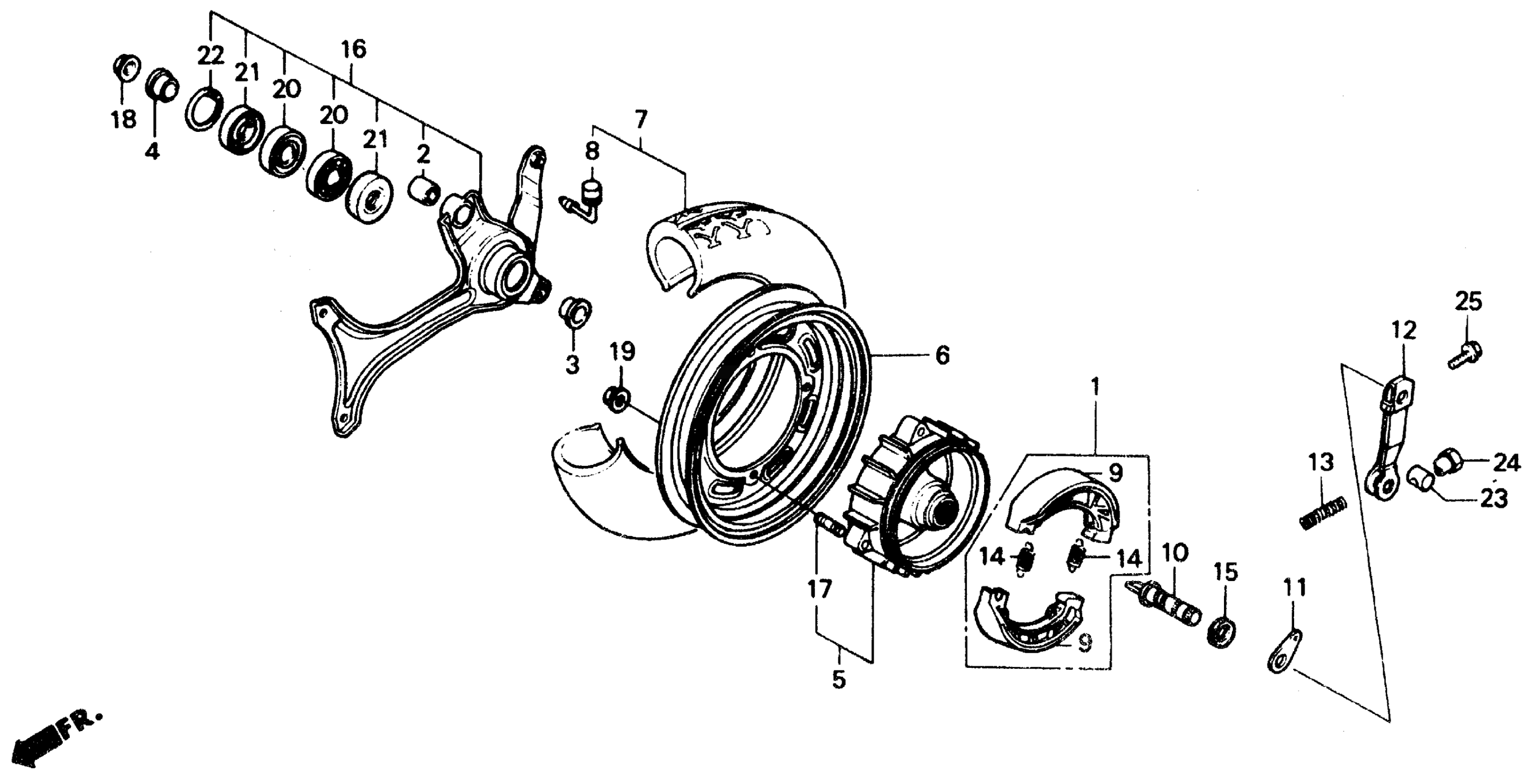

Honda CH150AC (87) ELITE 150, JPN, VIN# JH2KF011-HK200001 TO JH2KF011-HK205608 REAR WHEEL 87 Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GC8-005.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 431A0-KG8-670.

06450-178-932

$24.89

1

SHOE KIT, BRAKE

06430-GAG-505

Unavailable

1

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

1

SHOE SET, BRAKE (JB) This part replaces 06450-096-651.

06450-178-932

$24.89

1

SHOE KIT, BRAKE This part replaces 06450-968-681.

06430-GAG-505

Unavailable

2

BUSH, RR. CUSHION RUBBER (LOWER)

11203-GC7-300

$10.71

3

COLLAR A, RR. AXLE

42311-KN7-670

Unavailable

4

COLLAR, RR. AXLE SIDE

42312-KG8-000

Unavailable

5

HUB SUB, RR. WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42610-KV7-670ZA.

42610-KV7-671ZA

Unavailable

5

HUB SUB, RR. WHEEL *NH35M* (CLOUD SILVER METALLIC)

42610-KV7-671ZA

Unavailable

6

RIM, WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42705-KV7-670ZA.

42705-KV7-671ZA

Unavailable

6

RIM, WHEEL *NH35M* (CLOUD SILVER METALLIC)

42705-KV7-671ZA

Unavailable

7

TIRE ASSY., RR. (3.50-10) (4PR/51J ML12) (BS)

42710-KJ9-751

Unavailable

7

TIRE ASSY., RR. (3.50-10) (4PR/51J K627B) (DUNLOP) This part replaces 42710-KJ9-752.

42711-KJ9-758

Unavailable

7

TIRE ASSY., RR. (3.50-10) (4PR/51J K627B) (DUNLOP) This part replaces 42711-KJ9-754.

42711-KJ9-758

Unavailable

7

TIRE ASSY., RR. (3.50-10) (4PR/51J K627B) (DUNLOP) This part replaces 42711-KJ9-756.

42711-KJ9-758

Unavailable

7

TIRE ASSY., RR. (3.50-10) (4PR/51J K627B) (DUNLOP)

42711-KJ9-758

Unavailable

8

VALVE, RIM (BS)

42753-KJ9-003

$17.49

8

VALVE, RIM (DUNLOP)

42753-KJ9-004

$16.69

8

VALVE, RIM (IRC)

42753-KJ9-005

$16.50

9

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

9

SHOE SET, BRAKE (JB) This part replaces 43120-KG8-003.

06450-178-932

$24.89

9

SHOE SET, BRAKE (JB) This part replaces 43120-KG8-005.

06450-178-932

$24.89

9

SHOE SET, BRAKE (JB) This part replaces 43120-KV7-671.

06450-178-932

$24.89

10

CAM, RR. BRAKE

43141-KJ9-750

$18.64

11

INDICATOR, RR. BRAKE

43145-KJ9-750

Unavailable

12

ARM, RR. BRAKE

43410-KG8-000

Unavailable

13

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.74

14

SPRING, BRAKE SHOE

45133-028-000

$2.03

15

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

16

SWINGARM ASSY., RR. | Use up to Frame SN HK204448 This part replaces 52000-KV7-670.

52000-KV7-671

Unavailable

16

SWINGARM ASSY., RR.

52000-KV7-671

Unavailable

17

BOLT, STUD (8X22)

90110-KG8-900

Unavailable

18

NUT, U (14MM)

90305-GE8-003

$3.86

19

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

19

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

20

BEARING, RADIAL BALL (6302)

91051-KN7-671

Unavailable

21

SEAL (22X42X5)

91259-KN7-671

Unavailable

22

CIRCLIP (INNER) (42MM)

94524-42000

Unavailable

23

JOINT B, BRAKE ARM

95015-32001

$1.49

24

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

25

BOLT, FLANGE (6X30) This part replaces 95700-06030-00.

95701-06030-00

$1.89

25

BOLT, FLANGE (6X30)

95701-06030-00

$1.89
