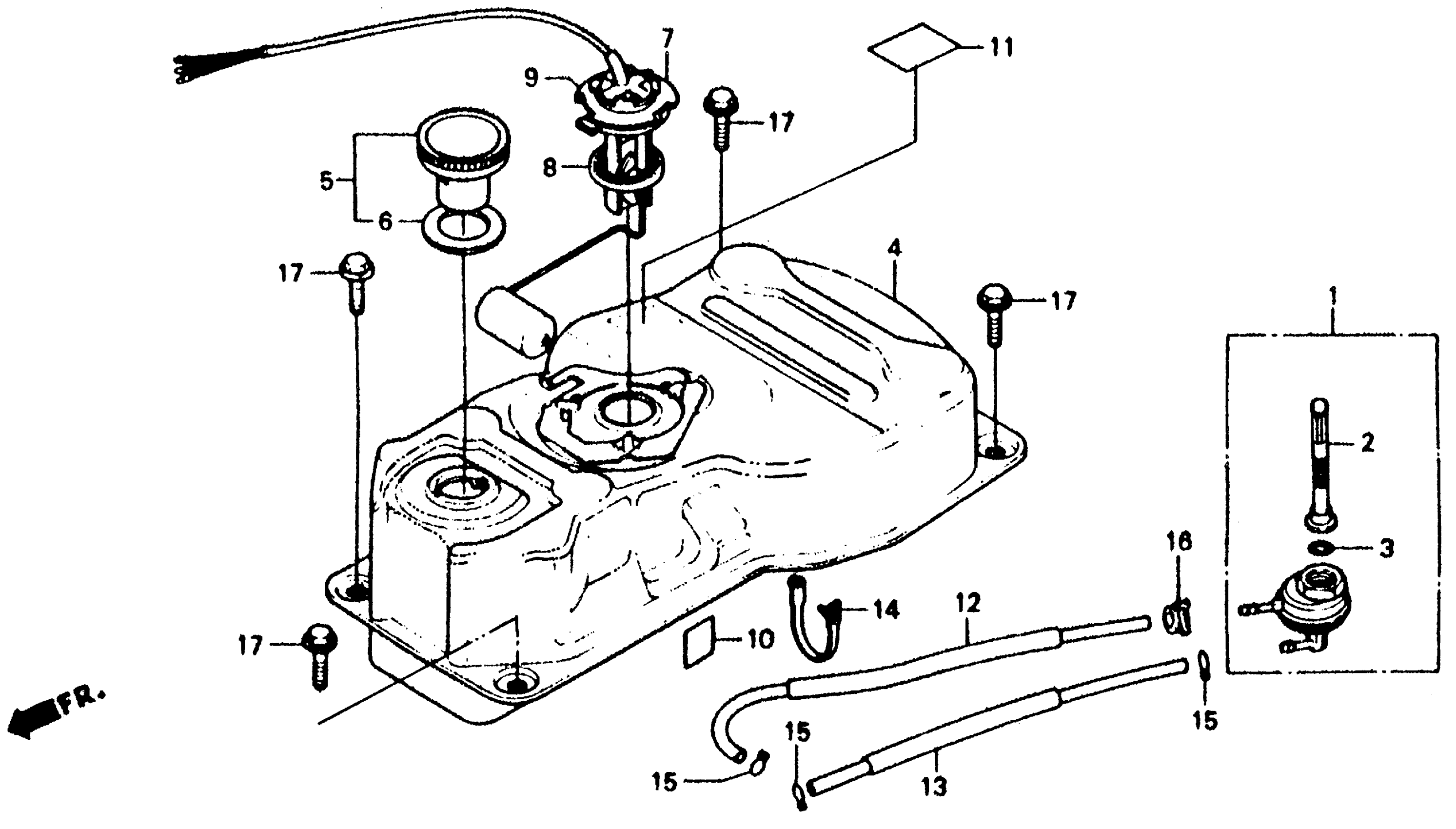

Honda CH150AC (87) ELITE 150, JPN, VIN# JH2KF011-HK200001 TO JH2KF011-HK205608 FUEL TANK 87 Diagram

PETCOCK ASSY., AUTO This part replaces 16950-KJ9-751.

16950-KJ9-752

$57.98

PETCOCK ASSY., AUTO

16950-KJ9-752

$57.98

SCREEN SET, FUEL STRAINER

16952-GM8-305

$19.69

SCREEN SET, FUEL STRAINER This part replaces 16952-KJ9-751.

16952-GM8-305

$19.69

O-RING

16958-397-771

$5.30

TANK, FUEL (NOT AVAILABLE)

17500-KV7-760

Unavailable

CAP, FUEL FILLER

17620-GE1-871

Unavailable

CAP, FUEL FILLER This part replaces 17620-KJ9-870.

17620-GE1-871

Unavailable

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

FUEL UNIT

37800-KJ9-751

Unavailable

GASKET, BASE

37801-GA7-700

$5.17

RETAINER, FUEL UNIT

37802-GA7-700

$5.17

DIAGRAM, VACUUM HOSE ROUTING

87135-KV7-760

Unavailable

MARK, ACCESSORIES & LOADING CAUTION

87512-KV7-670

Unavailable

TUBE, FUEL

90050-KN7-670

Unavailable

TUBE, VACUUM

90051-KJ9-750

Unavailable

STRAP C, CABLE | Use from Frame SN HK202709

90668-GA7-003

Unavailable

STRAP B, CABLE (125MM) (BLUE) | Use up to Frame SN HK202708

90669-671-003

Unavailable

CLIP, TUBE (B8)

95002-02080

$1.80

CLAMP, TUBE (D8)

95002-40800-08

$2.25

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
