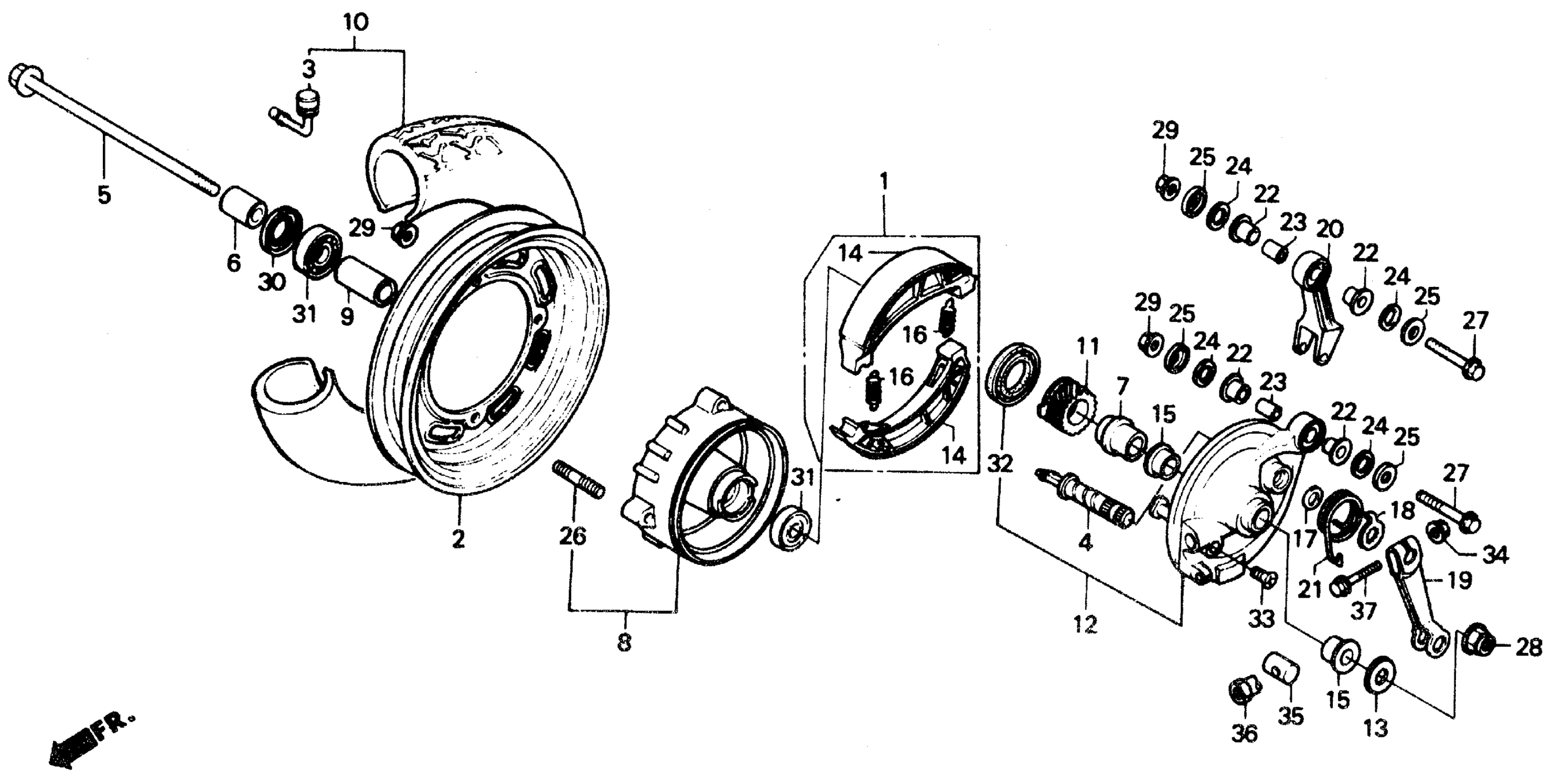

Honda CH150AC (87) ELITE 150, JPN, VIN# JH2KF011-HK200001 TO JH2KF011-HK205608 FRONT WHEEL 87 Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A2-096-305.

06450-178-932

$24.89

1

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

1

SHOE SET, BRAKE (JB) This part replaces 06450-096-651.

06450-178-932

$24.89

2

RIM, WHEEL *NH35M* (CLOUD SILVER METALLIC) This part replaces 42705-KV7-670ZA.

42705-KV7-671ZA

Unavailable

2

RIM, WHEEL *NH35M* (CLOUD SILVER METALLIC)

42705-KV7-671ZA

Unavailable

3

VALVE, RIM (BS)

42753-KJ9-003

$17.49

3

VALVE, RIM (DUNLOP)

42753-KJ9-004

$16.69

3

VALVE, RIM (IRC)

42753-KJ9-005

$16.50

4

CAM, RR. BRAKE

43141-GC5-000

Unavailable

5

AXLE, FR. WHEEL

44301-GG2-000

Unavailable

6

COLLAR, FR. WHEEL SIDE

44311-KV7-670

Unavailable

7

COLLAR A, FR. BRAKE PANEL

44312-GM9-000

Unavailable

8

HUB SUB, FR. WHEEL *NH35M* (CLOUD SILVER METALLIC)

44610-KV7-670ZA

Unavailable

9

COLLAR, FR. AXLE DISTANCE

44620-GC8-000

Unavailable

10

TIRE ASSY., FR. (3.50-10) (4PR/51J ML9) (BS)

44710-KJ9-751

Unavailable

10

TIRE ASSY., FR. (3.50-10) (4PR F11) (DUNLOP) (NOT AVAILABLE)

44710-KN7-672

Unavailable

11

GEAR, SPEEDOMETER | Use up to Frame SN HK202708

44804-KM1-671

$22.16

11

GEAR, SPEEDOMETER | Use from Frame SN HK202709

44804-KV7-671

Unavailable

12

PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC) This part replaces 45010-KV7-305ZA.

45010-KV7-315ZA

Unavailable

12

PANEL SUB, FR. BRAKE *NH35M* (CLOUD SILVER METALLIC)

45010-KV7-315ZA

Unavailable

13

DUST SEAL

45104-GM9-003

Unavailable

14

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

14

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

14

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

14

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-968-681

Unavailable

15

BUSH, FR. BRAKE CALIPER

45131-GM9-710

Unavailable

16

SPRING, BRAKE SHOE

45133-028-000

$2.03

17

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

18

INDICATOR, FR. BRAKE

45145-KB7-000

Unavailable

19

ARM, FR. BRAKE (NOT AVAILABLE)

45410-098-860

Unavailable

20

LINK, FR. BRAKE TORQUE

45432-KV7-670

Unavailable

21

SPRING, BRAKE ARM

45435-GM9-000

Unavailable

22

BUSH, TORQUE LINK

51312-KV7-671

Unavailable

23

COLLAR, TORQUE LINK DISTANCE

51334-KV7-670

Unavailable

24

DUST SEAL, FR. FORK (LOWER)

51335-001-000

$2.11

25

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

26

BOLT, STUD (8X22)

90110-KG8-900

Unavailable

27

BOLT, FLANGE (8X37) This part replaces 90118-GM9-740.

90118-GM9-741

Unavailable

27

BOLT, FLANGE (8X37)

90118-GM9-741

Unavailable

28

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

29

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

29

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

30

DUST SEAL (20X32X5) (NOK) This part replaces 90754-GC8-003.

90754-GC8-005

$5.05

30

DUST SEAL (20X32X5) (NOK)

90754-GC8-005

$5.05

31

BEARING, RADIAL BALL (6201U) (NTN CORP.)

90912-GC8-003

$23.60

31

BEARING, RADIAL BALL (6201U) (NTN) This part replaces 90912-GC8-004.

90912-GC8-003

$23.60

31

BEARING, RADIAL BALL (6201U) (NSK)

90912-GC8-005

$23.95

32

OIL SEAL (41X51X5)

91251-GE1-003

Unavailable

33

SCREW, OVAL (5X18)

93700-05018-0A

$1.49

34

NUT, FLANGE (6MM)

94050-06080

$1.49

35

JOINT B, BRAKE ARM

95015-32001

$1.49

36

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

37

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

37

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
