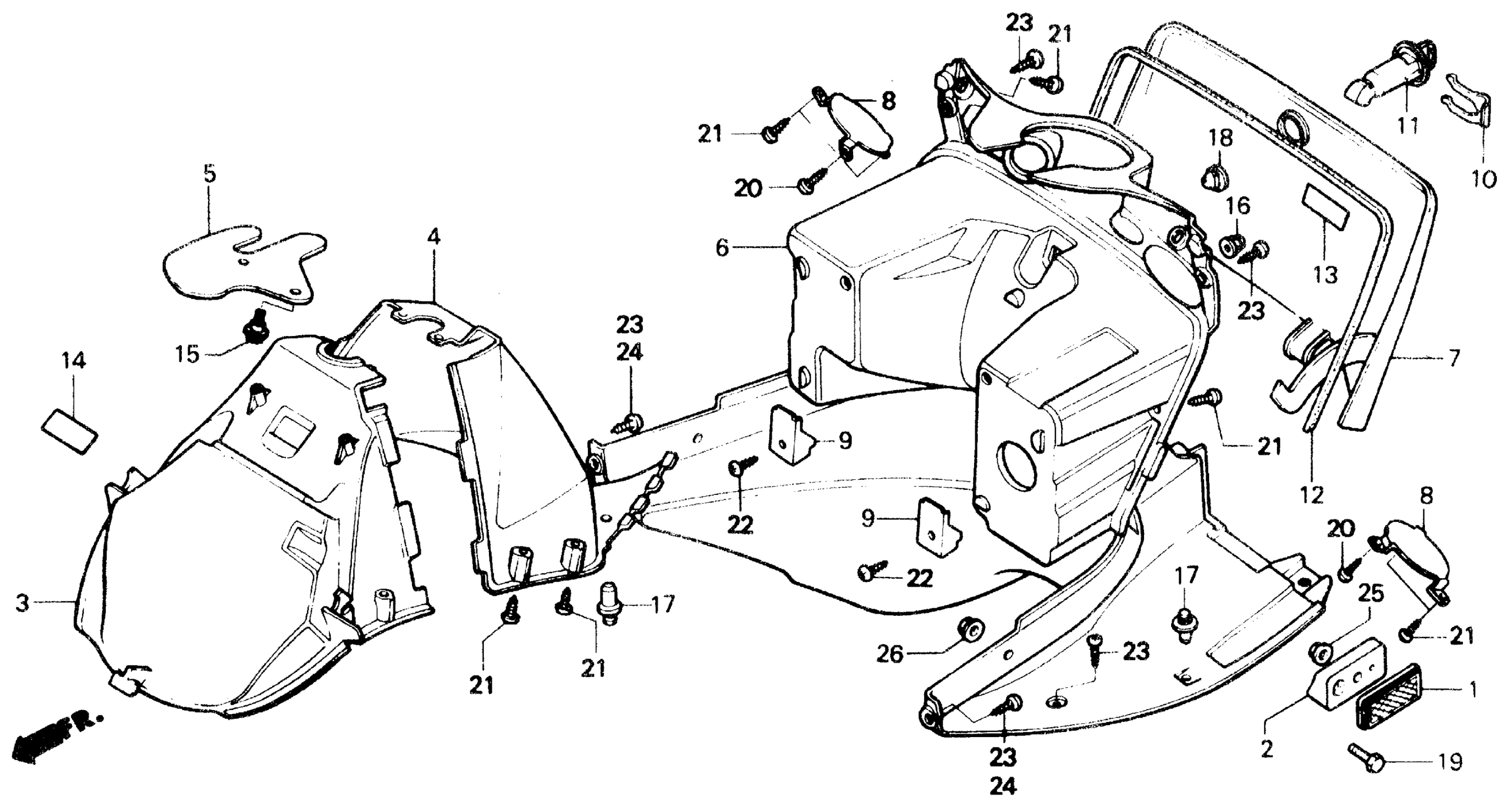

Honda CH150AC (87) ELITE 150, JPN, VIN# JH2KF011-HK200001 TO JH2KF011-HK205608 FRONT FENDER 87 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-ME9-672.

33741-ME9-673

$17.74

1

REFLECTOR, FR. REFLEX

33741-ME9-673

$17.74

2

BASE, FR. REFLECTOR *NH1* (BLACK)

33745-KV7-670ZA

Unavailable

3

FENDER A, FR. (INNER) *R153P* (PEARL GLEAM RED)

61100-KV7-670ZA

Unavailable

3

FENDER A, FR. (INNER) *NH198P* (PEARL SEASHELL WHITE)

61100-KV7-670ZB

Unavailable

4

FENDER B, FR. (INNER) *R155R* (GRAPE RED) This part replaces 61101-KV7-670ZA.

61101-KV7-670ZG

Unavailable

4

FENDER B *NH199R* This part replaces 61101-KV7-670ZB.

61101-KV7-670ZF

Unavailable

4

FENDER B, FR. (INNER) *R155R* (GRAPE RED)

61101-KV7-670ZG

Unavailable

5

SPLASH GUARD, FR.

61105-KV7-670

Unavailable

6

SHIELD, LEG *NH154* (TASMAN GRAY) (NOT AVAILABLE)

64304-KV7-670ZA

Unavailable

7

LID, BOX (INNER) *NH154R* (TASMAN GRAY) This part replaces 64308-KV7-670ZA.

64308-KV7-670ZD

Unavailable

7

LID, BOX (INNER) *NH154R* (TASMAN GRAY)

64308-KV7-670ZD

Unavailable

8

COVER, SPLIT

64309-KV7-670

Unavailable

9

COVER, LID HINGE

64311-KV7-670

Unavailable

10

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

11

LOCK, SIDE BOX

77239-GN2-970

$37.67

12

SEAL, BOX (INNER)

81204-KV7-670

Unavailable

13

LABEL, GLOVE BOX CAPACITY (TYPEW)

81218-KS4-770ZA

Unavailable

14

LABEL, RADIATOR

87508-KV7-670

Unavailable

15

SCREW, TAPPING (5X14)

90101-GR0-000

Unavailable

16

NUT, CAP (6MM)

90201-428-900

$2.23

16

NUT, CAP This part replaces 90215-GM0-000.

90201-428-900

$2.23

17

CLIP, BODY COVER

90683-GR1-003

$2.92

18

PLUG, HOLE

90852-446-630

$2.56

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

20

SCREW, TAPPING (4X8)

93903-34180

$1.49

21

SCREW, TAPPING (4X12)

93903-34380

$2.18

22

SCREW, TAPPING (4X16)

93903-34480

$1.49

23

SCREW, TAPPING (5X16) | Use up to Frame SN HK202708

93903-45380

$1.49

23

SCREW, TAPPING (5X16) | Use from Frame SN HK202709

93903-45380

$1.49

24

SCREW, TAPPING (5X25) | Use from Frame SN HK202709

93903-45580

$1.49

25

NUT, FLANGE (5MM)

94050-05000

$1.49

26

NUT, FLANGE (6MM)

94050-06080

$1.49
