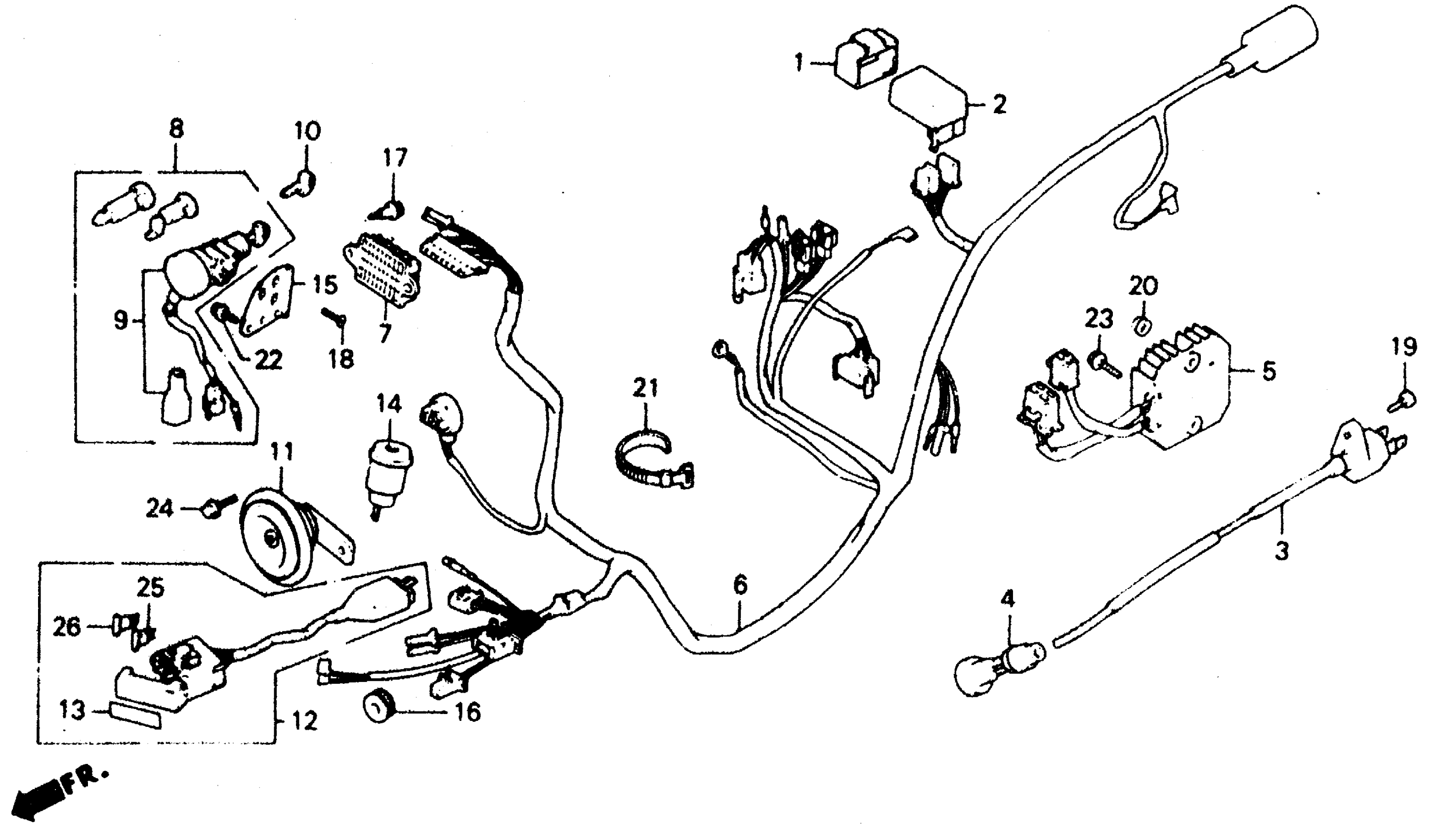

Honda CH150AC (87) ELITE 150, JPN, VIN# JH2KF011-HK200001 TO JH2KF011-HK205608 CH150 WIRE HARNESS 87 Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-KF0-000.

30401-KF0-010

$6.31

2

MODULE, IGNITION CONTROL (CDI)

30410-KN7-670

Unavailable

3

COIL, IGNITION This part replaces 30510-GN3-700.

30510-GR2-405

$74.70

3

COIL, IGNITION

30510-GR2-405

$74.70

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KN7-670.

30700-KN7-671

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR

30700-KN7-671

Unavailable

5

RECTIFIER ASSY., REGULATOR

31600-KV8-681

Unavailable

5

RECTIFIER ASSY., REGULATOR This part replaces 31600-413-008.

31600-KV8-681

Unavailable

6

WIRE HARNESS

32100-KV7-670

Unavailable

7

MULTI-CONNECTOR, MALE (15X5)

32150-GE8-601

Unavailable

8

LOCK SET (NOT AVAILABLE)

35010-KV7-670

Unavailable

9

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE) | Use up to Frame SN HK203428 This part replaces 35100-KV7-670.

35100-KV7-671

Unavailable

9

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE) | Use from Frame SN HK203429

35100-KV7-671

Unavailable

10

KEY, BLANK (TYPE1) | (Optional). This part replaces 35121-KG8-900.

35121-KAB-812

Unavailable

10

KEY, BLANK (TYPE2) | (Optional).

35122-KAB-812

Unavailable

10

KEY, BLANK (TYPE2) | (Optional). This part replaces 35122-KG8-900.

35122-KAB-812

Unavailable

11

HORN (HIGH) This part replaces 38110-KM1-008.

38110-KM1-018

$75.38

11

HORN (HIGH)

38110-KM1-018

$75.38

12

BOX ASSY., FUSE

38200-KV7-670

Unavailable

13

LABEL, FUSE

38215-KV7-670

Unavailable

14

RELAY, TURN SIGNAL This part replaces 38301-KM1-831.

38301-KM1-832

Unavailable

14

RELAY, TURN SIGNAL

38301-KM1-832

Unavailable

15

STAY, HANDLE LOCK

53128-KJ9-000

Unavailable

16

GROMMET, BOX (INNER)

64407-KM1-000

Unavailable

17

BOLT, FLANGE (6MM)

90111-162-000

$2.89

18

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

19

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

19

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

19

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

20

NUT, FLANGE (6MM)

94050-06080

$1.49

21

BAND B3, CABLE HARNESS

95014-62300

$2.25

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

23

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

24

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

24

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

25

FUSE, BLADE (5A)

98200-30500

$1.49

26

FUSE, BLADE (10A)

98200-31000

$1.49
