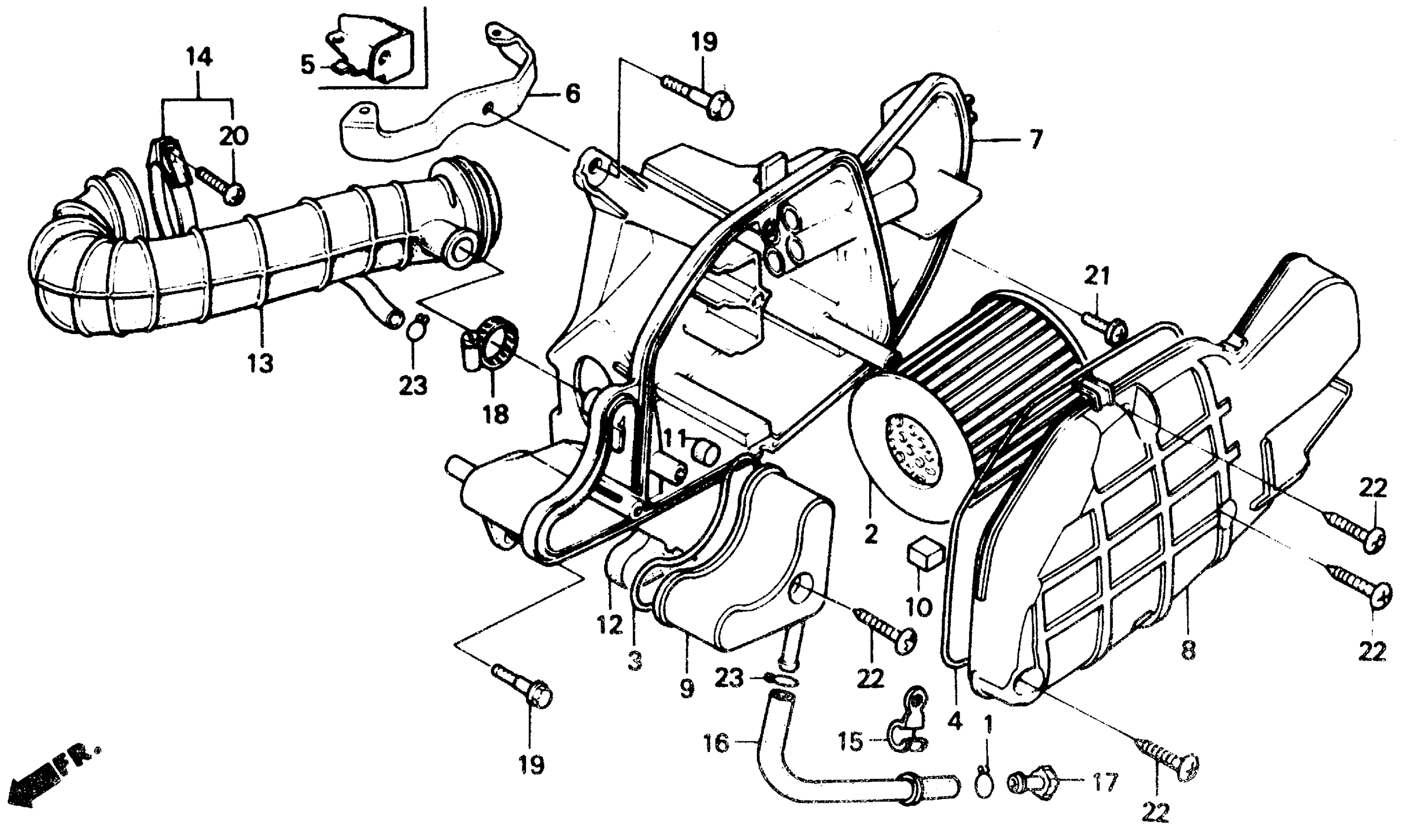

Honda CH150AC (87) ELITE 150, JPN, VIN# JH2KF011-HK200001 TO JH2KF011-HK205608 AIR CLEANER 87 Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE | Use up to Frame SN HK200009

15707-634-000

$5.13

1

CLIP, BREATHER TUBE | Use from Frame SN HK200010

17371-174-670

$2.20

2

ELEMENT, AIR CLEANER This part replaces 17211-KV7-670.

17211-KV8-000

Unavailable

2

ELEMENT, AIR CLEANER

17211-KV8-000

Unavailable

3

SEAL, AIR CLEANER COVER This part replaces 17213-KV7-670.

17222-MN4-405

$7.31

3

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

3

SEAL, AIR CLEANER COVER This part replaces 17226-ME8-000.

17222-MN4-405

$7.31

3

SEAL, AIR CLEANER COVER This part replaces 17233-356-000.

17222-MN4-405

$7.31

4

SEAL, AIR CLEANER COVER

17214-KV7-670

Unavailable

5

STAY A, AIR CLEANER HOUSING | Use up to Frame SN HK202708

17228-KS4-000

Unavailable

6

STAY, AIR CLEANER | Use from Frame SN HK202709

17228-KV7-670

Unavailable

7

HOUSING, AIR CLEANER

17230-KV7-670

Unavailable

8

COVER, AIR CLEANER HOUSING

17231-KV7-760

Unavailable

9

COVER, OIL CATCH This part replaces 17232-KV7-670.

17232-KV7-671

Unavailable

9

COVER, OIL CATCH

17232-KV7-671

Unavailable

10

ELEMENT, DRAIN

17233-KV7-670

$3.56

11

FILTER, BREATHER

17234-KV7-670

Unavailable

12

FILTER, OIL CATCH | Use from Frame SN HK200010

17235-KV7-670

Unavailable

13

TUBE, AIR CLEANER CONNECTING

17253-KV7-670

Unavailable

14

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-KV7-670.

95018-56200

$9.55

14

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

14

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

15

CLAMP, DRAIN TUBE

17360-KV7-670

Unavailable

16

TUBE, DRAIN (8X12X190)

17365-KV7-670

Unavailable

17

PLUG, BREATHER TUBE

17370-419-700

$3.74

18

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

18

CLAMP, WATER HOSE (25MM) This part replaces 19507-KA3-830.

19504-KY1-003

$10.29

19

BOLT, FLANGE (6MM)

90111-162-000

$2.89

20

SCREW, PAN (4X20)

93500-04020-0G

$1.49

21

SCREW-WASHER (5X10)

93891-05010-00

$1.49

22

SCREW, TAPPING (5X25)

93903-35580

$1.49

23

CLIP, TUBE (C12)

95002-80000

$1.49
