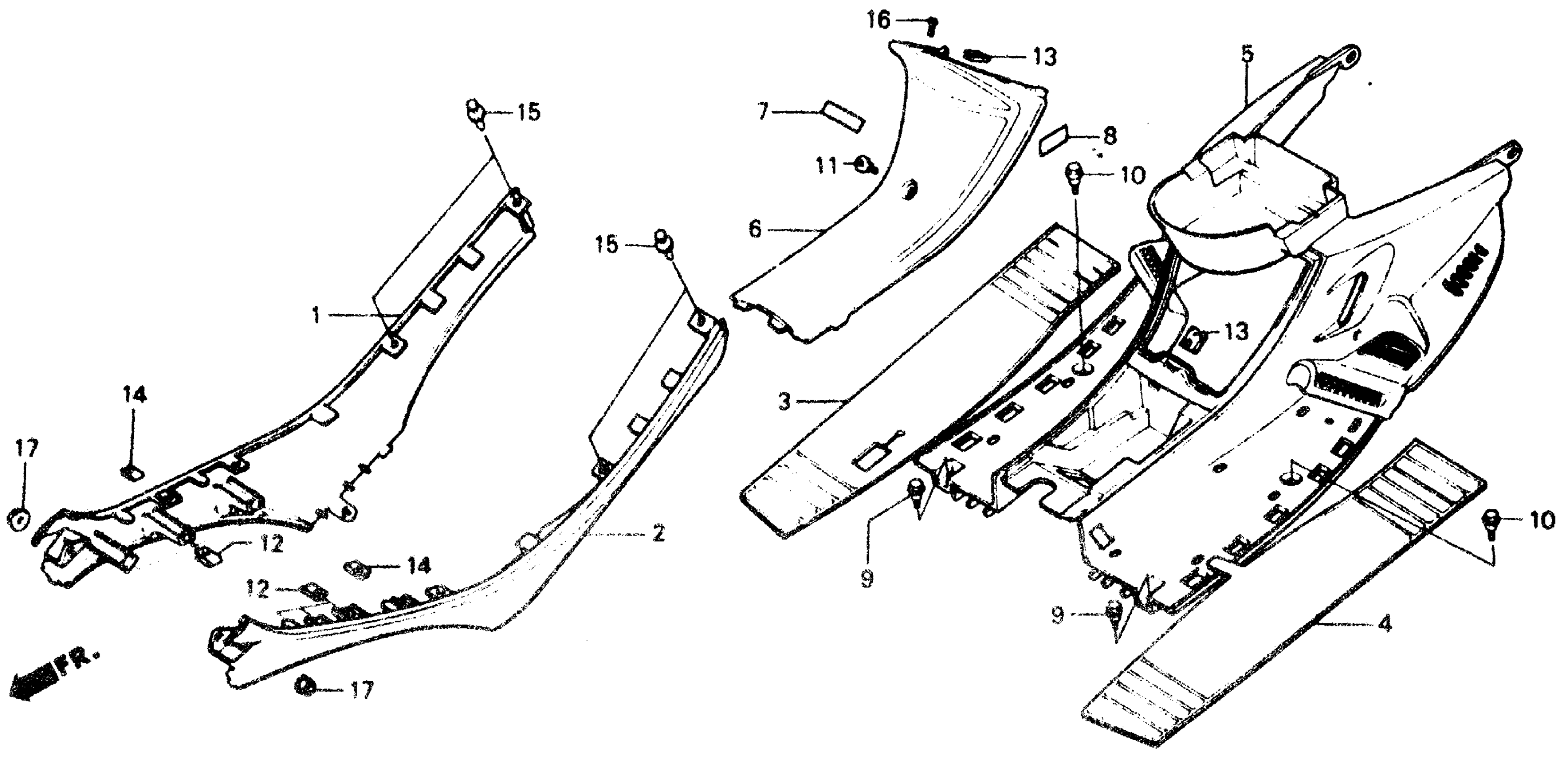

Honda CH150A (87) ELITE 150, JPN, VIN# JH2KF010-HK200018 TO JH2KF010-HK212639 SIDE SKIRT 87 Diagram

SKIRT, R. SIDE *R153P* (PEARL GLEAM RED)

64305-KV7-670ZA

Unavailable

SKIRT, R. SIDE *NH198P* (PEARL SEASHELL WHITE)

64305-KV7-670ZB

Unavailable

SKIRT, L. SIDE *R153P* (PEARL GLEAM RED)

64306-KV7-670ZA

Unavailable

SKIRT, L. SIDE *NH198P* (PEARL SEASHELL WHITE)

64306-KV7-670ZB

Unavailable

FLOOR MAT, R.

64315-KV7-670

Unavailable

FLOOR MAT, L.

64316-KV7-670

Unavailable

CVR, CENTER *NH154R* This part replaces 80151-KV7-670ZA.

80151-KV7-670ZF

Unavailable

CVR, CENTER *NH154R* This part replaces 80151-KV7-670ZE.

80151-KV7-670ZF

Unavailable

COVER, CARBURETOR MAINTENANCE *NH154R* (TASMAN GRAY) This part replaces 80152-KV7-670ZA.

80152-KV7-670ZD

Unavailable

COVER, CARBURETOR MAINTENANCE *NH154R* (TASMAN GRAY)

80152-KV7-670ZD

Unavailable

MARK, TIRE CAUTION

87505-KV7-670

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

BOLT, FLANGE (6MM)

90111-147-000

$2.75

BOLT, FLANGE (6MM)

90111-162-000

$2.89

SCREW, FAIRING SETTING

90112-MC7-000

$6.48

NUT, SPRING (4MM)

90302-SA4-003

$5.44

NUT, CLIP (6MM)

90305-GK8-000

$2.39

NUT, SUSPENSION (5MM)

90308-SB2-013

$8.57

CLIP, BODY COVER

90683-GR1-003

$2.92

SCREW, PAN (6X12)

93500-06012-0G

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49
