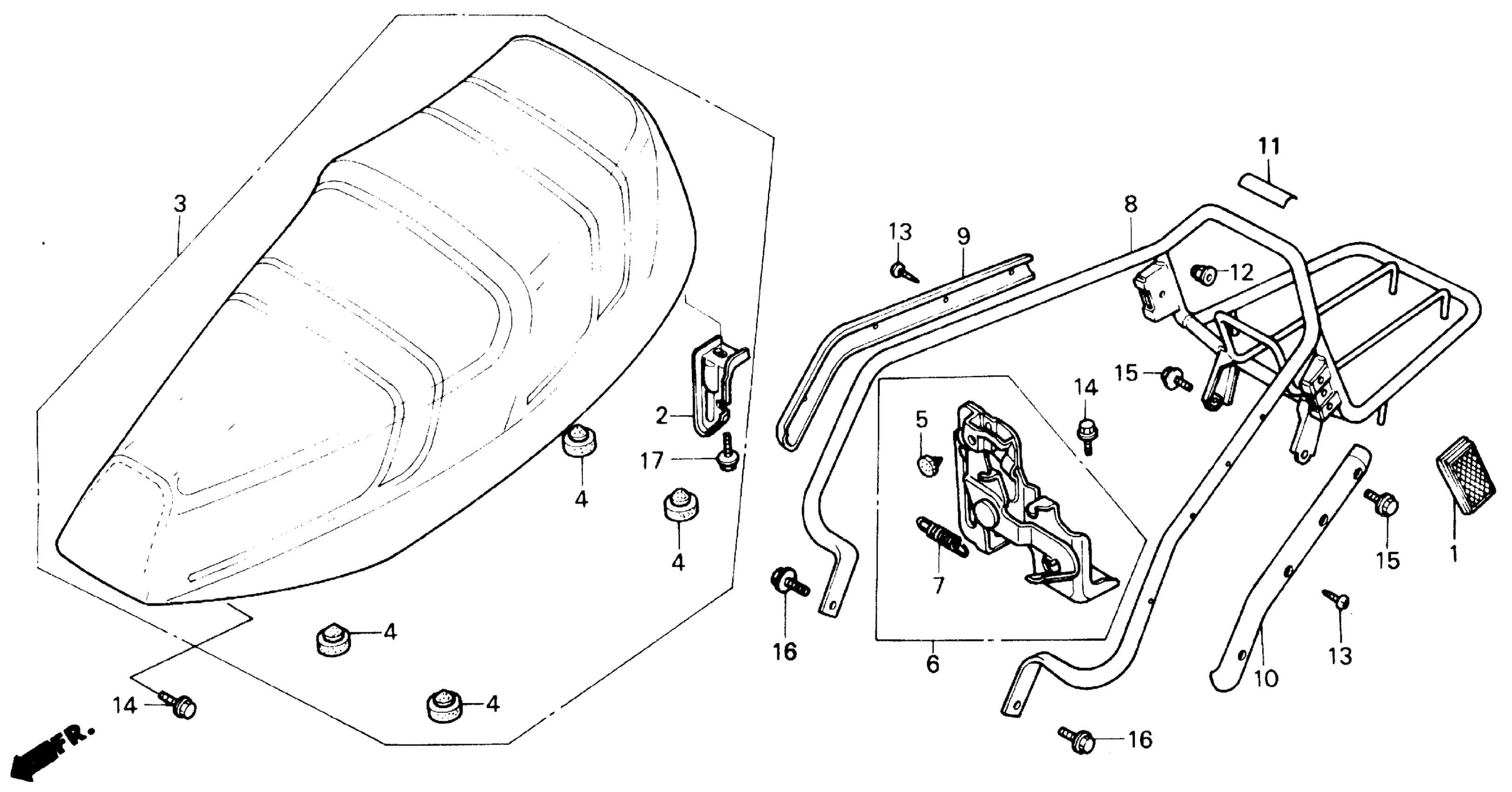

Honda CH150A (87) ELITE 150, JPN, VIN# JH2KF010-HK200018 TO JH2KF010-HK212639 SEAT 87 Diagram

REFLECTOR, REFLEX

33741-GK8-672

Unavailable

HOOK, SEAT LOCK

77102-KV7-670

Unavailable

SEAT ASSY.

77200-KV7-670

Unavailable

RUBBER, SEAT SETTING

77206-KG8-000

$6.31

GROMMET, SEAT LOCK BASE

77218-KV7-670

Unavailable

LOCK, SEAT

77220-KV7-670

Unavailable

SPRING, SEAT LOCK

77234-GN2-000

$3.92

CARRIER, LUGGAGE

81200-KV7-670

Unavailable

GRIP, R. CARRIER

81205-KV7-670

Unavailable

GRIP, L. CARRIER

81206-KV7-670

Unavailable

LABEL, RR. CARRIER WARNING *NH0* (CHAMPIONSHIP WHITE)

81220-GN2-660ZA

Unavailable

NUT, FLANGE CAP (5MM)

90106-MB9-871

$2.86

SCREW, TAPPING (3X8)

93903-22180

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X12) This part replaces 95801-06012-08.

95701-06012-08

$1.67
