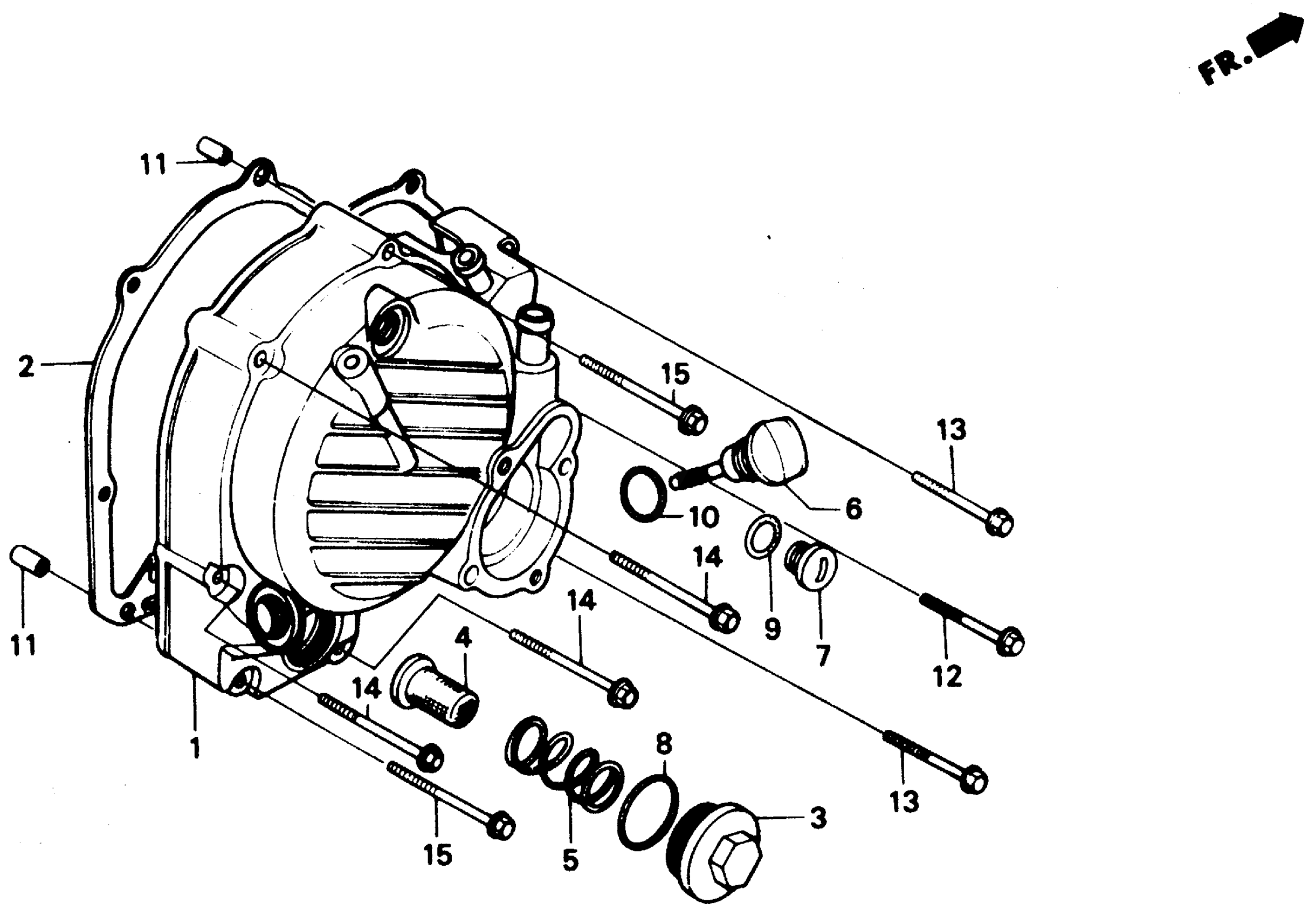

Honda CH150A (87) ELITE 150, JPN, VIN# JH2KF010-HK200018 TO JH2KF010-HK212639 RIGHT CRANKCASE COVER Diagram

COVER, R. | Use up to Engine SN 5206280 This part replaces 11330-KN7-671.

11330-KN7-672

Unavailable

COVER, R.

11330-KN7-672

Unavailable

GASKET, R. COVER

11394-KN7-306

Unavailable

GASKET, R. COVER This part replaces 11394-KN7-670.

11394-KN7-306

Unavailable

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-KK0-000.

12361-HP5-600

$18.50

SCREEN, OIL FILTER

15421-107-000

$6.31

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

DIPSTICK, OIL | Use up to Engine SN 5209217 This part replaces 15651-KN7-672.

15651-KN7-673

$12.84

DIPSTICK, OIL

15651-KN7-673

$12.84

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

CAP, ALTERNATOR

90084-471-000

Unavailable

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (18X3)

91307-035-000

$2.92

PIN A, DOWEL (10X14)

94301-10140

$2.28

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

BOLT, FLANGE (6X60)

96001-06060-00

$2.06
