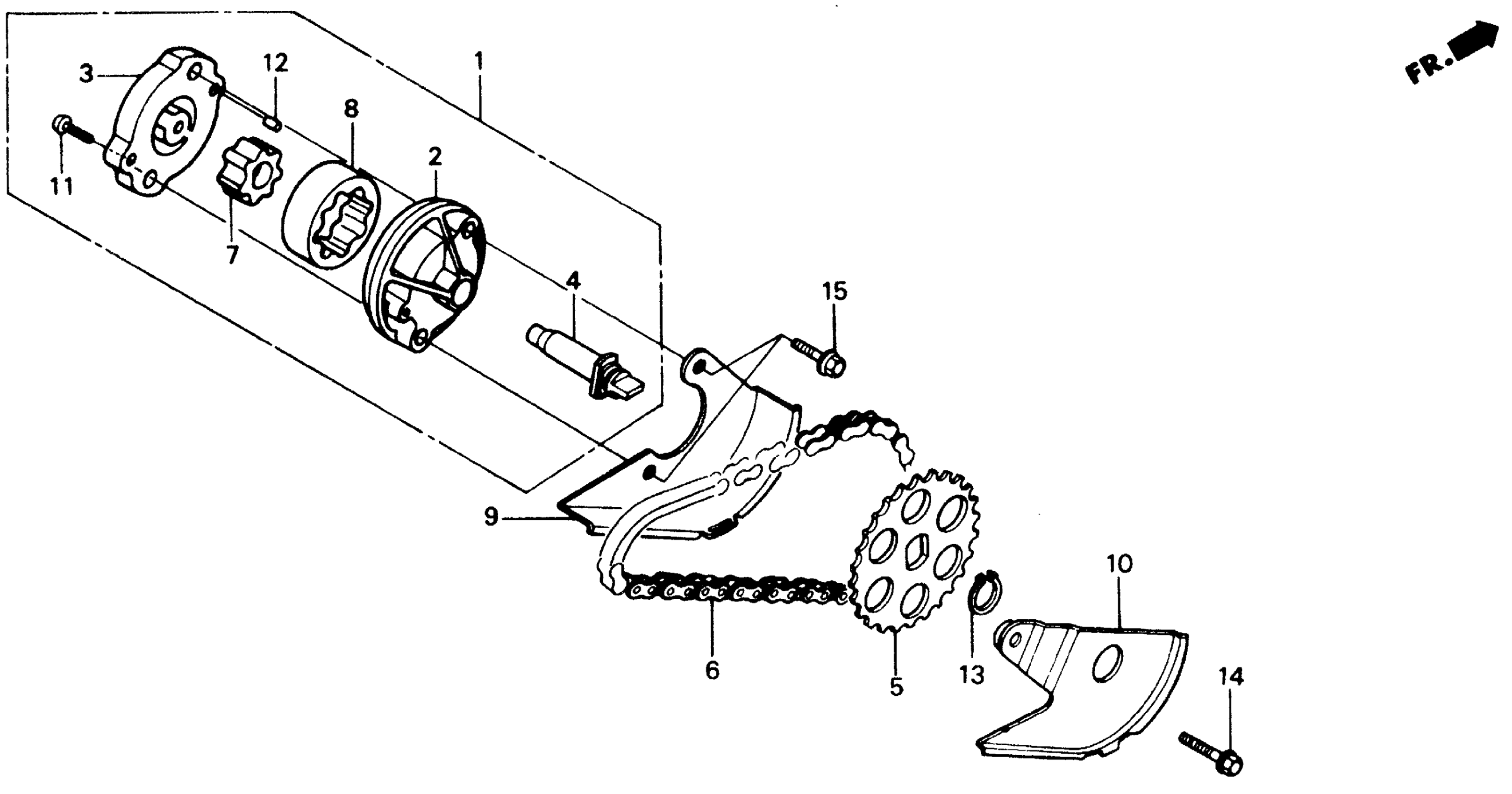

Honda CH150A (87) ELITE 150, JPN, VIN# JH2KF010-HK200018 TO JH2KF010-HK212639 OIL PUMP Diagram

PUMP ASSY., OIL

15100-KJ9-000

Unavailable

BODY, OIL PUMP

15101-KJ9-000

Unavailable

PLATE, OIL PUMP

15116-KJ9-000

Unavailable

SHAFT, OIL PUMP

15132-KJ9-000

Unavailable

SPROCKET, OIL PUMP DRIVEN (25T)

15133-KM1-000

$25.07

CHAIN, OIL PUMP

15141-KJ9-003

Unavailable

ROTOR, OIL PUMP (INNER) (YAMADA)

15331-921-003

Unavailable

ROTOR, OIL PUMP (OUTER) (YAMADA)

15332-921-003

Unavailable

SEPARATOR A, OIL

15711-KJ9-000

$16.93

SEPARATOR B, OIL

15712-KJ9-010

Unavailable

SCREW, PAN (3X12)

93500-03012-0A

$1.49

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

CIRCLIP, OUTER (10MM)

94510-10000

$1.49

BOLT, FLANGE (6X14) | Use up to Engine SN 5209877 This part replaces 96000-06014-00.

96001-06014-00

$1.72

BOLT, FLANGE (6X14) | Use up to Engine SN 5209877

96001-06014-00

$1.72

BOLT, FLANGE (6X12) | Use from Engine SN 5209878 This part replaces 96000-06012-00.

96001-06012-00

$1.80

BOLT, FLANGE (6X12) | Use from Engine SN 5209878

96001-06012-00

$1.80

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
