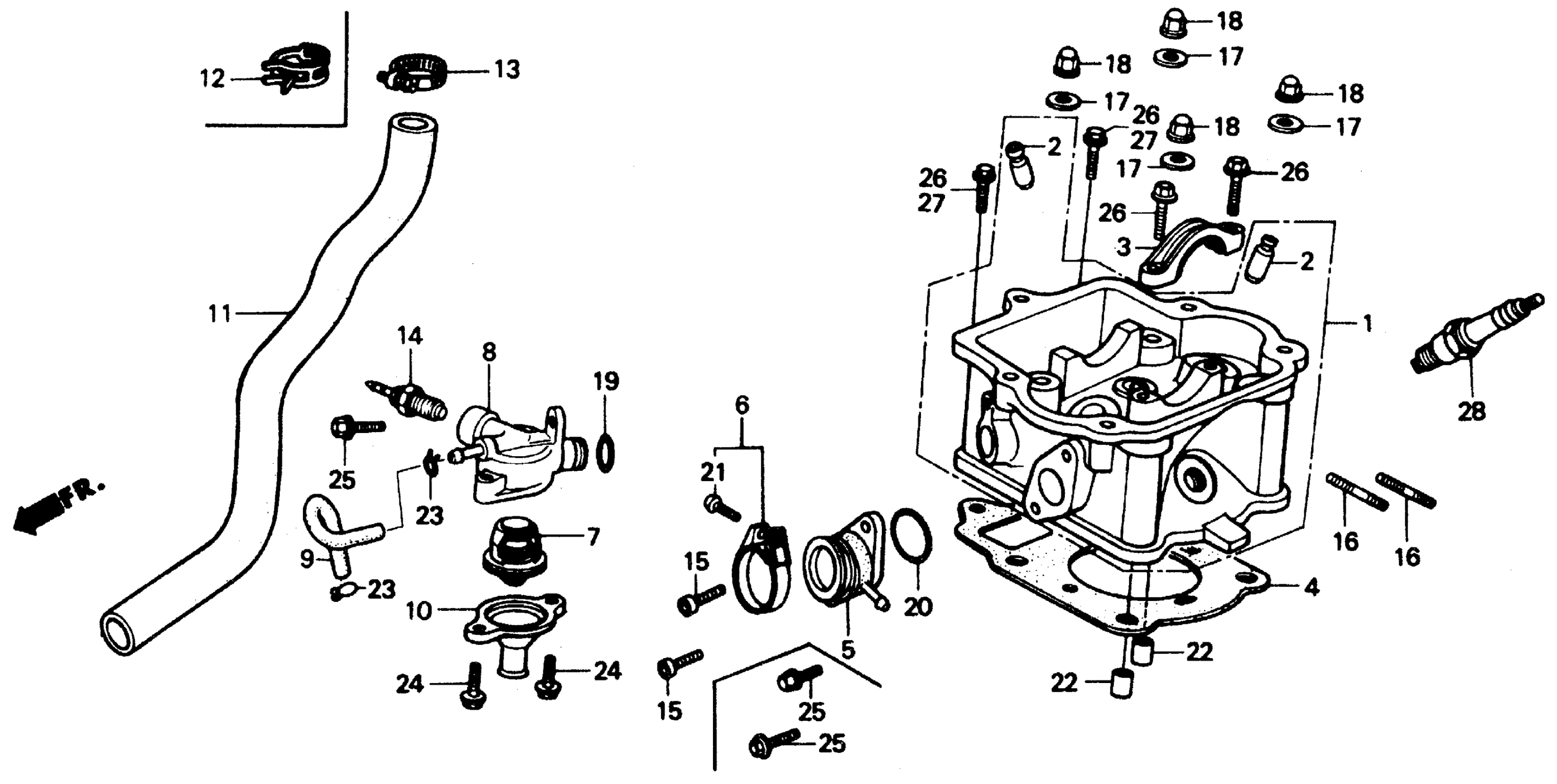

Honda CH150A (87) ELITE 150, JPN, VIN# JH2KF010-HK200018 TO JH2KF010-HK212639 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD This part replaces 12200-KV7-670.

12200-KV7-671

Unavailable

1

CYLINDER HEAD

12200-KV7-671

Unavailable

2

GUIDE, VALVE (OS)

12204-KE7-305

Unavailable

2

GUIDE, VALVE (OS) This part replaces 12204-KE8-305.

12204-KE7-305

Unavailable

3

HOLDER, CAM

12211-KJ9-000

Unavailable

4

GASKET, CYLINDER HEAD

12251-KV7-670

Unavailable

5

INSULATOR, CARBURETOR | Use up to Engine SN 5206280 This part replaces 16210-KN7-672.

16220-KN7-305

Unavailable

5

INSULATOR, CARBURETOR | Use up to Engine SN 5209877 This part replaces 16210-KN7-673.

16220-KN7-305

Unavailable

5

INSULATOR, CARBURETOR | Use up to Engine SN 5209877

16220-KN7-305

Unavailable

5

INSULATOR, CARBURETOR | Use from Engine SN 5209878

16210-KN7-674

Unavailable

6

BAND, INSULATOR (NOT AVAILABLE) This part replaces 17255-KJ9-010.

16217-KV7-670

Unavailable

6

BAND, INSULATOR (NOT AVAILABLE) | Use up to Engine SN 5209877

16217-KV7-670

Unavailable

6

BAND, INSULATOR | Use from Engine SN 5209878

16217-KV7-671

Unavailable

7

THERMOSTAT ASSY.

19300-KM1-003

$64.58

8

CASE, THERMOSTAT

19310-KM1-000

Unavailable

9

TUBE, THERMOSTAT

19313-KM1-000

$5.43

10

COVER, THERMOSTAT

19315-KJ9-000

Unavailable

11

HOSE C, WATER

19503-KV7-670

Unavailable

12

CLAMP A, WATER HOSE

19505-KS6-700

$11.06

14

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

15

BOLT, SOCKET (6X18) | Use from Engine SN 5215304

90004-KV8-000

Unavailable

16

BOLT, STUD SPECIAL This part replaces 90033-KN7-670.

90033-KN7-671

Unavailable

16

BOLT, STUD SPECIAL

90033-KN7-671

Unavailable

17

WASHER, SEALING (8MM)

90441-469-000

$5.28

18

NUT, CAP (8MM)

90443-107-000

$2.89

19

O-RING (13.8X1.9) | Use up to Engine SN 5200077 This part replaces 91301-KJ9-000.

91301-PC0-003

$2.66

19

O-RING (13.8X1.9) | Use up to Engine SN 5200077

91301-PC0-003

$2.66

19

O-RING (14.8X1.9) | Use from Engine SN 5200078 to 5211956 This part replaces 91301-KV7-670.

91307-PJ4-000

$3.47

19

O-RING (14.8X1.9) | Use from Engine SN 5200078 This part replaces 91301-KV7-671.

91307-PJ4-000

$3.47

19

O-RING (14.8X1.9) | Use from Engine SN 5200078

91307-PJ4-000

$3.47

20

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

20

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

21

SCREW, PAN (5X22) | Use from Engine SN 5209878

93500-05022-0A

$1.49

21

SCREW, PAN (5X22) | Use up to Engine SN 5209877

93500-05022-0G

$1.49

22

PIN A, DOWEL (10X14)

94301-10140

$2.28

23

CLIP, TUBE (B7)

95002-02070

$1.80

24

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

24

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

25

BOLT, FLANGE (6X18) | Use up to Engine SN 5215303 This part replaces 96000-06018-00.

96001-06018-00

$1.80

25

BOLT, FLANGE (6X18) | Use from Engine SN 5215304 This part replaces 96000-06018-00.

96001-06018-00

$1.80

25

BOLT, FLANGE (6X18) | Use up to Engine SN 5215303

96001-06018-00

$1.80

25

BOLT, FLANGE (6X18) | Use from Engine SN 5215304

96001-06018-00

$1.80

26

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

26

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

28

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

28

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

28

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

28

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54
