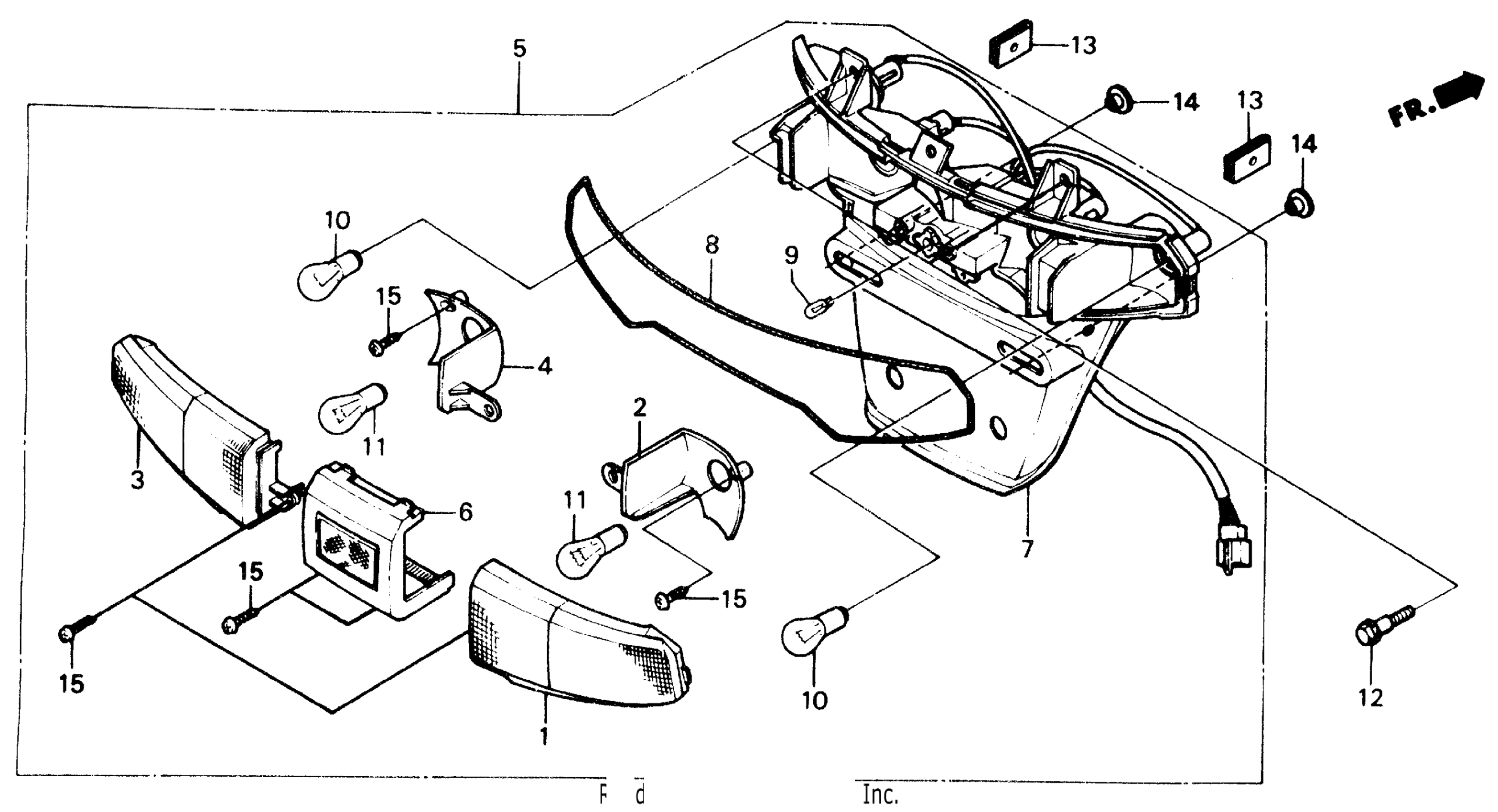

Honda CH150A (87) ELITE 150, JPN, VIN# JH2KF010-HK200018 TO JH2KF010-HK212639 COMBINATION LIGHT 87 Diagram

LENS, R. RR. COMBINATION LIGHT

33602-KV7-671

Unavailable

REFLECTOR, R. RR. COMBINATION LIGHT

33603-KV7-672

Unavailable

LENS, L. RR. COMBINATION LIGHT

33652-KV7-671

Unavailable

REFLECTOR, L. RR. COMBINATION LIGHT

33653-KV7-672

Unavailable

LIGHT ASSY., RR. COMBINATION

33700-KV7-673

Unavailable

LENS, RR. COMBINATION LIGHT DUMMY (NOT AVAILABLE)

33702-KV7-671

Unavailable

BASE, RR. COMBINATION

33704-KV7-672

Unavailable

GASKET, RR. COMBINATION LIGHT

33707-KV7-671

Unavailable

BULB, WEDGE BASE (12V 5W)

34901-671-671

$3.11

BULB (12V 21W) (ECE) (STANLEY) This part replaces 34905-KV7-671.

34908-634-611

$5.88

BULB (12V 21W) (ECE) (STANLEY)

34908-634-611

$5.88

BULB, TAILLIGHT (12V21/5W) (STANLEY)

34906-KV7-671

Unavailable

BOLT, FLANGE (6MM)

90111-147-000

$2.75

NUT, CLIP (6MM)

90344-692-003

$5.55

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

SCREW, TAP (4X14) This part replaces 91508-KV7-671.

90105-ME5-671

Unavailable
