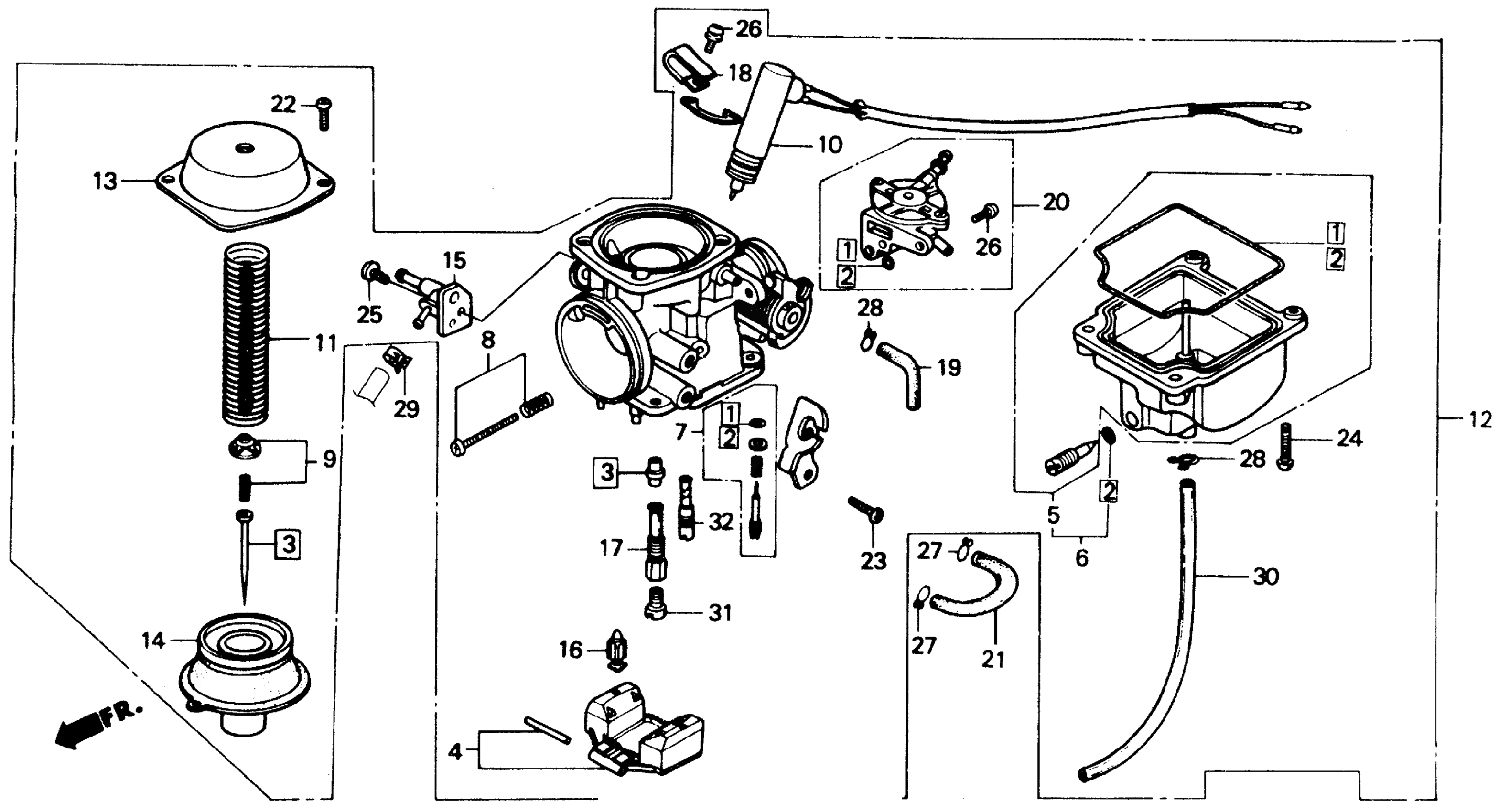

Honda CH150A (87) ELITE 150, JPN, VIN# JH2KF010-HK200018 TO JH2KF010-HK212639 CARBURETOR Diagram

#

Description
Price

2

GASKET SET A This part replaces 16010-KJ9-013.

16010-KS4-305

$43.94

2

GASKET SET A This part replaces 16010-KR0-003.

16010-KS4-305

$43.94

2

GASKET SET A

16010-KS4-305

$43.94

3

NEEDLE SET, JET

16012-KV7-672

Unavailable

4

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

6

CHAMBER SET, FLOAT

16015-KJ9-013

Unavailable

7

SCREW SET A This part replaces 16016-MB0-671.

16016-ME3-003

Unavailable

7

SCREW SET A

16016-ME3-003

Unavailable

7

SCREW SET A This part replaces 16016-ME9-671.

16016-ME3-003

Unavailable

8

SCREW SET B

16028-KJ9-003

Unavailable

9

PLATE SET, VALVE

16037-KN7-671

Unavailable

10

VALVE SET, STARTER This part replaces 16046-KV7-671.

16046-KV7-673

Unavailable

10

VALVE SET, STARTER This part replaces 16046-KV7-672.

16046-KV7-673

Unavailable

10

VALVE SET, STARTER

16046-KV7-673

Unavailable

11

SPRING

16051-KN7-671

Unavailable

12

CARBURETOR ASSY. | Use up to Engine SN 5200077 This part replaces 16100-KV7-673.

16100-KV7-678

Unavailable

12

CARBURETOR ASSY. This part replaces 16100-KV7-674.

16100-KV7-678

Unavailable

12

CARBURETOR ASSY. This part replaces 16100-KV7-675.

16100-KV7-678

Unavailable

12

CARBURETOR ASSY. This part replaces 16100-KV7-676.

16100-KV7-678

Unavailable

12

CARBURETOR ASSY. This part replaces 16100-KV7-677.

16100-KV7-678

Unavailable

12

CARBURETOR ASSY.

16100-KV7-678

Unavailable

13

TOP

16107-KJ9-003

Unavailable

14

PISTON, VACUUM

16111-KN7-741

$93.48

15

HEATER

16136-KM1-003

Unavailable

16

VALVE, FLOAT

16155-KM1-771

$27.70

17

HOLDER, NEEDLE JET This part replaces 16165-KJ9-003.

16165-KV8-930

$33.23

17

HOLDER, NEEDLE JET

16165-KV8-930

$33.23

18

CLIP, PLATE

16179-KM1-003

Unavailable

19

TUBE, AIR VENT

16199-GC8-004

Unavailable

20

VALVE ASSY., AIR CUT

16510-KN7-671

Unavailable

21

TUBE, THERMOSTAT

19313-KM1-000

$5.43

22

SCREW, PAN (4X8)

93500-04008-0H

$1.49

22

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

23

SCREW, PAN (5X12)

16080-KJ9-003

$3.41

24

SCREW, PAN (4X14)

93500-04014-0H

$1.49

24

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

25

SCREW, PAN (5X12)

93500-05012-0H

$1.49

25

SCREW, PAN (5X12) This part replaces 93500-05012-1H.

93500-05012-0H

$1.49

26

SCREW-WASHER (4X8)

93892-04008-08

$1.49

27

CLIP, TUBE (B7)

95002-02070

$1.80

28

CLIP, TUBE (B8)

95002-02080

$1.80

29

CLIP, TUBE (D12.5)

95002-40680-08

$1.49

30

BULK HOSE, VINYL (4.5X8X1000) (4.5X8X300)

95003-09001-60M

$3.45

31

JET, MAIN (#98) | (Optional). Use from Engine SN VE03C A

99101-GHB-0980

$6.40

31

JET, MAIN (#98) | (Optional). Use from Engine SN VE03C A This part replaces 99101-393-0980.

99101-GHB-0980

$6.40

31

JET, MAIN (#102)

99101-GHB-1020

$6.40

31

JET, MAIN (#102) This part replaces 99101-393-1020.

99101-GHB-1020

$6.40

32

JET,SLOW #35 This part replaces 99103-MA1-0350.

99103-MR4-0350

$12.80
