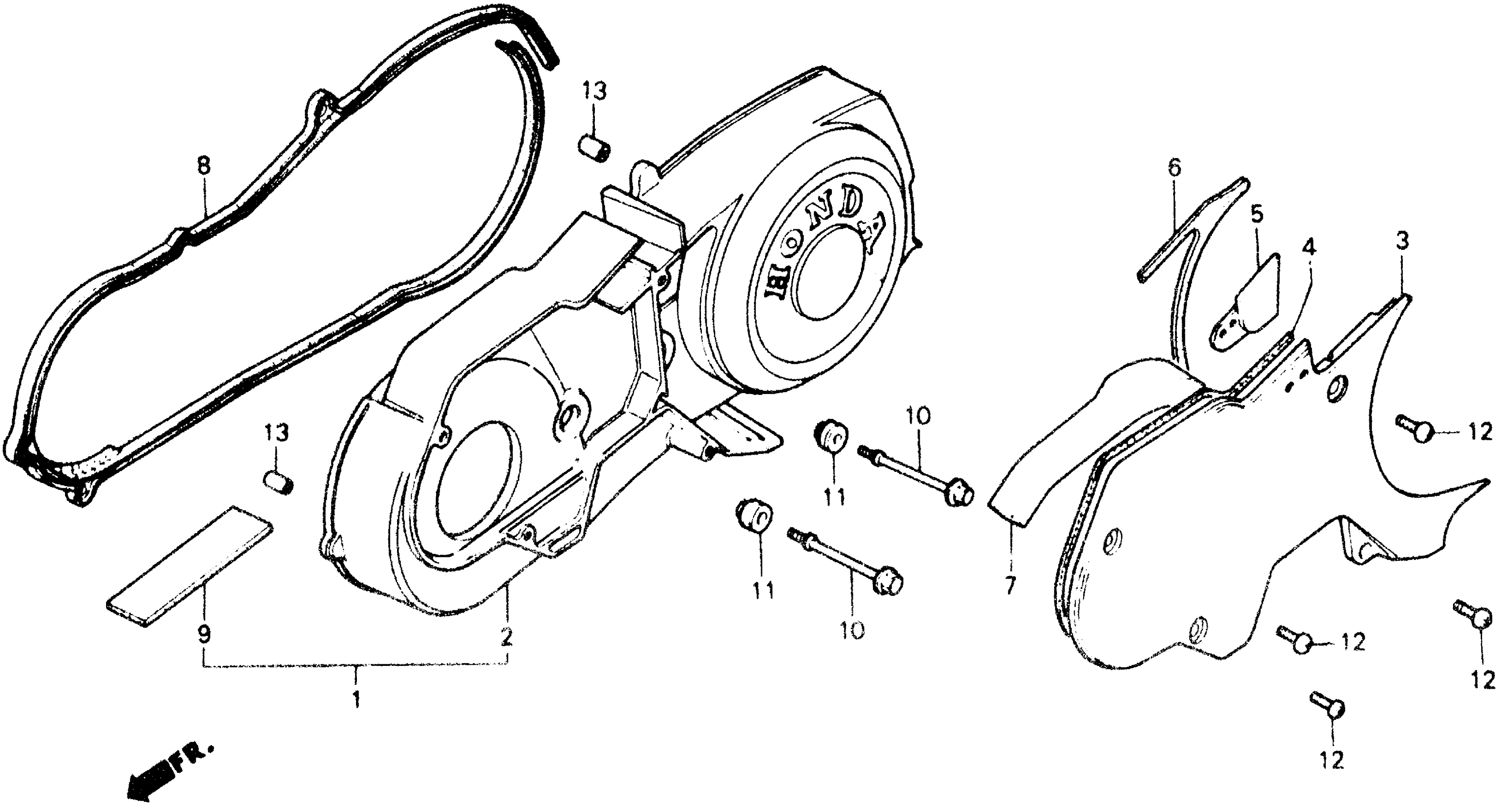

Honda CH150A (85) ELITE 150, JPN, VIN# JH2KF010-FK000019 TO JH2KF010-FK009440 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE This part replaces 11341-KN7-670.

11341-KN7-672

Unavailable

COVER, L. CRANKCASE This part replaces 11341-KN7-671.

11341-KN7-672

Unavailable

COVER, L. CRANKCASE

11341-KN7-672

Unavailable

COVER, COOLING AIR GUIDE This part replaces 11351-KN7-670.

11351-KN7-673

Unavailable

COVER, COOLING AIR GUIDE This part replaces 11351-KN7-671.

11351-KN7-673

Unavailable

COVER, COOLING AIR GUIDE

11351-KN7-673

Unavailable

GASKET, COOLING AIR GUIDE This part replaces 11352-KN7-670.

11352-KV7-670

Unavailable

GASKET, COOLING AIR GUIDE

11352-KV7-670

Unavailable

COVER, IN. COOLING AIR This part replaces 11353-KN7-670.

11353-KN7-671

$4.48

COVER, IN. COOLING AIR

11353-KN7-671

$4.48

ELEMENT, AIR CLEANER This part replaces 11355-KN7-670.

11355-KN7-671

Unavailable

ELEMENT, AIR CLEANER

11355-KN7-671

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11395-KN7-670.

11395-KV7-670

Unavailable

GASKET, L. CRANKCASE COVER

11395-KV7-670

Unavailable

BOLT, SPECIAL (6X95)

90004-KJ9-000

Unavailable

RUBBER, MOUNTING

90541-KJ9-000

$6.30

SCREW, PAN (5X12)

93500-05012-0G

$1.49

PIN A, DOWEL (10X14)

94301-10140

$2.28
