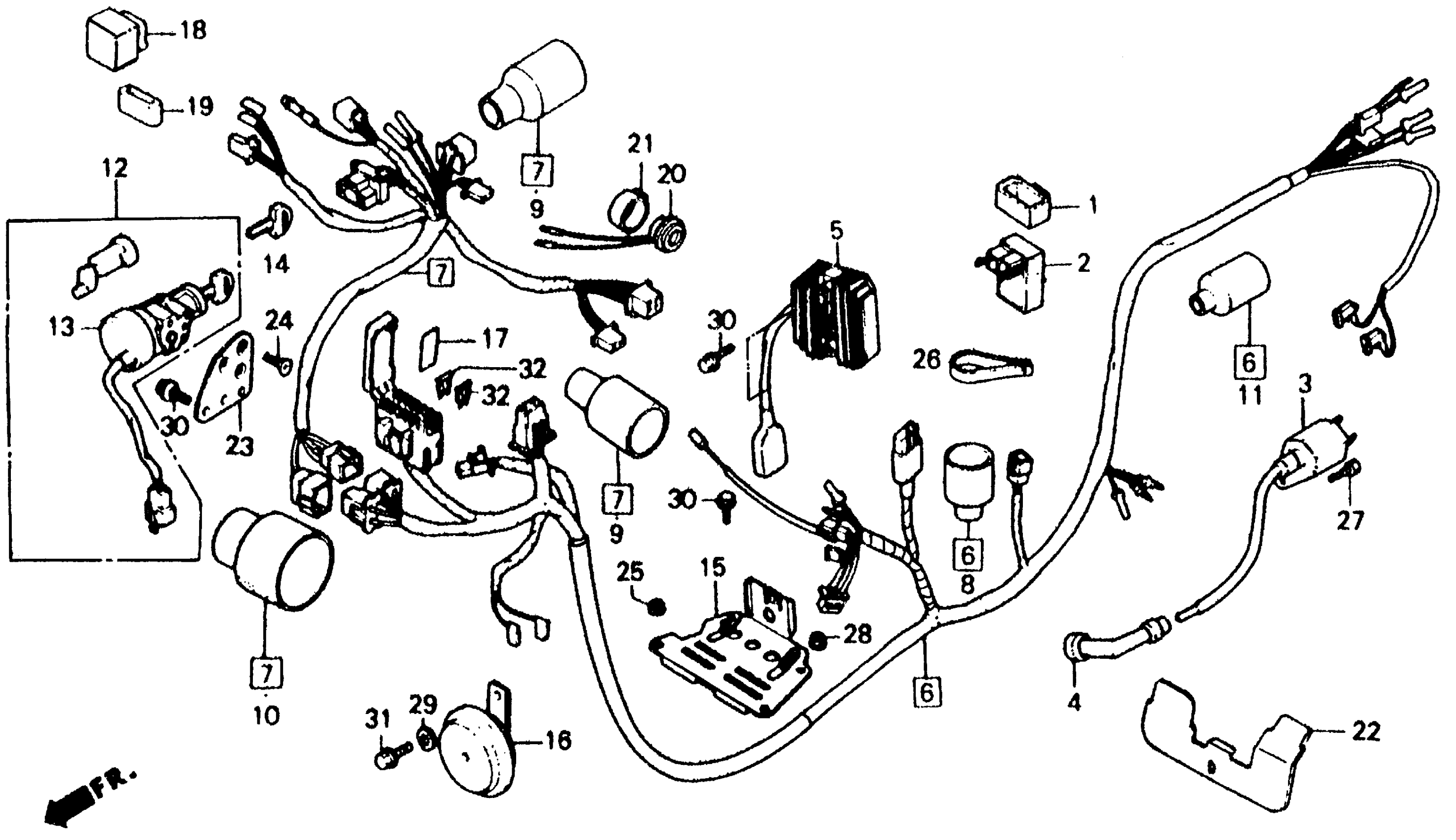

Honda CH150A (85) ELITE 150, JPN, VIN# JH2KF010-FK000019 TO JH2KF010-FK009440 CH160 WIRE HARNESS 85 Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

2

MODULE, IGNITION CONTROL (CDI)

30410-KN7-670

Unavailable

3

COIL, IGNITION

30510-GR2-405

$74.70

3

COIL, IGNITION This part replaces 30510-KN7-670.

30510-GR2-405

$74.70

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KN7-670.

30700-KN7-671

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR

30700-KN7-671

Unavailable

5

RECTIFIER, REGULATOR This part replaces 31600-KM1-008.

31600-KS4-841

Unavailable

5

RECTIFIER, REGULATOR

31600-KS4-841

Unavailable

6

WIRE HARNESS (NOT AVAILABLE)

32100-KN7-670

Unavailable

7

SUB-HARNESS A

32101-KN7-670

Unavailable

8

COVER, C.D.I. CONNECTOR (NOT AVAILABLE)

32102-KB7-000

Unavailable

9

COVER, WIRE HARNESS CONNECTOR

32108-046-750

$3.87

10

COVER, WIRE HARNESS CONNECTOR

32108-080-000

$5.54

11

COVER, CONNECTOR

32108-473-000

Unavailable

12

LOCK SET (NOT AVAILABLE)

35010-KJ9-000

Unavailable

13

SWITCH ASSY. This part replaces 35100-KJ9-007.

35100-KJ9-017

Unavailable

14

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

14

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

14

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

14

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

14

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

14

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

15

PLATE, ELECTRIC

35550-KN7-670

Unavailable

16

HORN (HIGH) This part replaces 38110-GJ1-731.

38110-KY0-621

Unavailable

16

HORN (HIGH) This part replaces 38110-KE5-601.

38110-KY0-621

Unavailable

16

HORN (HIGH) This part replaces 38110-KE8-601.

38110-KY0-621

Unavailable

16

HORN (HIGH)

38110-KY0-621

Unavailable

16

HORN (HIGH) This part replaces 38110-MJ4-601.

38110-KY0-621

Unavailable

16

HORN (HIGH) This part replaces 38110-413-000.

38110-KY0-621

Unavailable

17

LABEL, FUSE

38215-KN7-670

Unavailable

18

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-GN3-671.

38301-GN3-672

$61.82

18

RELAY, TURN SIGNAL (MITSUBA)

38301-GN3-672

$61.82

19

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

20

PILOT, AUDIBLE

38401-KM1-670

Unavailable

21

SUSPENSION, AUDIBLE PILOT

38402-GC1-000

$6.48

22

STAY, C.D.I. & RELAY

50148-KN7-670

Unavailable

23

STAY, HANDLE LOCK

53128-KJ9-000

Unavailable

24

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

25

NUT, CAP (6MM)

90304-438-000

$7.14

26

STRAP B, CABLE (125MM) (BLUE)

90669-671-003

Unavailable

27

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

27

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

27

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

WASHER, PLAIN (6MM)

94103-06000

$1.49

30

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

30

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

31

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

31

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

32

FUSE, BLADE (10A)

98200-31000

$1.49
