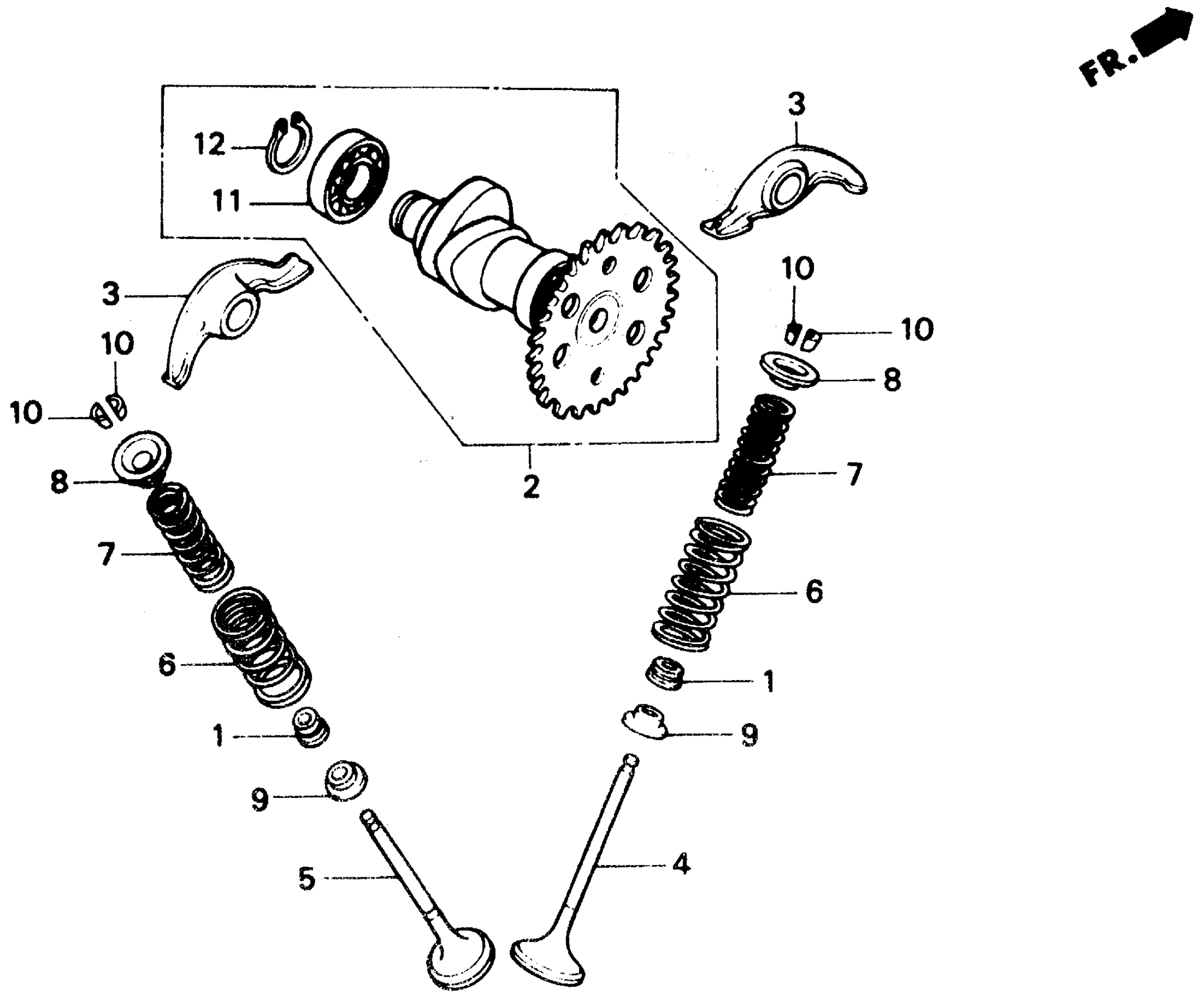

Honda CH150A (85) ELITE 150, JPN, VIN# JH2KF010-FK000019 TO JH2KF010-FK009440 CAMSHAFT Diagram

SEAL, VALVE STEM (ARAI)

12209-MA6-003

$9.28

SEAL, VALVE STEM (NOK)

12209-MA6-005

$14.02

CAMSHAFT | Use up to Engine SN 5016709 This part replaces 14100-KN7-670.

14100-KV7-900

Unavailable

CAMSHAFT This part replaces 14100-KN7-671.

14100-KV7-900

Unavailable

CAMSHAFT

14100-KV7-900

Unavailable

ARM, VALVE ROCKER

14431-KJ9-000

$65.08

VALVE, IN.

14711-KJ9-000

Unavailable

VALVE, EX. This part replaces 14721-KN7-670.

14721-KV7-900

Unavailable

VALVE, EX.

14721-KV7-900

Unavailable

SPRING, VALVE (OUTER)

14751-KJ9-003

$6.97

SPRING, VALVE (INNER)

14761-KJ9-003

Unavailable

RETAINER, VALVE SPRING

14771-GB4-680

$8.68

RETAINER, VALVE SPRING This part replaces 14771-MA6-000.

14771-GB4-680

$8.68

SEAT, VALVE SPRING

14777-KN7-670

$10.05

COTTER, VALVE

14781-MA6-000

$2.92

BEARING, RADIAL BALL (16002) This part replaces 91008-GE0-000.

91008-HB3-003

$24.46

BEARING, RADIAL BALL (16002) This part replaces 91008-GE0-003.

91008-HB3-003

$24.46

BEARING, RADIAL BALL (16002) This part replaces 91008-GE0-004.

91008-HB3-003

$24.46

BEARING, RADIAL BALL (16002) This part replaces 91008-GE0-005.

91008-HB3-003

$24.46

BEARING, RADIAL BALL (16002)

91008-HB3-003

$24.46

CIRCLIP, OUTER (15MM)

94510-15000

$1.49
