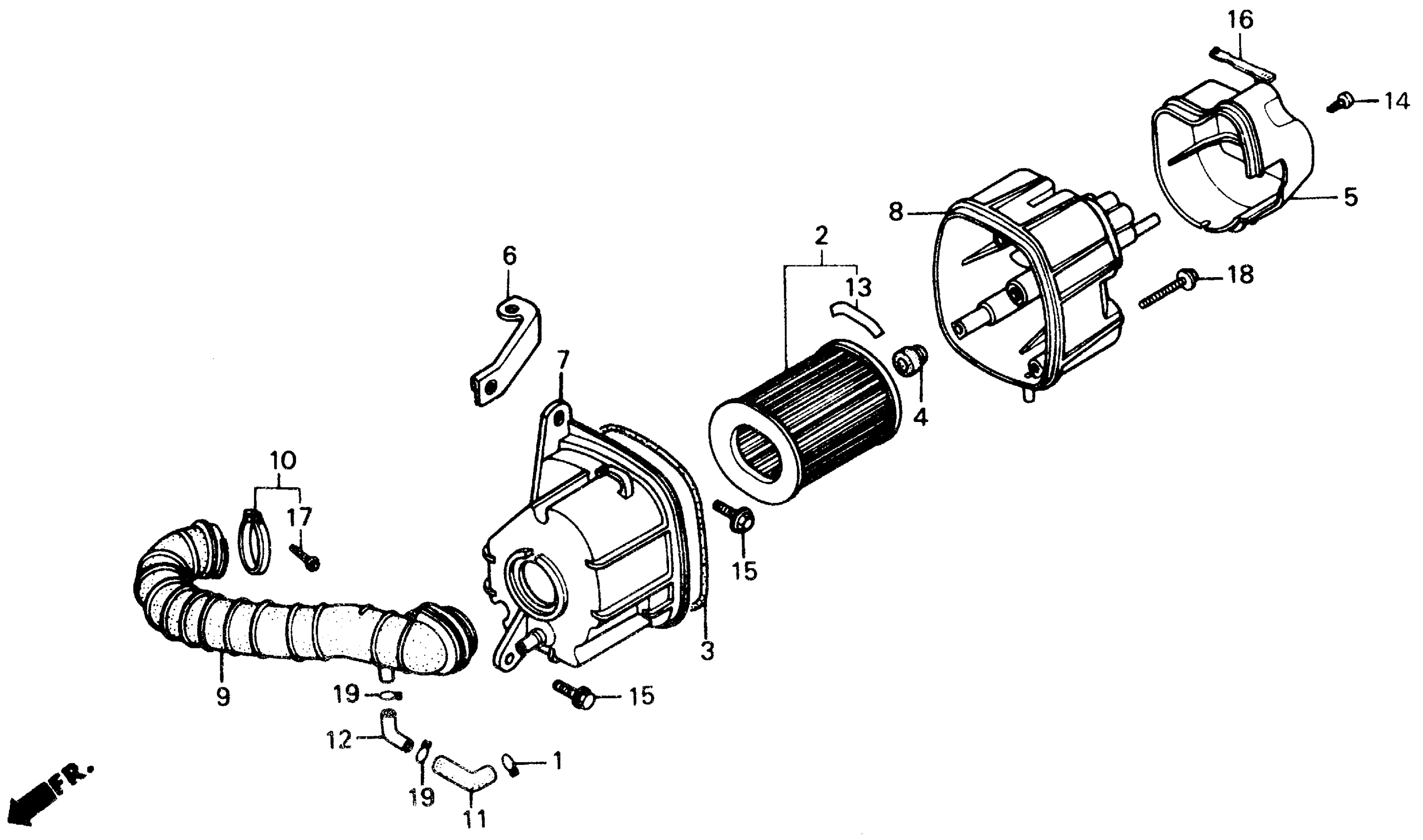

Honda CH150A (85) ELITE 150, JPN, VIN# JH2KF010-FK000019 TO JH2KF010-FK009440 AIR CLEANER 85-86 Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

ELEMENT, AIR CLEANER This part replaces 17211-KJ9-670.

17211-KJ9-405

Unavailable

2

ELEMENT, AIR CLEANER

17211-KJ9-405

Unavailable

3

SEAL, AIR CLEANER COVER This part replaces 17212-GJ5-000.

17222-MN4-405

$7.31

3

SEAL, AIR CLEANER COVER This part replaces 17212-KJ9-000.

17222-MN4-405

$7.31

3

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

3

SEAL, AIR CLEANER COVER This part replaces 17231-MB2-000.

17222-MN4-405

$7.31

4

RUBBER, AIR CLEANER ELEMENT SETTING

17213-GB4-000

Unavailable

5

COVER, DUCT

17220-KN7-670

Unavailable

6

STAY, AIR CLEANER

17228-KN7-670

Unavailable

7

HOUSING, AIR CLEANER This part replaces 17230-KN7-670.

17230-KJ9-750

Unavailable

7

HOUSING, AIR CLEANER

17230-KJ9-750

Unavailable

8

COVER, AIR CLEANER HOUSING (NOT AVAILABLE) This part replaces 17231-KN7-670.

17240-KJ9-305

Unavailable

9

TUBE This part replaces 17253-KN7-670.

17253-KN7-671

Unavailable

10

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-MA6-000.

95018-56200

$9.55

10

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

10

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

11

TUBE ASSY., BREATHER

17335-KJ9-000

Unavailable

12

JOINT, TUBE

19103-MB9-000

$6.34

13

LABEL, AIR CLEANER ELEMENT CAUTION (NOT AVAILABLE)

87509-KJ9-670

Unavailable

14

SCREW, TAPPING (4X16) (PO) This part replaces 90102-SA4-000.

93913-14480

$1.49

14

SCREW, TAPPING (4X16) (PO)

93913-14480

$1.49

15

BOLT, SPECIAL (6MM)

90109-434-000

$2.77

17

SCREW, PAN (5X16)

93500-05016-0G

$1.49

18

SCREW-WASHER (5X32)

93891-05032-00

$1.49

19

CLIP, TUBE (C12)

95002-80000

$1.49
