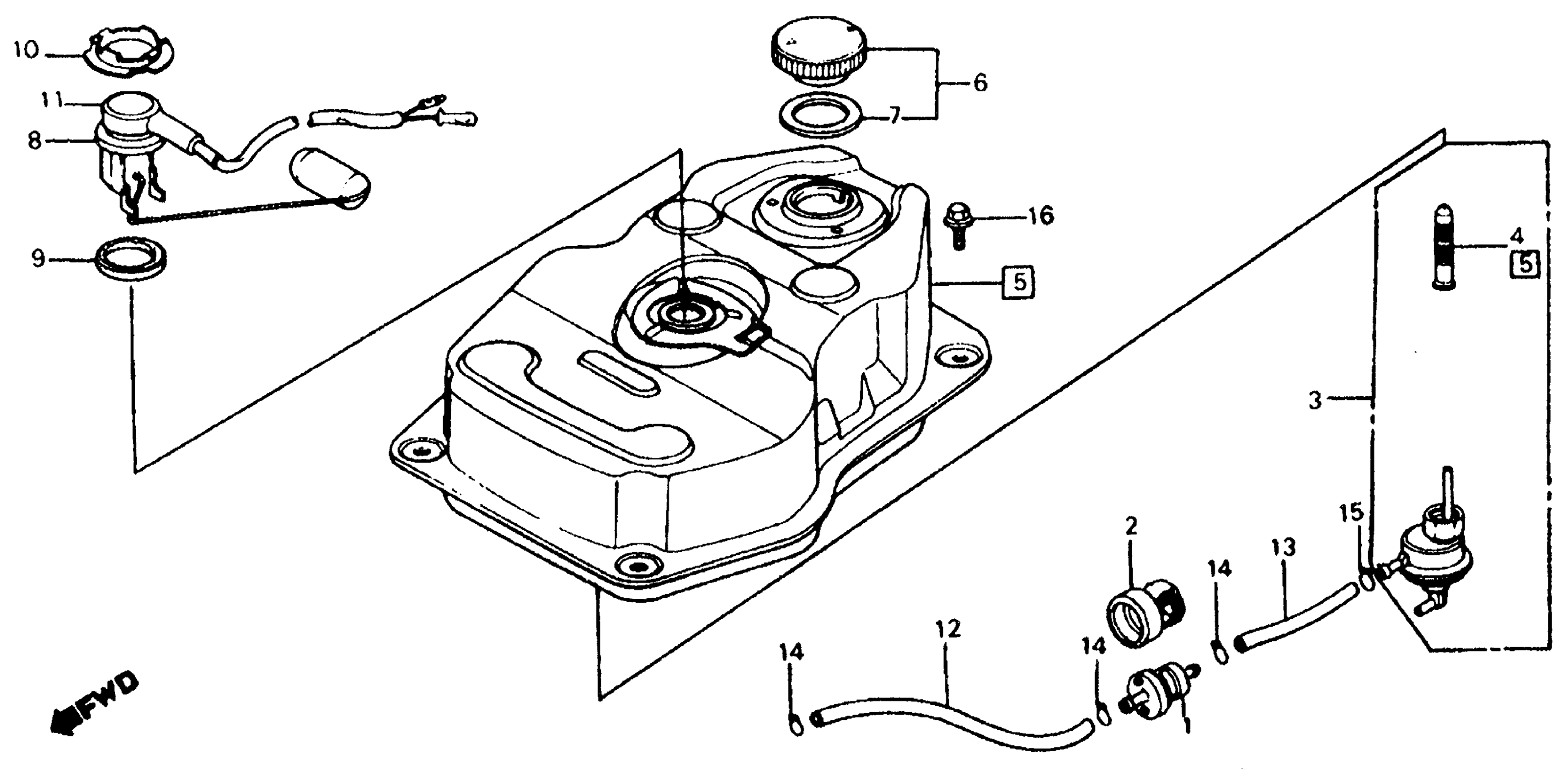

Honda CH125AC (84) ELITE 125, JPN, VIN# JH2JF021-EK000007 FUEL TANK Diagram

#

Description
Price

1

STRAINER, FUEL

16910-GB2-005

$12.84

2

SUSPENSION, STRAINER

16915-GB2-000

$5.17

3

PETCOCK ASSY., AUTO

16950-KJ9-005

Unavailable

4

SCREEN SET, FUEL STRAINER This part replaces 16952-GA6-005.

16952-GF0-005

Unavailable

4

SCREEN SET, FUEL STRAINER

16952-GF0-005

Unavailable

4

SCREEN SET, FUEL STRAINER This part replaces 16952-187-671.

16952-GF0-005

Unavailable

5

TANK SET, FUEL (NOT AVAILABLE)

175A0-KJ9-870

Unavailable

6

CAP, FUEL FILLER

17620-GE1-871

Unavailable

6

CAP, FUEL FILLER This part replaces 17620-KJ9-870.

17620-GE1-871

Unavailable

7

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

7

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

8

FUEL UNIT (NOT AVAILABLE)

37800-KJ9-008

Unavailable

9

GASKET, BASE

37801-GA7-700

$5.17

10

RETAINER, FUEL UNIT

37802-GA7-700

$5.17

10

RETAINER, FUEL UNIT

37802-GK8-670

Unavailable

11

COVER, FUEL UNIT

37805-KG8-000

Unavailable

12

TUBE, FUEL (NOT AVAILABLE)

90050-KJ9-000

Unavailable

13

BULK HOSE, FUEL (4.5X3000) (4.5X90)

95001-45003-50M

$61.19

14

CLIP, TUBE (B8)

95002-02080

$1.80

15

CLAMP, TUBE (D8)

95002-40800-08

$2.25

16

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

16

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
