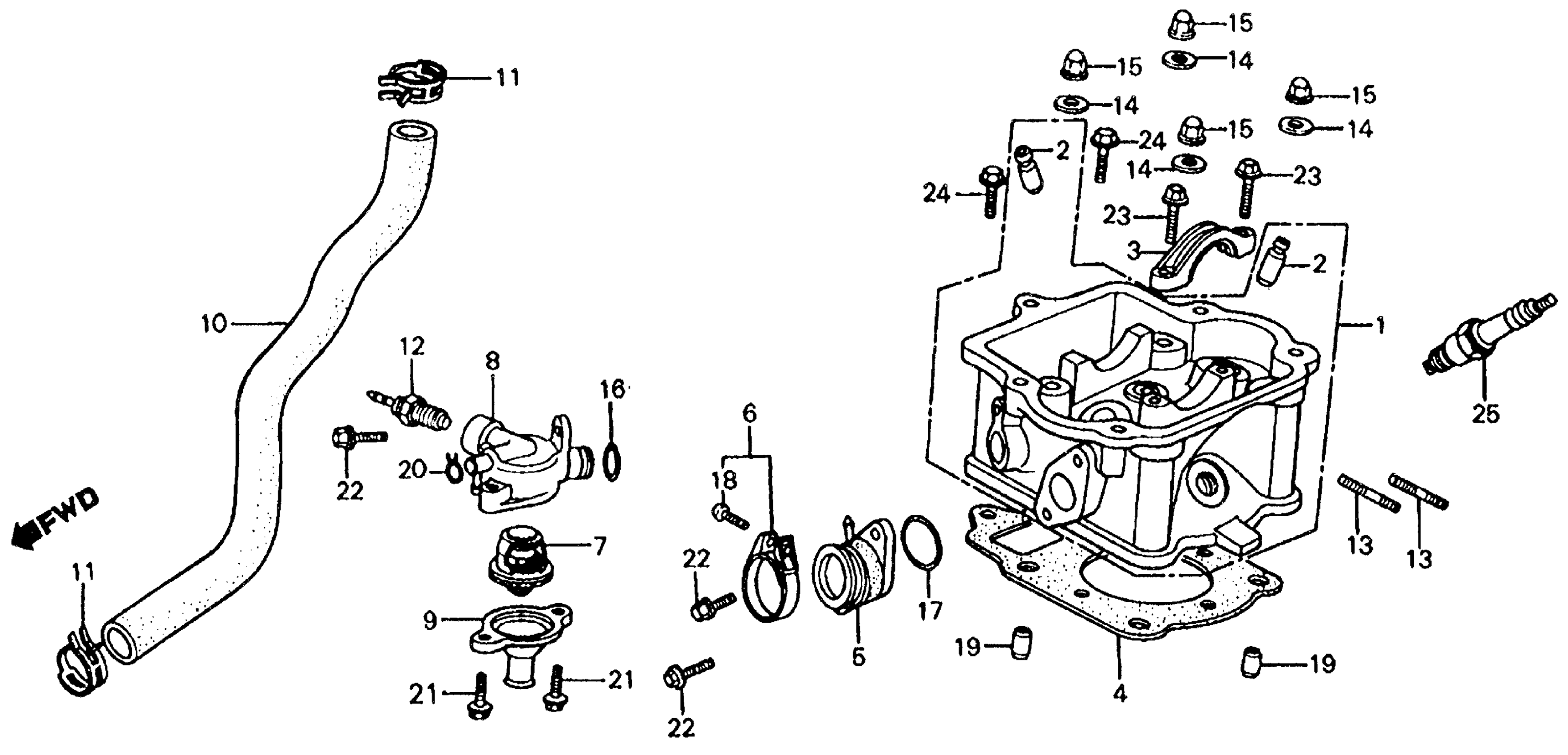

Honda CH125AC (84) ELITE 125, JPN, VIN# JH2JF021-EK000007 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD This part replaces 12200-KJ9-000.

12200-KJ9-305

Unavailable

1

CYLINDER HEAD This part replaces 12200-KJ9-010.

12200-KJ9-305

Unavailable

1

CYLINDER HEAD

12200-KJ9-305

Unavailable

2

GUIDE, VALVE (OS)

12204-KE7-305

Unavailable

2

GUIDE, VALVE (OS) This part replaces 12204-KE8-305.

12204-KE7-305

Unavailable

3

HOLDER, CAM

12211-KJ9-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-KJ9-000.

12251-KJ9-306

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-KJ9-010.

12251-KJ9-306

Unavailable

4

GASKET, CYLINDER HEAD

12251-KJ9-306

Unavailable

5

INSULATOR, CARBURETOR

16210-KJ9-010

Unavailable

6

BAND, INSULATOR (NOT AVAILABLE)

16217-KV7-670

Unavailable

6

BAND, INSULATOR (NOT AVAILABLE) This part replaces 17255-KJ9-010.

16217-KV7-670

Unavailable

7

THERMOSTAT ASSY. (NOT AVAILABLE)

19300-KJ9-003

Unavailable

8

CASE, THERMOSTAT

19310-KJ9-000

Unavailable

9

COVER, THERMOSTAT

19315-KJ9-000

Unavailable

10

HOSE C, WATER This part replaces 19503-KJ9-010.

19503-KJ9-020

Unavailable

10

HOSE C, WATER

19503-KJ9-020

Unavailable

11

CLAMP, TUBE (D19)

19509-GE2-003

$3.31

12

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

13

BOLT, STUD SPECIAL (40MM) (NOT AVAILABLE)

90033-KJ9-000

Unavailable

14

WASHER, SEALING (8MM)

90441-469-000

$5.28

15

NUT, CAP (8MM)

90443-107-000

$2.89

16

O-RING (13.8X1.9) This part replaces 91301-KJ9-000.

91301-PC0-003

$2.66

16

O-RING (13.8X1.9)

91301-PC0-003

$2.66

17

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

17

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

18

SCREW, PAN (5X22)

93500-05022-0A

$1.49

19

PIN A, DOWEL (10X14)

94301-10140

$2.28

20

CLIP, TUBE (D12.5)

95002-40680-08

$1.49

21

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

21

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

22

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

22

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

23

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

23

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

24

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

24

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

25

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

25

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62
