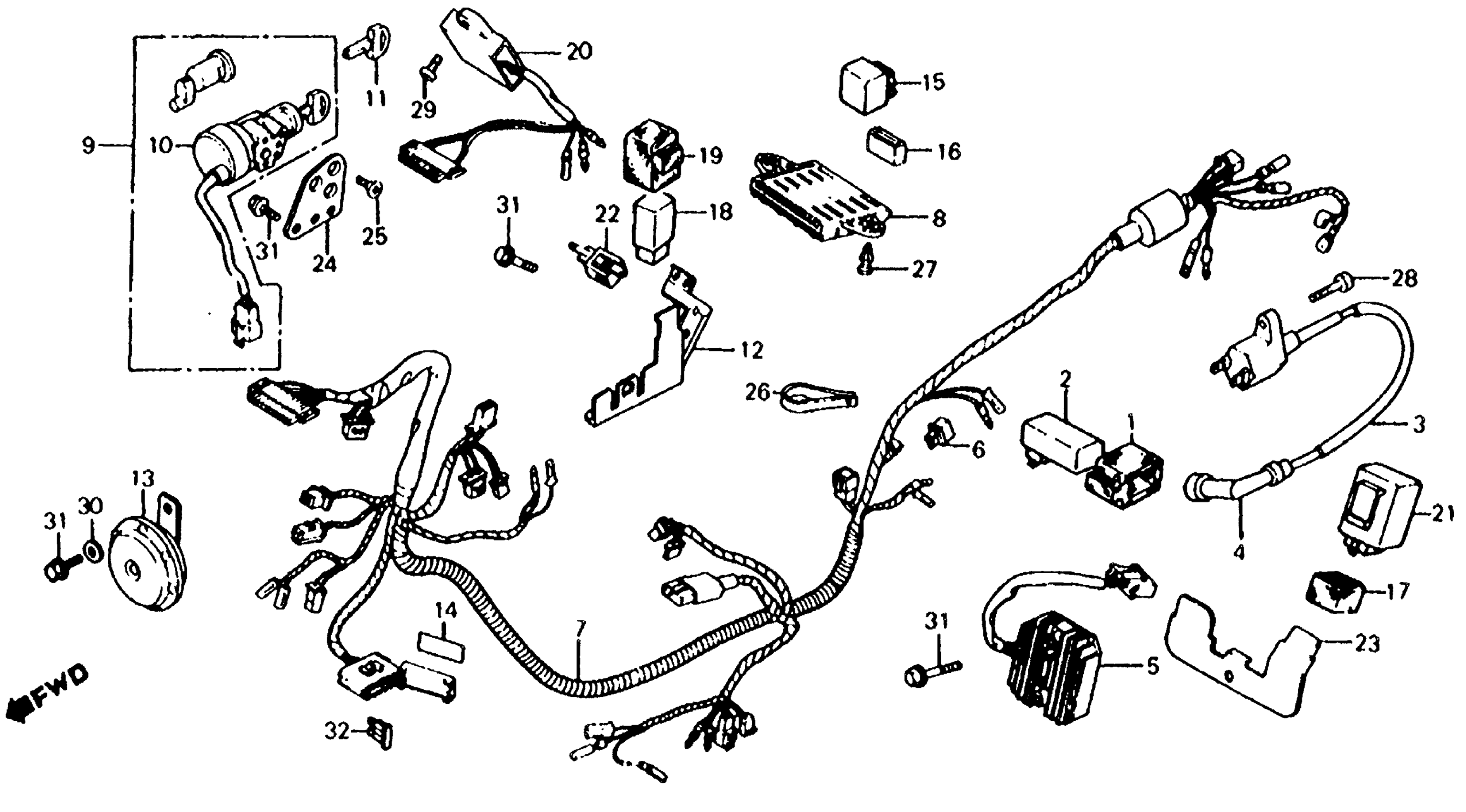

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

2

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-KJ9-000

Unavailable

3

COIL, IGNITION This part replaces 30500-KJ9-003.

30510-GR2-405

$74.70

3

COIL, IGNITION

30510-GR2-405

$74.70

4

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

4

CAP ASSY. This part replaces 30700-KJ9-000.

30700-GAR-003

$19.81

4

CAP ASSY. This part replaces 30700-KJ9-010.

30700-GAR-003

$19.81

4

CAP ASSY. This part replaces 30700-KJ9-020.

30700-GAR-003

$19.81

5

RECTIFIER ASSY., REGULATOR (NOT AVAILABLE)

31600-KJ9-000

Unavailable

6

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

6

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

7

WIRE HARNESS This part replaces 32100-KJ9-670.

32100-KJ9-671

Unavailable

8

MULTI-CONNECTOR, MALE (15X5) This part replaces 32150-GE8-003.

32150-GE8-601

Unavailable

8

MULTI-CONNECTOR, MALE (15X5)

32150-GE8-601

Unavailable

9

LOCK SET (NOT AVAILABLE)

35010-KJ9-670

Unavailable

10

SWITCH ASSY., COMBINATION This part replaces 35100-KJ9-671.

35100-KN7-771

Unavailable

10

SWITCH ASSY., COMBINATION

35100-KN7-771

Unavailable

11

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

11

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

11

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

11

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

11

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

11

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

12

PLATE, ELECTRIC (NOT AVAILABLE)

35550-KJ9-000

Unavailable

13

HORN (HIGH) This part replaces 38110-MA6-621.

38110-MR7-008

Unavailable

13

HORN (HIGH) This part replaces 38110-MA6-622.

38110-MR7-008

Unavailable

13

HORN (HIGH)

38110-MR7-008

Unavailable

14

LABEL, FUSE

38215-KJ9-300

Unavailable

15

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

15

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

15

RELAY, TURN SIGNAL (DENSO)

38301-MG2-008

Unavailable

16

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

$4.52

17

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

18

RELAY ASSY., CONTROL (20A) This part replaces 38351-KJ9-003.

38360-762-003

Unavailable

18

RELAY ASSY., CONTROL (20A)

38360-762-003

Unavailable

19

SUSPENSION, LIGHT RELAY

38356-KJ9-003

Unavailable

20

UNIT, ELECTRIC BUZZER

38410-KJ9-701

Unavailable

21

RELAY, POSITION This part replaces 38601-KJ9-671.

38601-MB3-671

Unavailable

21

RELAY, POSITION

38601-MB3-671

Unavailable

22

TIMER UNIT

39500-KJ9-003

Unavailable

23

STAY, C.D.I. & RELAY

50148-KJ9-670

Unavailable

24

STAY, HANDLE LOCK

53128-KJ9-000

Unavailable

25

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

26

STRAP B, CABLE (125MM) (BLUE)

90669-671-003

Unavailable

27

CLIP, TRIM

90672-671-003

Unavailable

28

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

28

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

28

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

29

SCREW-WASHER (6X16)

93891-06016-08

$1.49

30

WASHER, PLAIN (6MM)

94103-06000

$1.49

31

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

32

FUSE, BLADE (15A)

98200-31500

$1.49
