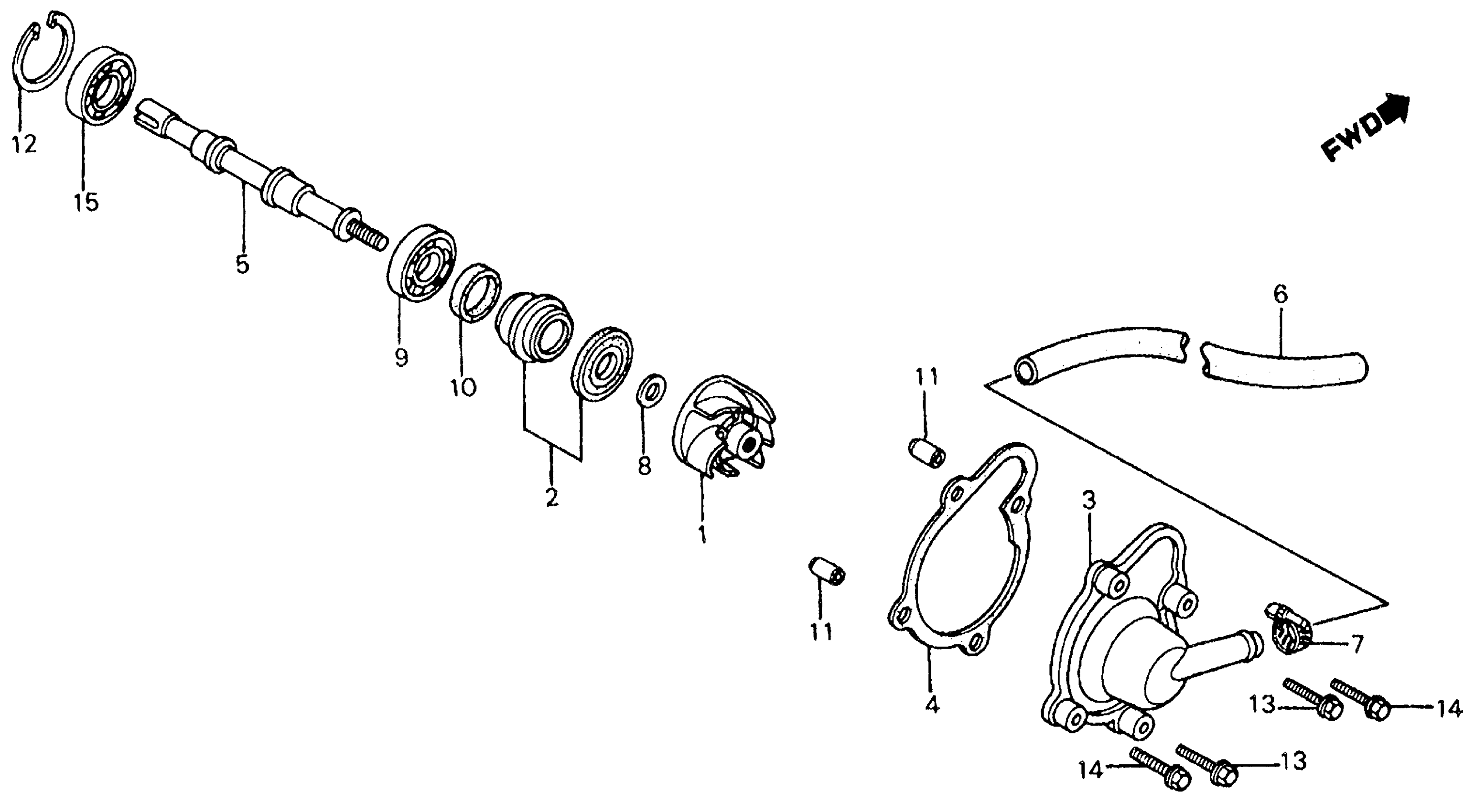

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 WATER PUMP Diagram

#

Description
Price

1

IMPELLER, WATER PUMP

19215-KJ9-010

Unavailable

2

SEAL, MECHANICAL

19217-657-023

$53.27

3

COVER, WATER PUMP

19221-KJ9-010

Unavailable

3

COVER, WATER PUMP This part replaces 19221-KJ9-670.

19221-KJ9-010

Unavailable

4

GASKET, WATER PUMP This part replaces 19229-KJ9-000.

19229-KJ9-306

Unavailable

4

GASKET, WATER PUMP

19229-KJ9-306

Unavailable

5

SHAFT, WATER PUMP This part replaces 19231-KJ9-000.

19231-KJ9-010

Unavailable

5

SHAFT, WATER PUMP

19231-KJ9-010

Unavailable

6

HOSE A, WATER

19501-KJ9-000

Unavailable

7

CLAMP A, WATER HOSE

19505-KS6-700

$11.06

7

CLAMP A, WATER HOSE This part replaces 19507-KA4-700.

19505-KS6-700

$11.06

8

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.34

9

BEARING, RADIAL BALL This part replaces 91001-KJ9-003.

91001-KJ9-005

Unavailable

9

BEARING, RADIAL BALL

91001-KJ9-005

Unavailable

10

OIL SEAL (12X20X5) (ARAI) This part replaces 91201-KJ9-003.

91205-KF0-003

$3.47

10

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.47

11

PIN, DOWEL (8X14)

94301-08140

$2.25

12

CIRCLIP (INNER) (26MM)

94520-26000

$1.85

13

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

13

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

14

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

14

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

15

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
