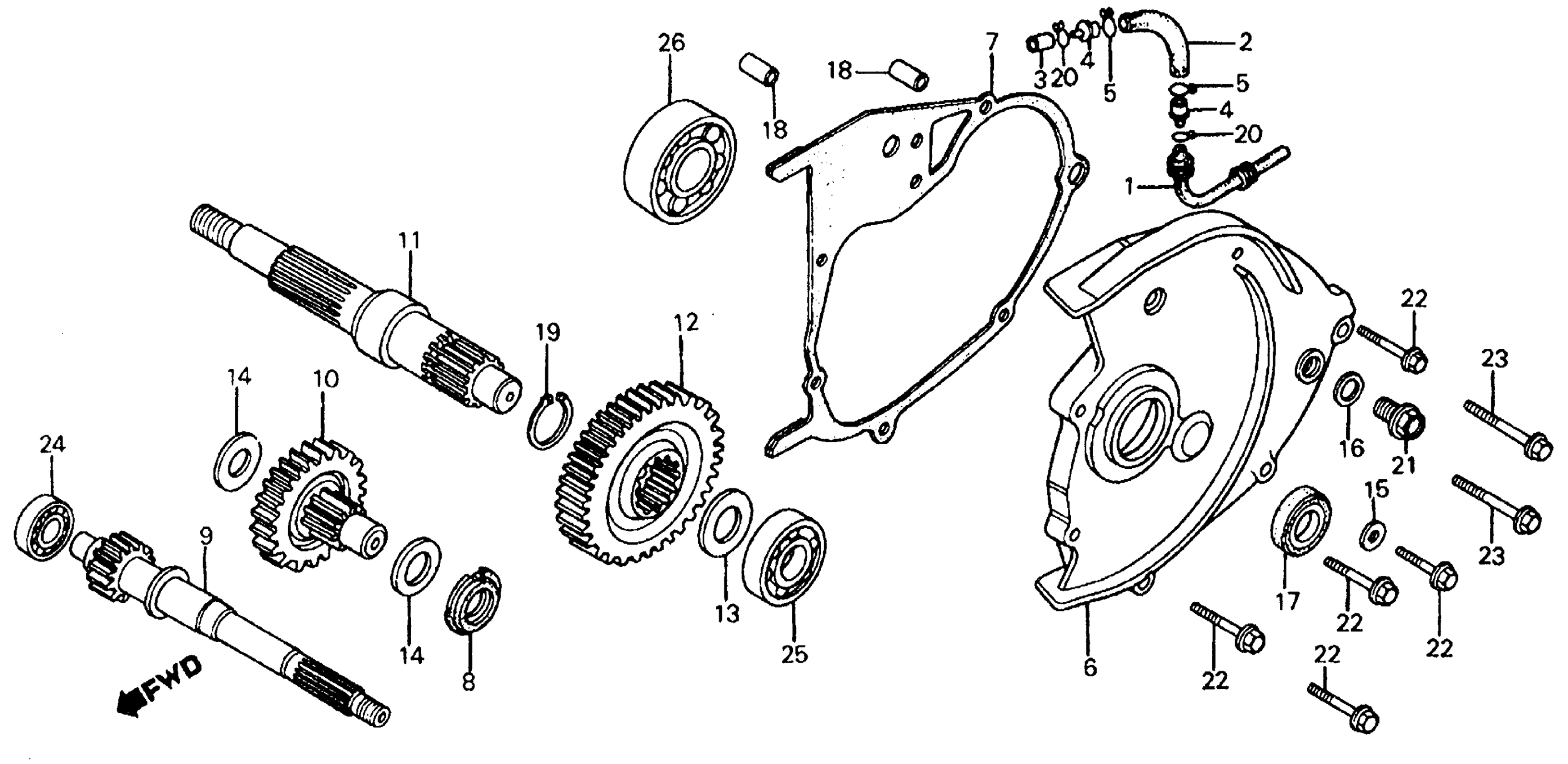

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 TRANSMISSION Diagram

#

Description
Price

1

TUBE, BREATHER

11211-KJ9-010

Unavailable

2

TUBE B, BREATHER

11212-KJ9-010

Unavailable

3

TUBE C, BREATHER

11213-KJ9-000

Unavailable

4

JOINT, BREATHER TUBE

11215-KJ9-000

Unavailable

5

CLIP, BREATHER TUBE

15772-292-010

$2.92

6

COVER, TRANSMISSION This part replaces 21300-KJ9-000.

21300-KJ9-040

Unavailable

6

COVER, TRANSMISSION This part replaces 21300-KJ9-010.

21300-KJ9-040

Unavailable

6

COVER, TRANSMISSION This part replaces 21300-KJ9-020.

21300-KJ9-040

Unavailable

6

COVER, TRANSMISSION This part replaces 21300-KJ9-030.

21300-KJ9-040

Unavailable

6

COVER, TRANSMISSION

21300-KJ9-040

Unavailable

7

GASKET, TRANS CVR This part replaces 21395-KJ9-000.

21395-KJ9-306

Unavailable

8

RUBBER, THRUST

23214-KJ9-000

Unavailable

9

SHAFT, DRIVE (NOT AVAILABLE)

23411-KJ9-000

Unavailable

10

COUNTERSHAFT (NOT AVAILABLE)

23420-KJ9-000

Unavailable

11

SHAFT, FINAL (NOT AVAILABLE)

23431-KJ9-000

Unavailable

12

GEAR, FINAL

23432-KJ9-000

Unavailable

13

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

14

WASHER, THRUST (14MM) (NA USE ALT:90451-PC9-000) | Use up to Engine SN 5019943

90451-035-900

Unavailable

14

WASHER, THRUST (14MM) | Use from Engine SN 5019944

90454-350-000

$3.74

15

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

16

WASHER (10.2MM)

90481-001-020

$2.92

17

OIL SEAL (20X32X6) This part replaces 91202-KJ9-000.

91202-KJ9-003

$4.75

17

OIL SEAL (20X32X6)

91202-KJ9-003

$4.75

18

PIN A, DOWEL (10X14)

94301-10140

$2.28

19

CIRCLIP, OUTER (20MM)

94510-20000

$1.49

20

CLIP, TUBE (B8)

95002-02080

$1.80

21

BOLT, FLANGE (10X12) (SOURCE: VINTAGE PARTS INC.) This part replaces 95700-10012-00.

95701-10012-00

$3.33

21

BOLT, FLANGE (10X12)

95701-10012-00

$3.33

22

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

22

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

23

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

23

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

24

BEARING, RADIAL BALL (6201)

96100-62013-00

$9.33

25

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

26

BEARING, RADIAL BALL (6204)

96100-62043-00

$13.11
