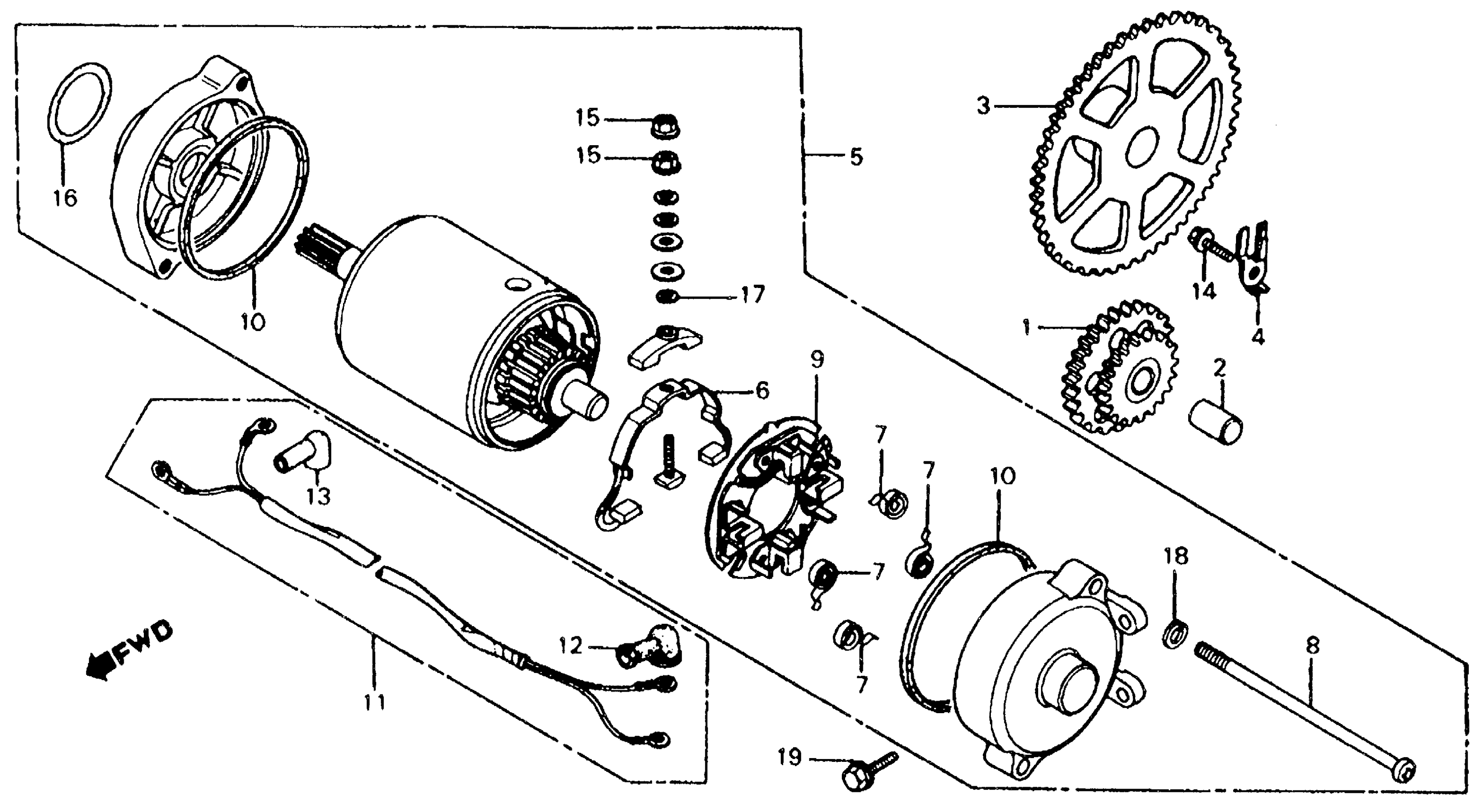

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 STARTER MOTOR Diagram

#

Description
Price

1

GEAR, STARTER REDUCTION (54/13T) This part replaces 28101-KJ9-000.

28101-KJ9-010

Unavailable

1

GEAR, STARTER REDUCTION (54/13T)

28101-KJ9-010

Unavailable

2

SHAFT, STARTER REDUCTION GEAR

28102-KJ9-000

Unavailable

3

GEAR, STARTER CLUTCH (NOT AVAILABLE)

28110-KJ9-000

Unavailable

4

GUIDE, STARTER DRIVEN GEAR (NOT AVAILABLE)

28131-KJ9-000

Unavailable

5

STARTER MOTOR ASSY. This part replaces 31200-KJ9-008.

31200-KJ9-405

Unavailable

6

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$31.18

7

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

8

BOLT, SETTING This part replaces 31205-KJ9-000.

31205-MN4-008

$5.80

8

BOLT, SETTING

31205-MN4-008

$5.80

9

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KG7-000.

31206-MM5-008

$19.33

9

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

10

RING, SEAL

31207-179-711

$4.22

11

SUB-WIRE HARNESS E

32105-KJ9-008

Unavailable

12

COVER, LAWN

32411-KJ9-000

Unavailable

13

COVER B, MAGNETIC SWITCH (NOT AVAILABLE)

32416-425-000

Unavailable

14

BOLT, SPECIAL (6X14) (NOT AVAILABLE)

90015-MA6-000

Unavailable

15

NUT-WASHER (6MM)

90071-MB0-000

$1.97

16

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

16

O-RING (24.4X3.1)

91312-MG7-003

$6.34

17

O-RING

91320-MB0-000

$2.43

18

WASHER, SPRING (5MM)

94111-05000

$1.49

19

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

19

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
