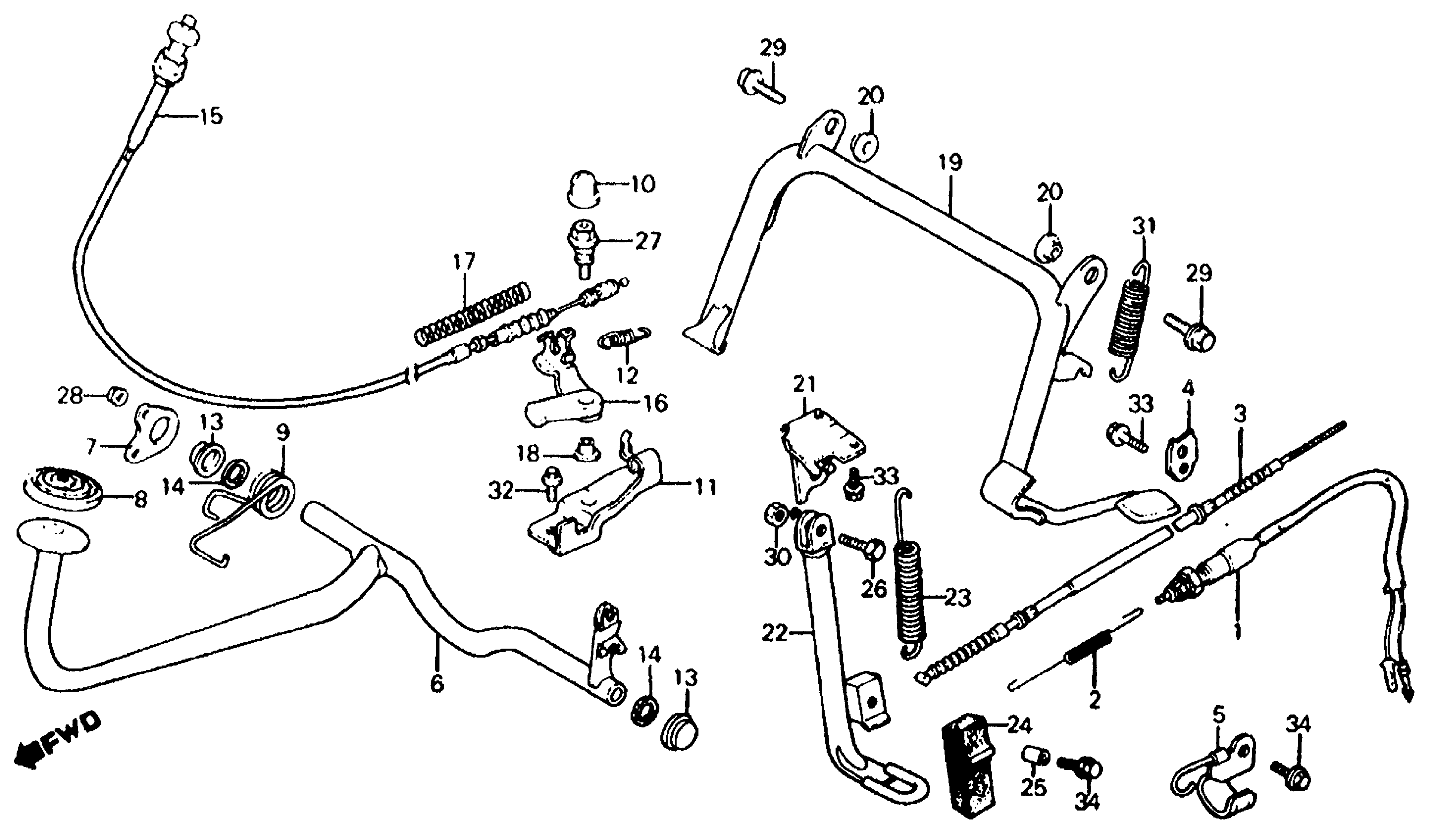

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 STAND + REAR BRAKE PEDAL Diagram

#

Description
Price

1

SWITCH ASSY., RR. STOP This part replaces 35350-KJ9-620.

35350-KJ9-621

Unavailable

1

SWITCH ASSY., RR. STOP

35350-KJ9-621

Unavailable

2

SPRING, STOP SWITCH

35357-KJ9-000

Unavailable

3

CABLE, RR. BRAKE (NOT AVAILABLE) This part replaces 43450-KJ9-670.

43450-KN7-670

Unavailable

4

STOPPER, RR. BRAKE CABLE

43451-KG8-000

Unavailable

5

CLAMP, RR. BRAKE CABLE

43452-KJ9-000

Unavailable

6

PEDAL, RR. BRAKE

46500-KJ9-670

Unavailable

7

STAY, PEDAL SHAFT

46503-KJ9-000

Unavailable

8

RUBBER, BRAKE PEDAL

46505-KJ9-000

Unavailable

9

SPRING, BRAKE RETURN

46507-KJ9-000

Unavailable

10

COVER, DUST

46508-KG8-670

Unavailable

11

PLATE, BRAKE LOCK

46508-KJ9-670

Unavailable

12

SPRING, BRAKE LOCK CABLE RETURN (B)

46510-KJ9-000

$4.05

13

BUSH, BRAKE PEDAL

46512-KJ9-000

Unavailable

14

SEAL, BRAKE PEDAL

46513-KJ9-000

Unavailable

15

CABLE, BRAKE LOCK

46620-KJ9-000

Unavailable

16

PLATE, PEDAL STOPPER

46625-KJ9-000

Unavailable

17

SPRING, BRAKE LOCK CABLE RETURN

46627-KG8-670

Unavailable

18

BUSH, STOPPER PLATE

46633-KJ9-000

Unavailable

19

STAND, MAIN

50500-KJ9-306

Unavailable

19

STAND, MAIN This part replaces 50500-KJ9-670.

50500-KJ9-306

Unavailable

20

COLLAR, MAIN STAND

50504-KJ9-670

Unavailable

21

STAY, SIDE STAND (NOT AVAILABLE)

50520-KJ9-700

Unavailable

22

BAR, SIDE STAND (NOT AVAILABLE)

50530-KJ9-700

Unavailable

23

SPRING, SIDE STAND

50532-KJ9-000

Unavailable

24

RUBBER, STAND

50548-324-760

$12.47

25

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

26

SCREW, SIDE STAND PIVOT

90108-KJ9-700

Unavailable

27

BOLT, FLANGE (6X9)

90132-KJ9-000

Unavailable

28

NUT, U (6MM)

90301-473-003

$4.07

29

BOLT-WASHER (10X20)

93401-10020-07

$1.54

29

BOLT-WASHER (10X20) This part replaces 93491-10020-07.

93401-10020-07

$1.54

30

NUT, HEX. (8MM)

94001-08070-0S

$1.49

31

SPRING D, MAIN STAND

95014-71402

$2.48

32

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

32

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

33

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

33

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

34

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

34

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
