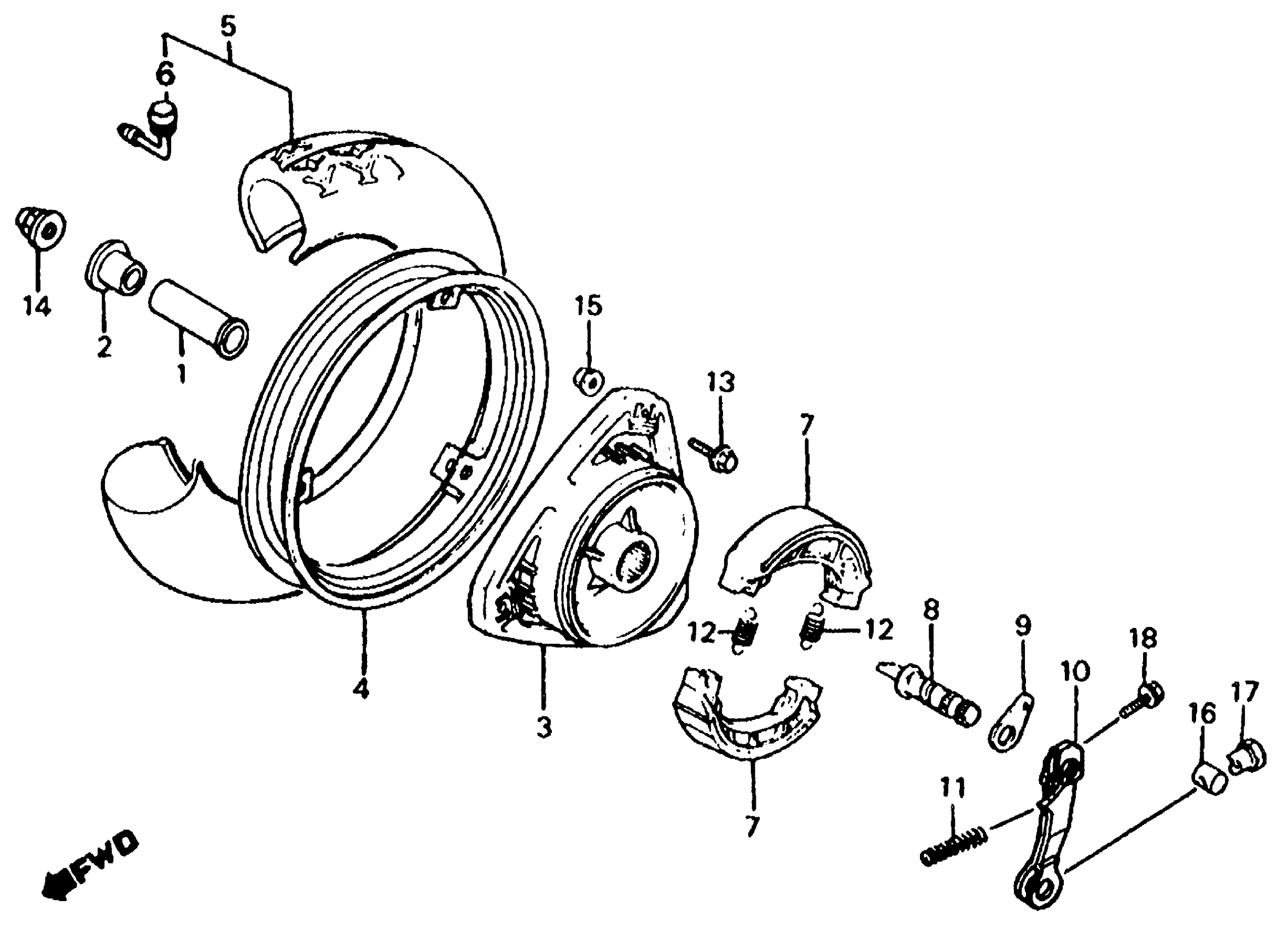

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 REAR WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GC8-005.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 431A0-KG8-670.

06450-178-932

$24.89

1

COLLAR A, RR. AXLE

42311-KJ9-000

Unavailable

2

COLLAR, RR. AXLE SIDE

42312-KG8-000

Unavailable

3

HUB, RR. WHEEL (NOT AVAILABLE) This part replaces 42601-KJ9-000.

42601-KJ9-030

Unavailable

3

HUB, RR. WHEEL (NOT AVAILABLE) This part replaces 42601-KJ9-010.

42601-KJ9-030

Unavailable

3

HUB, RR. WHEEL (NOT AVAILABLE) This part replaces 42601-KJ9-020.

42601-KJ9-030

Unavailable

3

HUB, RR. WHEEL (NOT AVAILABLE)

42601-KJ9-030

Unavailable

4

RIM, WHEEL (NOT AVAILABLE) This part replaces 42701-KG8-670.

42701-KN7-670

Unavailable

4

RIM, WHEEL (NOT AVAILABLE) This part replaces 42701-KG8-671.

42701-KN7-670

Unavailable

4

RIM, WHEEL (NOT AVAILABLE) This part replaces 42701-KG8-672.

42701-KN7-670

Unavailable

5

TIRE ASSY., RR. (3.50-10) (4PR ML8A) (BS) (NOT AVAILABLE)

42710-KG8-671

Unavailable

6

VALVE, RIM (BS)

42753-KJ9-003

$17.49

7

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

7

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

7

SHOE SET, BRAKE (JB) This part replaces 43120-KG8-003.

06450-178-932

$24.89

7

SHOE SET, BRAKE (JB) This part replaces 43120-KG8-003.

06450-178-932

$24.89

7

SHOE SET, BRAKE (JB) This part replaces 43120-KG8-005.

06450-178-932

$24.89

7

SHOE SET, BRAKE (JB) This part replaces 43120-KG8-005.

06450-178-932

$24.89

7

SHOE SET, BRAKE (JB) This part replaces 43120-KG8-006.

06450-178-932

$24.89

8

CAM, RR. BRAKE

43141-400-010

$23.52

9

INDICATOR, RR. BRAKE

43145-KG8-000

Unavailable

10

ARM, RR. BRAKE

43410-KG8-000

Unavailable

11

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.74

12

SPRING, BRAKE SHOE

45133-028-000

$2.03

13

BOLT, FLANGE (8X32)

90105-GM9-740

$4.49

13

BOLT, FLANGE (8X32) This part replaces 90122-GB2-720.

90105-GM9-740

$4.49

13

BOLT, FLANGE (8X32) This part replaces 90122-GB2-721.

90105-GM9-740

$4.49

14

NUT, U (14MM)

90305-GE8-003

$3.86

15

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

15

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

16

JOINT B, BRAKE ARM

95015-32001

$1.49

17

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

18

BOLT, FLANGE (6X30) This part replaces 95700-06030-00.

95701-06030-00

$1.89

18

BOLT, FLANGE (6X30)

95701-06030-00

$1.89
