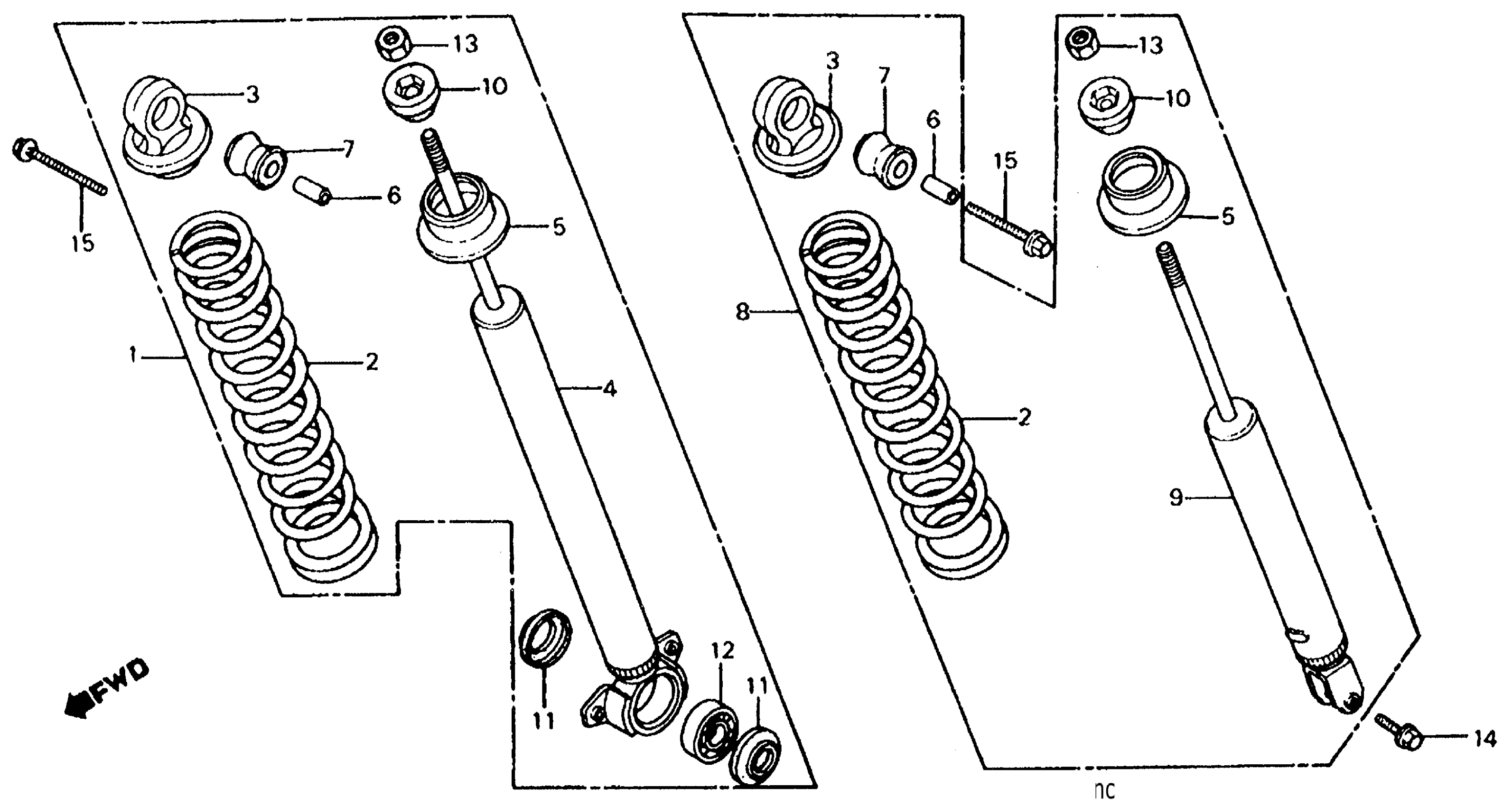

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., R. RR. (NOT AVAILABLE)

52400-KJ9-601

Unavailable

2

SPRING, RR. SHOCK ABSORBER

52401-KJ9-601

Unavailable

3

METAL, RR. (UPPER)

52403-KJ9-003

Unavailable

4

DAMPER, R. RR. (NOT AVAILABLE)

52410-KJ9-601

Unavailable

5

SEAT, RR. SHOCK ABSORBER SPRING

52485-121-731

Unavailable

6

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.77

7

RUBBER A, JOINT (SHOWA)

52489-331-003

$2.03

8

SHOCK ABSORBER ASSY., L. RR. (NOT AVAILABLE)

52500-KJ9-601

Unavailable

9

DAMPER, L. RR.

52510-KJ9-601

Unavailable

10

RUBBER, STOPPER

52517-398-981

Unavailable

11

DUST SEAL (22X32X3)

90755-KG8-003

Unavailable

12

BEARING, RADIAL BALL (6202U) (NACHI) This part replaces 90912-KG8-003.

90912-KG8-004

Unavailable

12

BEARING, RADIAL BALL (6202U) (NACHI)

90912-KG8-004

Unavailable

13

NUT, HEX. (8MM)

94002-08000-0S

$1.49

14

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

14

BOLT, FLANGE (8X28) This part replaces 95700-08028-10.

95701-08028-00

$1.49

14

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

14

BOLT, FLANGE (8X28) This part replaces 95900-08028-00.

95701-08028-00

$1.49

15

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

15

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

15

BOLT, FLANGE (8X35) This part replaces 95900-08035-00.

95701-08035-00

$2.30
