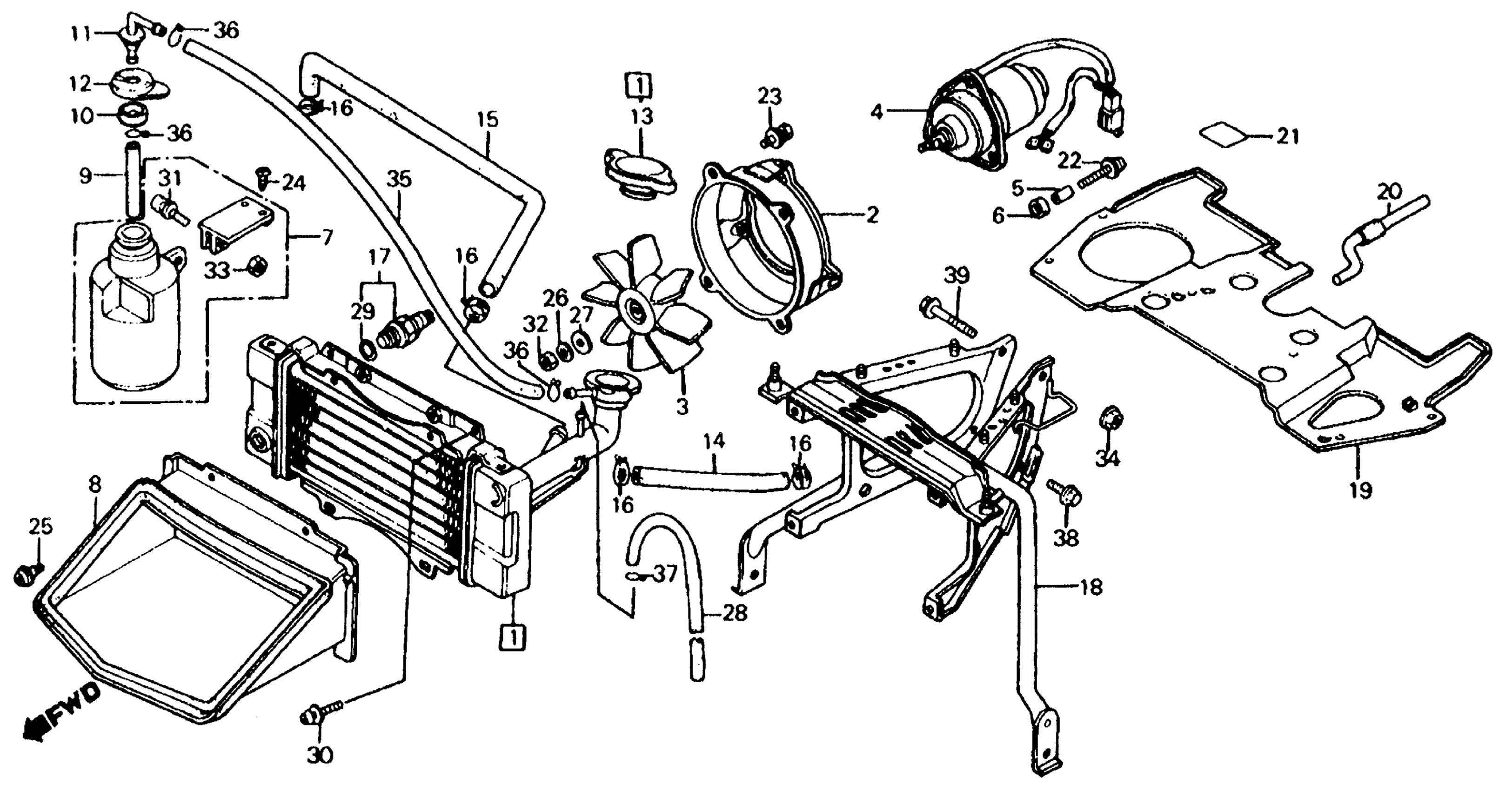

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 RADIATOR Diagram

#

Description
Price

1

RADIATOR This part replaces 19010-KJ9-013.

19010-KN7-671

Unavailable

1

RADIATOR

19010-KN7-671

Unavailable

2

SHROUD

19015-KJ9-003

Unavailable

3

FAN, COOLING (DENSO)

19020-KJ9-003

Unavailable

4

MOTOR ASSY., FAN

19030-KJ9-004

Unavailable

5

COLLAR (DENSO)

N949194-0040

Unavailable

5

COLLAR (DENSO) This part replaces 19040-611-003.

N949194-0040

Unavailable

6

RUBBER, BUSHING

19041-611-003

$44.05

7

TANK, RESERVE (NOT AVAILABLE) This part replaces 19101-KJ9-000.

19101-KN7-670

Unavailable

7

TANK, RESERVE (NOT AVAILABLE)

19101-KN7-670

Unavailable

8

DUCT, AIR

19102-KJ9-000

Unavailable

9

HOSE, RESERVE TANK

19103-680-000

Unavailable

10

CAP, RESERVE TANK

19104-GE2-000

Unavailable

11

ADAPTER, RESERVE CAP

19106-GE2-000

$11.75

12

STOPPER, RADIATOR FLUID

19107-GE2-000

$6.92

13

CAP, RADIATOR FILLER This part replaces 19045-KM3-405.

19111-KE1-013

$34.86

13

CAP, RADIATOR FILLER This part replaces 19111-GE2-003.

19111-KE1-013

$34.86

13

CAP, RADIATOR FILLER

19111-KE1-013

$34.86

14

HOSE, R. FR.

19121-KJ9-000

Unavailable

15

HOSE, L. FR. This part replaces 19122-KJ9-000.

19122-KN7-670

$7.85

15

HOSE, L. FR.

19122-KN7-670

$7.85

16

CLAMP, TUBE (D19)

19509-GE2-003

$3.31

17

SWITCH ASSY., THERMOSTAT This part replaces 37760-KE7-003.

37760-KS4-880

Unavailable

18

STAY, GRILLE SUPPORT This part replaces 50310-KJ9-010.

50310-KN7-670

Unavailable

18

STAY, GRILLE SUPPORT

50310-KN7-670

Unavailable

19

BAFFLE, FR. PLATE | Use up to Frame SN 0001907 This part replaces 64295-KJ9-000.

64295-KJ9-010

Unavailable

19

BAFFLE, FR. PLATE | Use up to Frame SN 0001907

64295-KJ9-010

Unavailable

19

BAFFLE, FR. PLATE

64295-KJ9-010

Unavailable

20

STAY, OPEN

64318-KJ9-000

Unavailable

21

MARK, RADIATOR CAUTION

87508-KJ9-670

Unavailable

22

SCREW-WASHER (4x18) (DENSO) (NOT AVAILABLE)

90041-679-003

Unavailable

23

BOLT-WASHER (6x10) (DENSO) (NOT AVAILABLE)

90042-679-003

Unavailable

24

SCREW, TAPPING (4X12) (PO) This part replaces 90101-SA4-000.

93913-14280

$1.49

24

SCREW, TAPPING (4X12) (PO)

93913-14280

$1.49

25

SCREW, HEADLIGHT SETTING

90101-087-720

$1.93

26

WASHER, SPRING (5MM) (NOT AVAILABLE)

90401-679-003

$1.70

27

WASHER, PLAIN (5MM) This part replaces 90402-679-003.

94103-05800

$1.49

27

WASHER, PLAIN (5MM)

94103-05800

$1.49

28

TUBE, FUEL (3.5X1330)

90913-KJ9-000

Unavailable

29

O-RING (13.5X1.4)

91307-PH7-660

$2.83

29

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

30

SCREW-WASHER (6X12)

93891-06012-00

$1.49

31

SCREW-WASHER (6X20)

93891-06020-08

$1.80

32

NUT, HEX. (5MM)

94001-050800S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM)

94001-06200-0S

$1.49

34

NUT, FLANGE (6MM)

94050-06000

$1.49

35

BULK HOSE, FUEL (7.5X8000) (7.3X350)

95001-75008-60M

$103.82

35

BULK HOSE, FUEL (7.5X8000) (7.3X400)

95001-75008-60M

$103.82

36

CLIP, TUBE (B12)

95002-02120

$2.00

37

CLAMP, TUBE (D7.3)

95002-40730-08

$2.52

38

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

38

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

39

BOLT, FLANGE (6X55) This part replaces 95700-06055-08.

95701-06055-08

$2.16

39

BOLT, FLANGE (6X55)

95701-06055-08

$2.16
