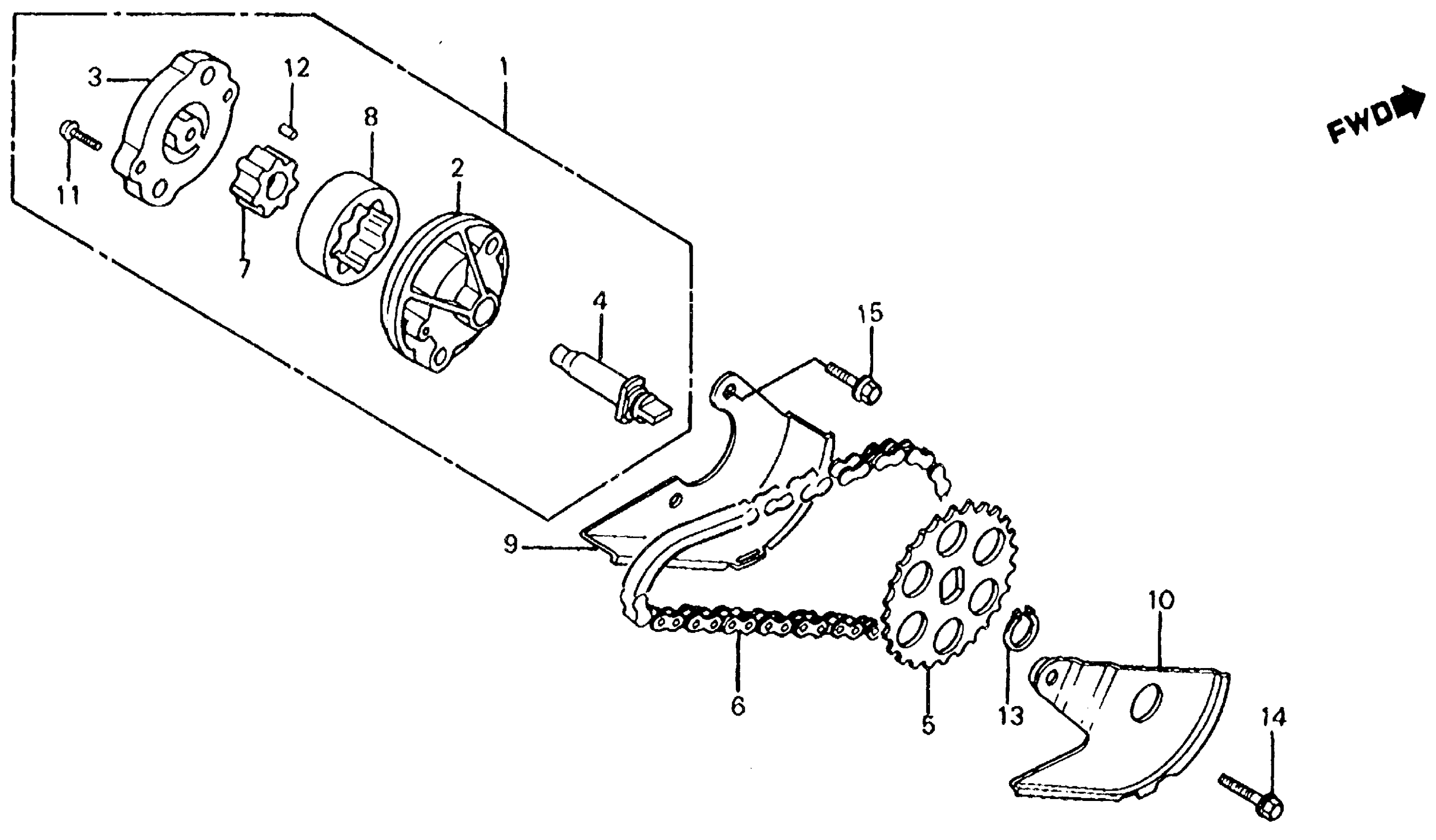

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-KJ9-000

Unavailable

2

BODY, OIL PUMP

15101-KJ9-000

Unavailable

3

PLATE, OIL PUMP

15116-KJ9-000

Unavailable

4

SHAFT, OIL PUMP

15132-KJ9-000

Unavailable

5

SPROCKET, OIL PUMP DRIVEN

15133-KJ9-000

Unavailable

6

CHAIN, OIL PUMP

15141-KJ9-003

Unavailable

7

ROTOR, OIL PUMP (INNER) (YAMADA)

15331-921-003

Unavailable

8

ROTOR, OIL PUMP (OUTER) (YAMADA)

15332-921-003

Unavailable

9

SEPARATOR A, OIL

15711-KJ9-000

$16.93

10

SEPARATOR B, OIL This part replaces 15712-KJ9-000.

15712-KJ9-010

Unavailable

10

SEPARATOR B, OIL

15712-KJ9-010

Unavailable

11

SCREW, PAN (3X12)

93500-03012-0A

$1.49

11

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

12

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

13

CIRCLIP, OUTER (10MM)

94510-10000

$1.49

14

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

14

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

15

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

15

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
