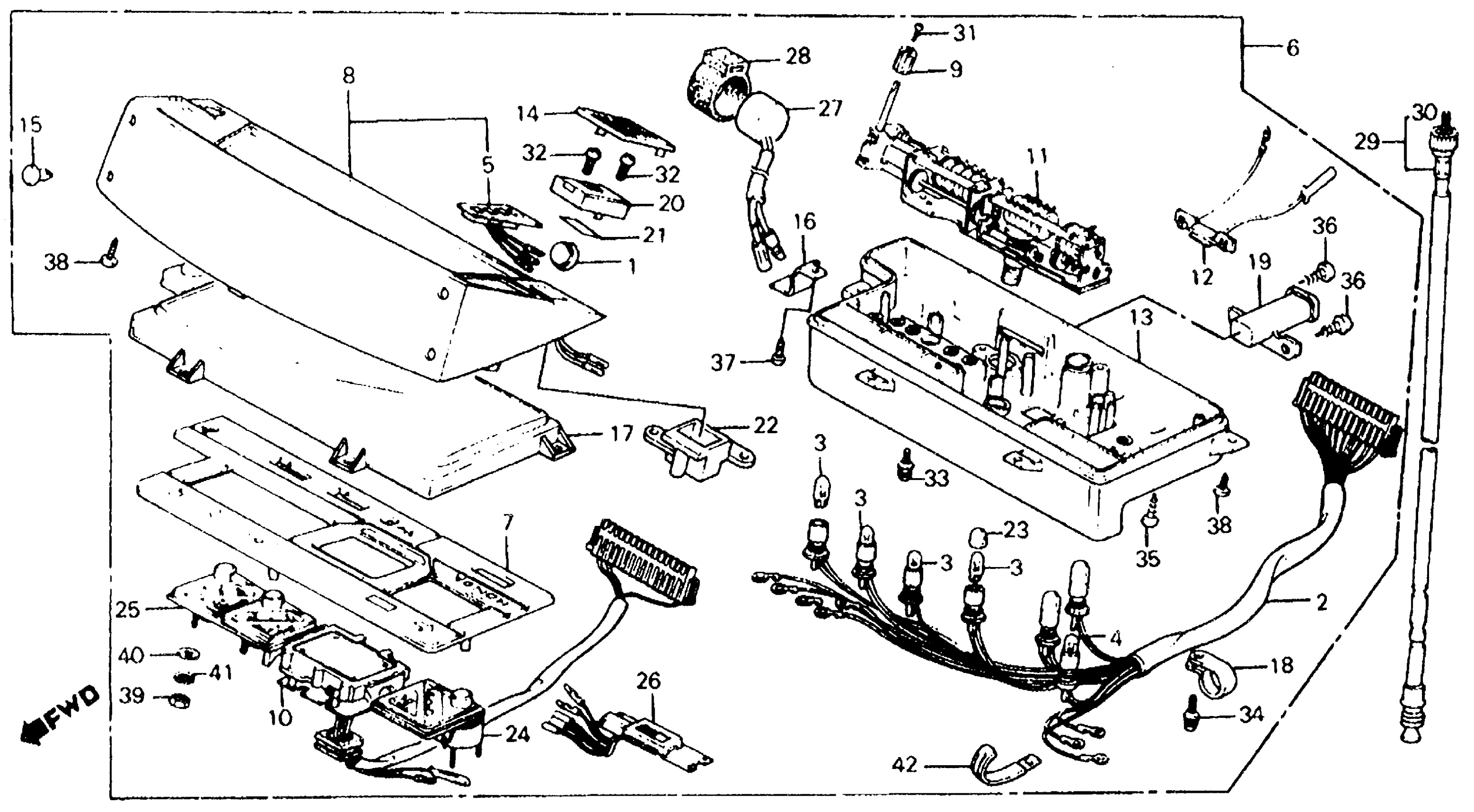

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 INSTRUMENTS Diagram

#

Description
Price

1

BATTERY (1.5V) (NOT AVAILABLE)

31550-KJ9-700

Unavailable

2

SOCKET, METER

32110-KJ9-671

Unavailable

3

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

3

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

3

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

3

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

4

BULB, WEDGE BASE (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

5

SWITCH ASSY., CLOCK (NOT AVAILABLE)

35180-KJ9-600

Unavailable

6

SPEEDOMETER ASSY. (TYPE1) This part replaces 37200-KJ9-671ZA.

37200-KJ9-672ZA

Unavailable

6

SPEEDOMETER ASSY. (TYPE2)

37200-KJ9-671ZB

Unavailable

6

SPEEDOMETER ASSY. (TYPE1)

37200-KJ9-672ZA

Unavailable

7

DIAL DESIGN ASSY., SPEEDOMETER

37201-KJ9-670

Unavailable

8

COVER, METER (UPPER) (TYPE1)

37203-KJ9-601ZA

Unavailable

8

COVER, METER (UPPER) (TYPE2)

37203-KJ9-601ZB

Unavailable

9

KNOB, TRIP METER

37204-MB2-008

Unavailable

10

SPEEDOMETER

37205-KJ9-601

Unavailable

11

ODOMETER

37207-KN7-771

Unavailable

12

SWITCH, SPEEDOMETER REED (NOT AVAILABLE)

37209-GE0-701

Unavailable

13

CASE, METER (LOWER)

37211-KJ9-701

Unavailable

14

PANEL, BLANK (NOT AVAILABLE)

37212-KJ9-701

Unavailable

15

BUSHING, METER

37213-KJ9-003

Unavailable

16

PLATE, SETTING (NOT AVAILABLE)

37214-KJ9-000

Unavailable

17

GLASS, METER

37215-KJ9-701

Unavailable

18

CLAMP

37216-KJ9-700

Unavailable

19

HOUSING, ODOMETER RESET

37218-KJ9-000

Unavailable

20

COVER, BATTERY (NOT AVAILABLE)

37220-KJ9-700

Unavailable

21

GASKET, BATTERY CASE

37221-KJ9-700

Unavailable

22

CASE, BATTERY

37222-KJ9-701

Unavailable

23

CAP, WEDGE BASE BULB (NOT AVAILABLE)

37224-KJ9-700

Unavailable

24

METER ASSY., FUEL

37300-KJ9-701

Unavailable

25

METER ASSY., VOLT & TEMPERATURE

37400-KJ9-701

Unavailable

26

CLOCK UNIT

37460-KJ9-701

Unavailable

27

BUZZER, ELECTRON (NOT AVAILABLE)

38401-KJ9-701

Unavailable

27

BUZZER, ELECTRON

38401-KJ9-702

Unavailable

28

SUSPENSION, AUDIBLE PILOT

38402-GC1-000

$6.48

29

CABLE, SPEEDOMETER This part replaces 44830-KJ9-670.

44830-KJ9-750

Unavailable

29

CABLE, SPEEDOMETER

44830-KJ9-750

Unavailable

30

CABLE (INNER)

44831-KJ9-670

Unavailable

31

SCREW, PAN (2X6)

90600-KJ9-700

Unavailable

32

SCREW, PAN (2.3X6)

90601-KJ9-700

Unavailable

33

SCREW, PAN (4X10)

93500-04010-0A

$1.49

34

SCREW-WASHER (4X20)

93893-04020-08

$1.49

35

SCREW, TAPPING (3X10)

93901-22220

$1.49

36

SCREW, TAPPING (3X8)

93901-32120

$1.49

37

SCREW, TAPPING (4X10)

93903-24220

$1.49

38

SCREW, TAPPING (4X16)

93903-24420

$1.49

39

NUT, HEX. (3MM)

94001-03000-0S

$1.49

40

WASHER, PLAIN (3MM)

94103-03800

$1.49

41

WASHER, SPRING (3MM)

94111-03800

$1.49

42

CLIP (4X40)

94591-44000

$2.31
