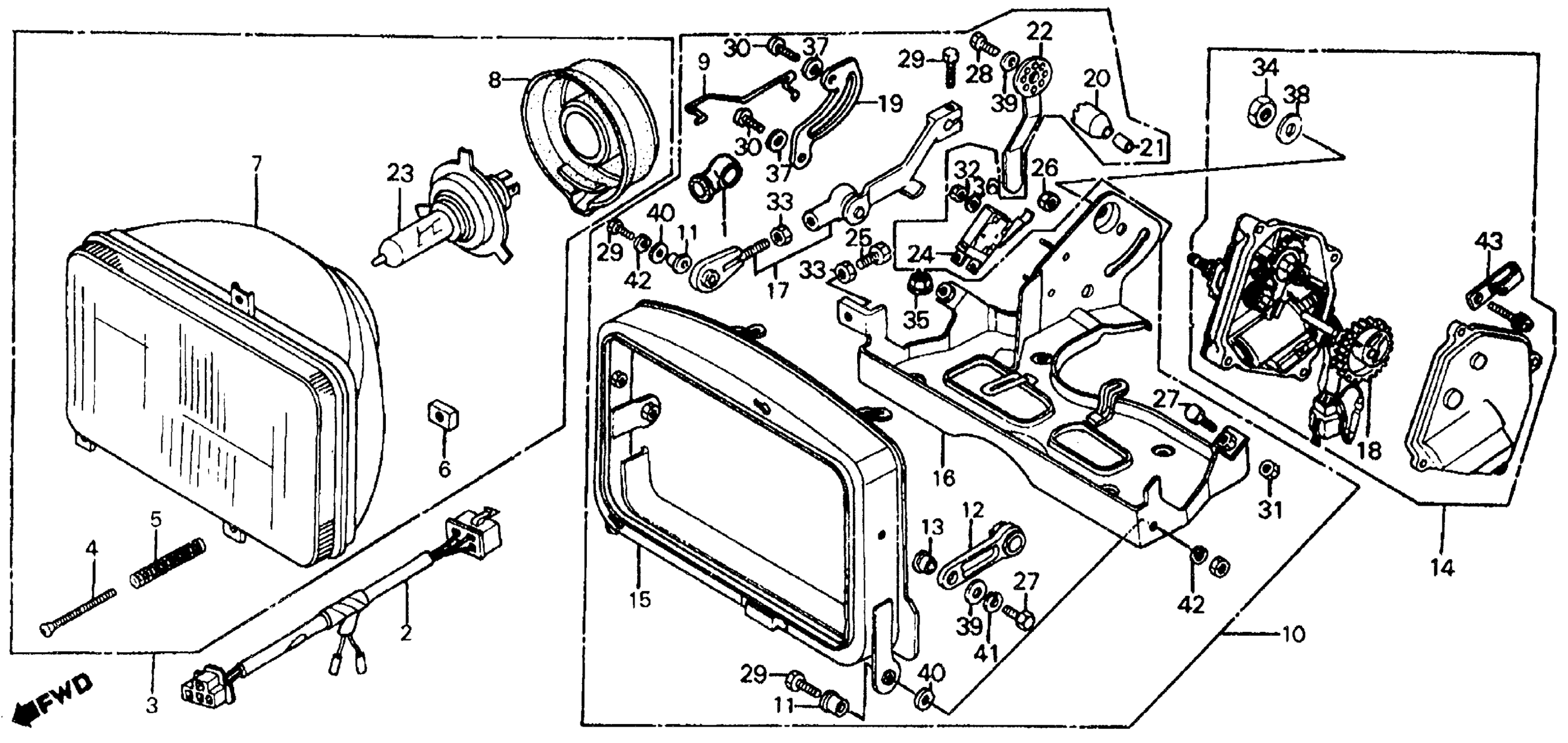

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 HEADLIGHT Diagram

#

Description
Price

1

COVER, DUST

24724-422-000

$6.68

2

SUB-WIRE HARNESS A | Use up to Frame SN EK001908 This part replaces 32101-KJ9-000.

32101-KJ9-010

Unavailable

2

SUB-WIRE HARNESS A | Use up to Frame SN EK001908

32101-KJ9-010

Unavailable

2

SUB-WIRE HARNESS A

32101-KJ9-010

Unavailable

3

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-KJ9-670

Unavailable

4

SCREW, BEAM ADJUSTING (4MM)

33103-KJ9-003

Unavailable

5

SPRING, BEAM ADJUSTING

33107-KJ9-003

Unavailable

6

NUT, BEAM ADJ.

33117-KJ9-003

Unavailable

7

HEADLIGHT UNIT

33120-KJ9-670

Unavailable

8

HOLDER, HEADLIGHT SOCKET

33131-471-901

Unavailable

8

HOLDER, HEADLIGHT SOCKET This part replaces 33140-950-003.

33131-471-901

Unavailable

9

STAY, LEVER LOCK

33195-KJ9-670

$5.36

10

LINK ASSY., HEADLIGHT (NOT AVAILABLE)

33200-KJ9-670

Unavailable

11

BUSH, LINK JOINT

33202-KJ9-000

Unavailable

12

COVER, LINK

33208-KJ9-000

Unavailable

13

BUSH, COVER JOINT

33209-KJ9-000

Unavailable

14

MOTOR ASSY., HEADLIGHT LINK (NOT AVAILABLE)

33210-KJ9-670

Unavailable

15

BRACKET, HEADLIGHT

33215-KJ9-000

Unavailable

16

BASE

33216-KJ9-000

Unavailable

17

LINK ASSY. (NOT AVAILABLE)

33220-KJ9-670

Unavailable

18

GEAR, FINAL (NOT AVAILABLE)

33228-KJ9-000

Unavailable

19

GUIDE, ADJUSTING

33229-KJ9-670

Unavailable

20

KNOB, MOTOR LOCK (NOT AVAILABLE)

33230-KJ9-670

Unavailable

21

SPACER, LOCK LEVER (NOT AVAILABLE)

33232-KJ9-670

Unavailable

22

LEVER, MOTOR LOCK (NOT AVAILABLE)

33233-KJ9-670

Unavailable

23

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

23

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

24

SWITCH ASSY., LIMIT

35900-KJ9-671

Unavailable

25

BOLT, ADJUSTING (6X16)

90159-KJ9-000

Unavailable

26

NUT, SPECIAL (8MM) (NOT AVAILABLE)

90161-KJ9-000

Unavailable

27

BOLT, HEX. (5X16) This part replaces 92000-05016-0G.

92101-05016-0G

Unavailable

27

BOLT, HEX. (5X16)

92101-05016-0G

Unavailable

28

BOLT, HEX. (5X20) This part replaces 92000-05020-0G.

92101-05020-0G

$1.49

28

BOLT, HEX. (5X20)

92101-05020-0G

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-0G.

92101-06016-0G

$1.49

29

BOLT, HEX. (6X16)

92101-06016-0G

$1.49

30

SCREW, PAN (6X8)

93500-06008-0B

Unavailable

31

NUT, HEX. (5MM)

94001-05070-0S

$1.49

32

NUT, HEX. (3MM)

94002-03000-0S

Unavailable

33

NUT, HEX. (6MM)

94002-06000-0S

$1.49

34

NUT, HEX. (10MM)

94002-10000-0S

$4.06

35

NUT, FLANGE (6MM)

94050-06000

$1.49

36

WASHER, PLAIN (3MM)

94101-03800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

WASHER, PLAIN (10MM)

94102-10800

$3.39

39

WASHER, PLAIN (5MM)

94103-05700

$1.49

40

WASHER, PLAIN (6MM)

94103-06700

$1.49

41

WASHER, SPRING (5MM)

94111-05700

$1.49

42

WASHER, SPRING (6MM)

94111-06700

$1.49

43

CLIP (4X70)

94591-47000

$2.93
