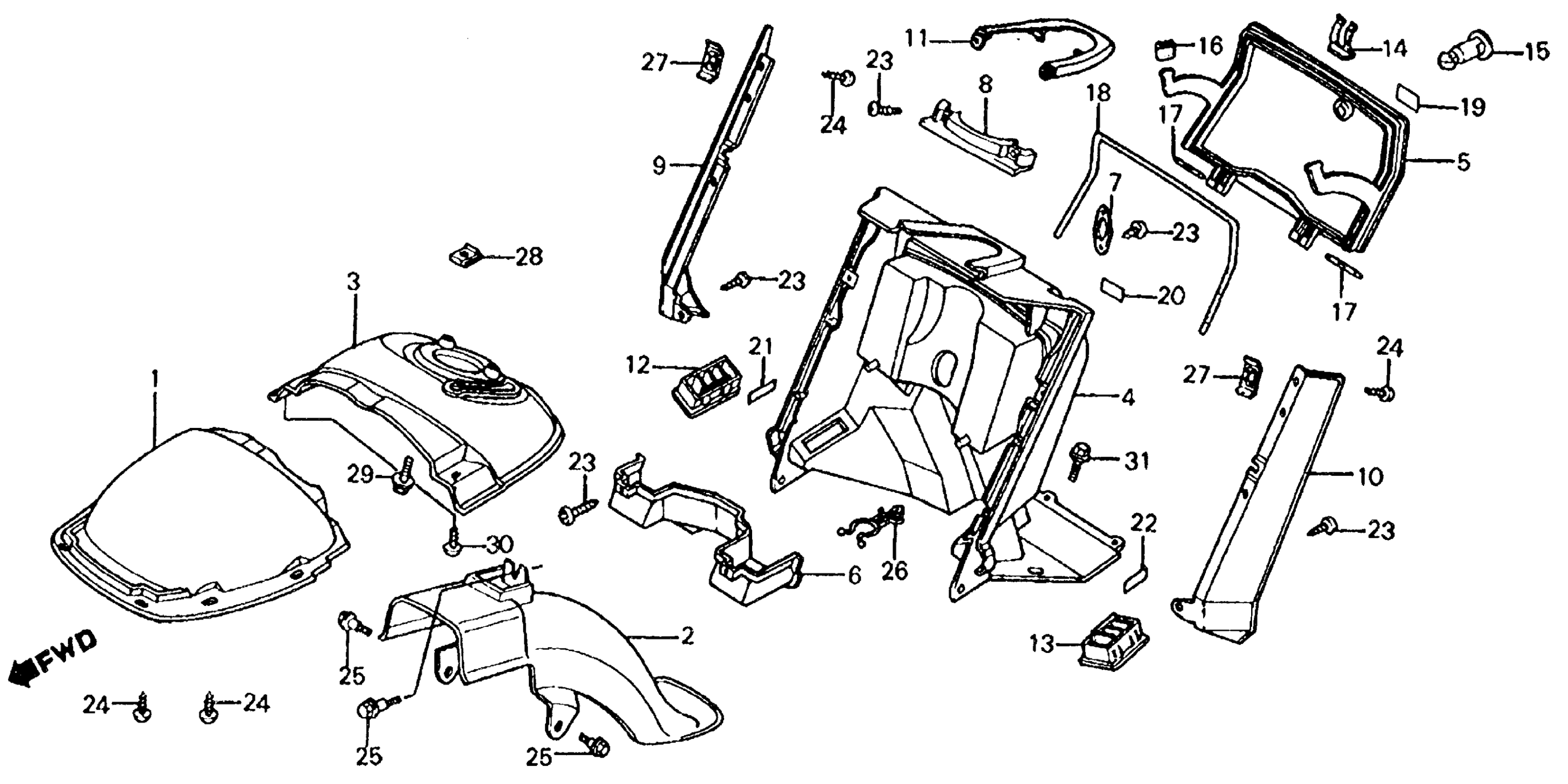

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 FRONT FENDER + LEG SHIELD Diagram

#

Description
Price

1

FENDER A, FR. (NOT AVAILABLE)

61100-KJ9-010

Unavailable

2

FENDER, FR. (INNER) This part replaces 61101-GE0-000.

61101-GE0-710

Unavailable

2

FENDER, FR. (INNER)

61101-GE0-710

Unavailable

3

FENDER B, FR.

61102-KJ9-010

Unavailable

4

LEG SHIELD *NH1* (BLACK) (NOT AVAILABLE)

64304-KJ9-670ZA

Unavailable

5

LID, BOX (INNER) *NH1* (BLACK) (NOT AVAILABLE) This part replaces 64308-KJ9-000.

64308-KN7-670ZA

Unavailable

5

LID, BOX (INNER) *NH1* (BLACK) (NOT AVAILABLE)

64308-KN7-670ZA

Unavailable

6

PLATE, BOX (LOWER) (INNER)

64309-KJ9-000

Unavailable

7

STRIKER, TRUNK

64311-KJ9-000

$4.23

8

PLATE, LEG SHIELD SETTING (NOT AVAILABLE)

64314-KJ9-670

Unavailable

9

VISOR, R. SIDE

64320-KJ9-000

Unavailable

10

VISOR, L. SIDE

64321-KJ9-000

Unavailable

11

SPACER, LEG SHIELD (UPPER)

64324-KJ9-670

Unavailable

12

OUTLET ASSY., R. HOT AIR This part replaces 64480-KJ9-000.

64490-KJ9-000

Unavailable

12

OUTLET ASSY., R. HOT AIR

64490-KJ9-000

Unavailable

13

OUTLET ASSY., R. HOT AIR

64490-KJ9-000

Unavailable

14

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

15

LOCK, SIDE BOX (TYPE1)

77239-GE8-003

Unavailable

15

LOCK, SIDE BOX (TYPE2) (NOT AVAILABLE)

77249-GE8-003

Unavailable

16

RUBBER, LID STOPPER

81142-GC8-000

Unavailable

17

PIN, BOX LID (INNER)

81143-GC8-000

$6.97

18

SEAL, BOX (INNER)

81203-KJ9-000

Unavailable

19

LABEL, TRUNK CAUTION (NOT AVAILABLE)

81218-GC2-830

Unavailable

20

LABEL, AIR DUCT CAUTION (NOT AVAILABLE)

81218-KG8-600

Unavailable

21

LABEL, R. FOOT HEATER

87553-KJ9-000

Unavailable

22

LABEL, L. FOOT HEATER (NOT AVAILABLE)

87554-KJ9-000

Unavailable

23

SCREW, TAPPING (4X12) (PO) This part replaces 90101-SA4-000.

93913-14280

$1.49

23

SCREW, TAPPING (4X12) (PO)

93913-14280

$1.49

24

SCREW, TAPPING (4X16) (PO) This part replaces 90102-SA4-000.

93913-14480

$1.49

24

SCREW, TAPPING (4X16) (PO)

93913-14480

$1.49

25

BOLT, FLANGE (6MM)

90111-162-000

$2.89

26

CLIP, CABLE (3X14)

90135-KJ9-670

Unavailable

27

NUT, VISOR SETTING

90302-KJ9-000

Unavailable

28

NUT, SPRING (4MM)

90302-SA4-003

$5.44

29

BOLT, FLANGE (5X9)

90508-GC8-000

$4.35

30

SCREW, TAPPING (5X16)

93903-15380

$1.49

31

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

31

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
