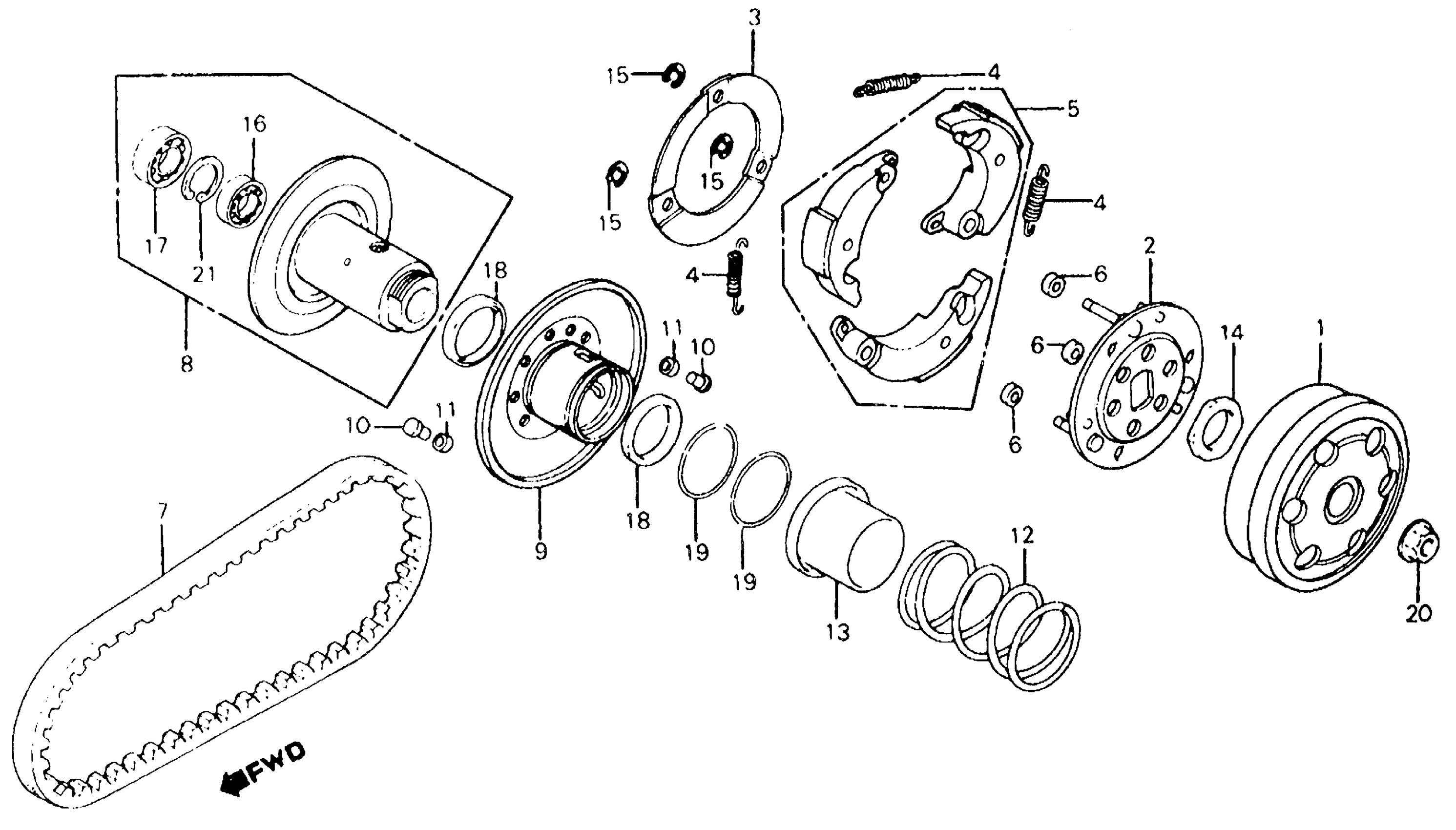

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER)

22101-KJ9-000

Unavailable

1

CLUTCH (OUTER) This part replaces 22101-KJ9-760.

22101-KJ9-000

Unavailable

2

PLATE, DRIVE (NOT AVAILABLE)

22350-KJ9-000

$29.34

3

PLATE, CLUTCH SIDE

22361-KJ9-000

Unavailable

4

SPRING, CLUTCH (NOT AVAILABLE)

22401-KJ9-000

Unavailable

5

WEIGHT SET, CLUTCH This part replaces 22535-KG8-305.

22535-KG8-315

Unavailable

5

WEIGHT SET, CLUTCH

22535-KG8-315

Unavailable

6

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

7

BELT, DRIVE

23100-KJ9-003

Unavailable

8

FACE ASSY DRIVEN This part replaces 23200-KJ9-000.

23205-KJ9-405

Unavailable

9

FACE, MOVABLE DRIVEN

23220-KJ9-010

$62.98

10

PIN, ROLLER GUIDE

23225-GC8-003

Unavailable

11

ROLLER, GUIDE

23226-GC8-003

$4.48

12

SPRING, DRIVEN FACE (NOT AVAILABLE)

23233-KJ9-000

Unavailable

13

COLLAR, SEAL (NOT AVAILABLE)

23237-KJ9-000

Unavailable

14

NUT, SPECIAL (28MM) This part replaces 90202-GA7-700.

90202-187-000

$7.32

14

NUT, SPECIAL (28MM)

90202-187-000

$7.32

15

CIRCLIP (7MM)

90605-166-720

$1.80

16

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$24.49

17

BEARING, RADIAL BALL (6901U) (TOYO) (NOT AVAILABLE) This part replaces 91002-KG8-000.

91002-KG8-003

Unavailable

17

BEARING, RADIAL BALL (6901U) (TOYO) (NOT AVAILABLE)

91002-KG8-003

Unavailable

18

SEAL, DRIVEN FACE (ARAI)

91211-187-003

$6.98

19

O-RING, PINION CAP (36.7X1.9)

91351-642-000

$4.22

20

NUT, FLANGE (10MM)

94050-10000

$1.59

21

CIRCLIP, INNER (24MM)

94520-24000

$1.49
