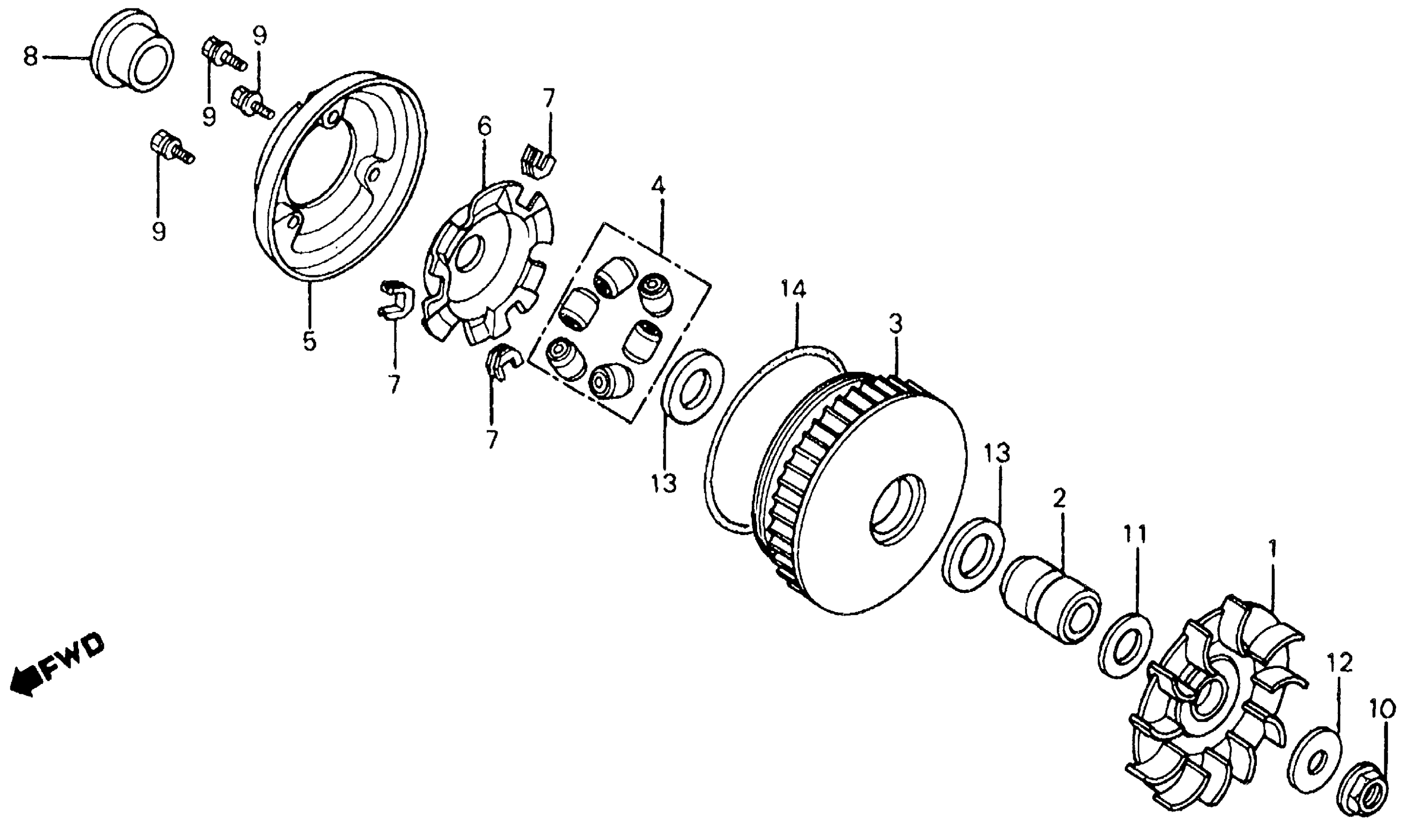

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 DRIVE FACE Diagram

FACE, DRIVE (NOT AVAILABLE)

22102-KJ9-000

Unavailable

BOSS, DRIVE FACE (NOT AVAILABLE)

22105-KJ9-000

Unavailable

FACE, MOVABLE DRIVE (1) (NOT AVAILABLE) This part replaces 22110-KJ9-000.

22110-KJ9-010

Unavailable

FACE, MOVABLE DRIVE (1) (NOT AVAILABLE)

22110-KJ9-010

Unavailable

ROLLER SET, WEIGHT (NOT AVAILABLE)

22123-KJ9-670

Unavailable

SEAL, MOVABLE FACE

22126-KJ9-000

Unavailable

PLATE, RAMP (NOT AVAILABLE)

22131-KJ9-010

Unavailable

PIECE, SLIDE

22132-KG8-000

Unavailable

PIECE, SLIDE This part replaces 22132-KJ9-000.

22132-KG8-000

Unavailable

BOSS, L. CRANK

28220-KJ9-000

Unavailable

BOLT-WASHER (4X10) This part replaces 90005-187-000.

90005-GAH-600

$1.62

NUT, FLANGE (12MM)

90201-PB8-000

Unavailable

WASHER (16.7X27X2)

90422-KJ9-670

Unavailable

WASHER, PLAIN (12MM) This part replaces 90440-166-000.

90440-GT4-970

$2.48

OIL SEAL (24X31X3.5)

91203-GC8-003

$9.49

O-RING (91X2.6) This part replaces 91305-KG8-000.

91305-KG8-003

$4.45

O-RING (91X2.6)

91305-KG8-003

$4.45
