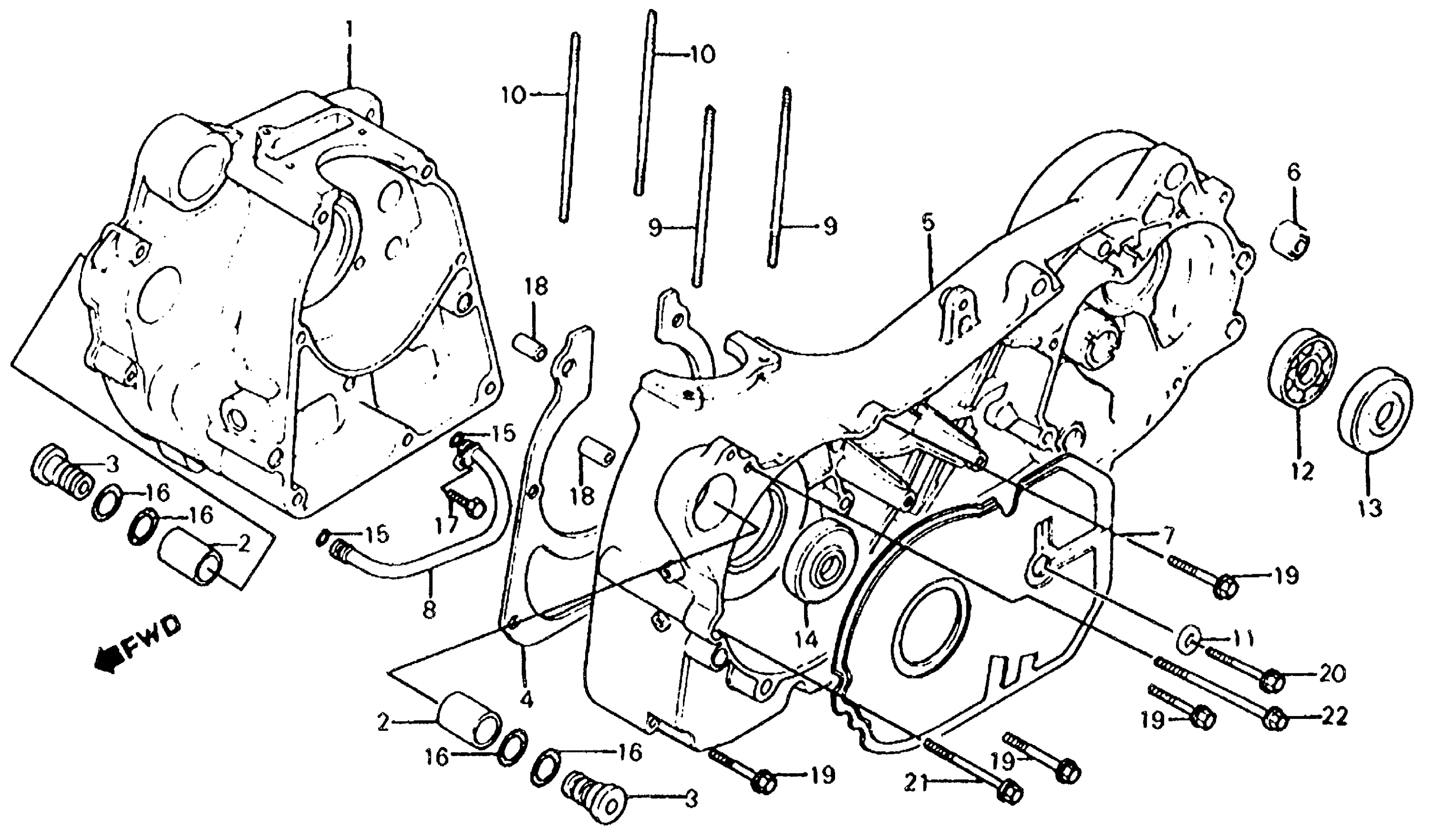

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-KJ9-000.

11100-KJ9-040

Unavailable

1

CRANKCASE, R. This part replaces 11100-KJ9-010.

11100-KJ9-040

Unavailable

1

CRANKCASE, R. This part replaces 11100-KJ9-020.

11100-KJ9-040

Unavailable

1

CRANKCASE, R. This part replaces 11100-KJ9-030.

11100-KJ9-040

Unavailable

2

BUSH, ENGINE HANGER (OUTER) (NOT AVAILABLE)

11104-KJ9-300

Unavailable

3

BUSH, ENGINE HANGER (INNER) This part replaces 11105-KJ9-010.

11105-KM1-670

Unavailable

3

BUSH, ENGINE HANGER (INNER) This part replaces 11105-KJ9-020.

11105-KM1-670

Unavailable

3

BUSH, ENGINE HANGER (INNER) This part replaces 11105-KM1-000.

11105-KM1-670

Unavailable

3

BUSH, ENGINE HANGER (INNER)

11105-KM1-670

Unavailable

4

GASKET, CRANKCASE This part replaces 11191-KJ9-003.

11191-KV8-680

Unavailable

4

GASKET, CRANKCASE This part replaces 11191-KJ9-306.

11191-KV8-680

Unavailable

4

GASKET, CRANKCASE

11191-KV8-680

Unavailable

5

CRANKCASE, L. This part replaces 11200-KJ9-000.

11200-KJ9-305

Unavailable

5

CRANKCASE, L. This part replaces 11200-KJ9-010.

11200-KJ9-305

Unavailable

5

CRANKCASE, L. This part replaces 11200-KJ9-020.

11200-KJ9-305

Unavailable

5

CRANKCASE, L. This part replaces 11200-KJ9-030.

11200-KJ9-305

Unavailable

5

CRANKCASE, L. This part replaces 11200-KJ9-040.

11200-KJ9-305

Unavailable

5

CRANKCASE, L. This part replaces 11200-KJ9-050.

11200-KJ9-305

Unavailable

5

CRANKCASE, L.

11200-KJ9-305

Unavailable

6

BUSH, RR. CUSHION RUBBER (LOWER)

11203-GC7-300

$10.71

7

INSULATOR, HEAT This part replaces 11221-KJ9-000.

11221-KJ9-405

Unavailable

8

PIPE B, OIL

15520-KJ9-000

Unavailable

9

BOLT A, STUD (8MM) (NOT AVAILABLE) This part replaces 90031-KJ9-000.

90031-MA7-000

Unavailable

9

BOLT A, STUD (8MM) (NOT AVAILABLE)

90031-MA7-000

Unavailable

10

BOLT B, STUD (8MM) This part replaces 90032-KJ9-000.

90032-KJ9-010

Unavailable

10

BOLT B, STUD (8MM)

90032-KJ9-010

Unavailable

11

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

12

BEARING, RADIAL BALL (6004UU) (NACHI)

91009-GE0-003

$37.15

12

BEARING, RADIAL BALL (6004UU) (NTN CORP.)

91009-GE0-004

$14.88

13

OIL SEAL (27X42X7) (NOK)

91255-GE0-003

$11.16

14

OIL SEAL (25X40X8)

91261-415-003

Unavailable

15

O-RING (9.0X1.7)

91305-GE0-000

Unavailable

16

O-RING (14.8X2.4)

91354-671-004

$3.69

17

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

17

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

18

PIN A, DOWEL (10X14)

94301-10140

$2.28

19

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

19

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

20

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

20

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

21

BOLT, FLANGE (6X100) This part replaces 96000-06100-00.

96001-06100-00

$1.95

21

BOLT, FLANGE (6X100)

96001-06100-00

$1.95

22

BOLT, FLANGE (6X125) This part replaces 96000-06125-00.

96001-06125-00

$3.98

22

BOLT, FLANGE (6X125)

96001-06125-00

$3.98
