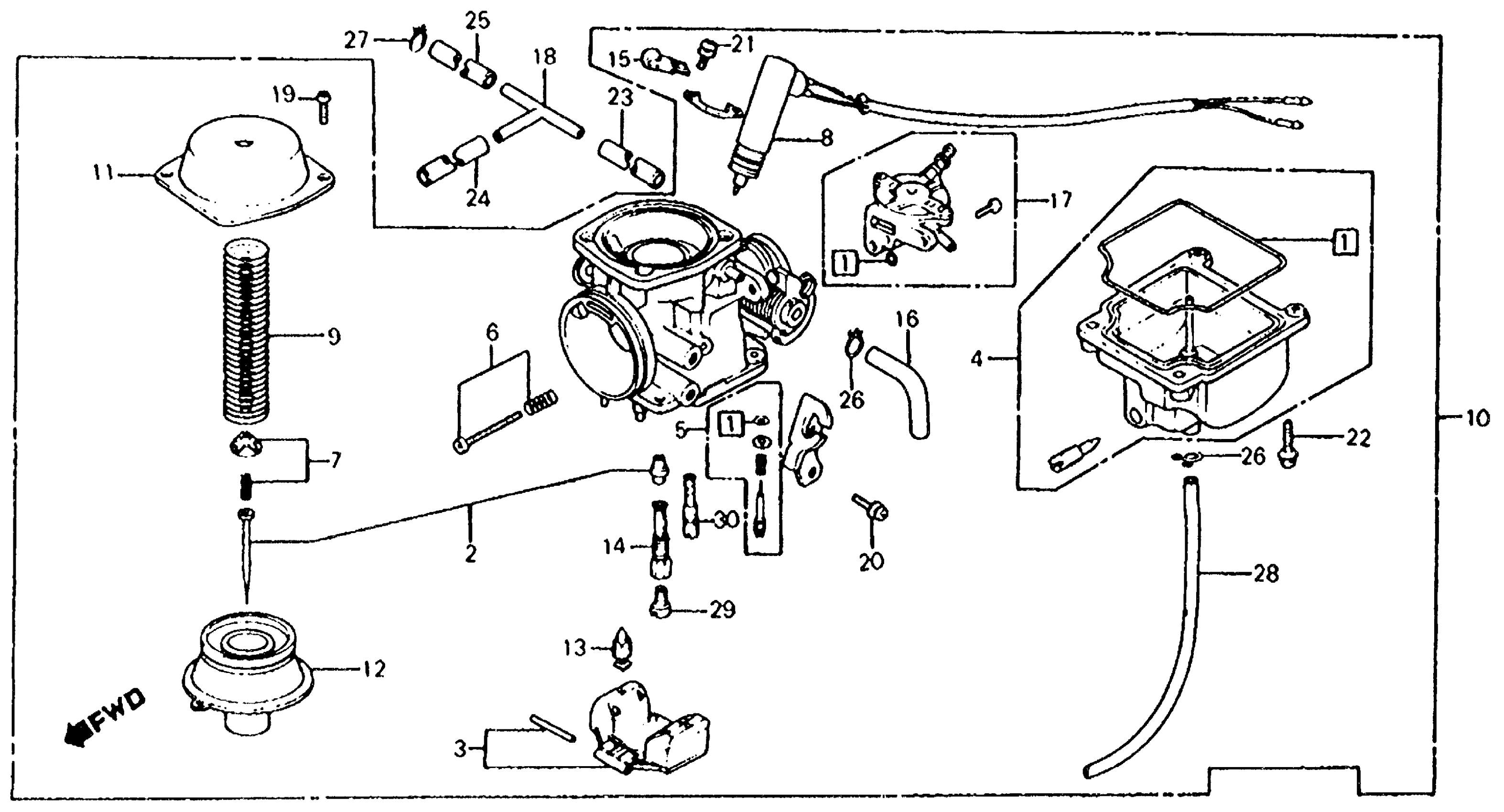

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 CARBURETOR Diagram

#

Description
Price

1

GASKET SET A This part replaces 16010-KJ9-003.

16010-KS4-305

$43.94

1

GASKET SET A This part replaces 16010-KJ9-013.

16010-KS4-305

$43.94

1

GASKET SET A This part replaces 16010-KR0-003.

16010-KS4-305

$43.94

1

GASKET SET A

16010-KS4-305

$43.94

2

NEEDLE SET, JET

16012-KJ9-671

Unavailable

3

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

4

CHAMBER SET, FLOAT This part replaces 16015-KJ9-003.

16015-KJ9-013

Unavailable

4

CHAMBER SET, FLOAT

16015-KJ9-013

Unavailable

5

SCREW SET A (NOT AVAILABLE)

16016-KJ9-671

Unavailable

6

SCREW SET B

16028-KJ9-003

Unavailable

7

PLATE SET, VALVE This part replaces 16037-KJ9-003.

16037-KEN-620

$21.30

8

VALVE SET, STARTER This part replaces 16046-KJ9-003.

16046-KJ9-023

Unavailable

8

VALVE SET, STARTER This part replaces 16046-KJ9-013.

16046-KJ9-023

Unavailable

8

VALVE SET, STARTER

16046-KJ9-023

Unavailable

9

SPRING

16051-KJ9-003

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-KJ9-671.

16100-KJ9-676

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-KJ9-672.

16100-KJ9-676

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-KJ9-673.

16100-KJ9-676

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-KJ9-674.

16100-KJ9-676

Unavailable

11

TOP

16107-KJ9-003

Unavailable

12

PISTON, VACUUM (NOT AVAILABLE)

16111-KJ9-003

Unavailable

13

VALVE, FLOAT

16155-413-751

$32.50

14

HOLDER, NEEDLE JET This part replaces 16165-KJ9-003.

16165-KV8-930

$33.23

14

HOLDER, NEEDLE JET

16165-KV8-930

$33.23

15

BINDER

16179-MJ1-871

Unavailable

16

TUBE, AIR VENT

16199-GC8-004

Unavailable

17

VALVE ASSY., AIR CUT

16510-KJ9-010

Unavailable

18

JOINT (THREE-WAY)

36010-PA6-004

Unavailable

18

JOINT (THREE-WAY) This part replaces 38773-PB9-000.

36010-PA6-004

Unavailable

19

SCREW, PAN (4X8)

93500-04008-0H

$1.49

19

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

20

SCREW-WASHER (4X8)

93892-04008-08

$1.49

21

SCREW-WASHER (4X12)

93892-04012-08

$1.49

22

SCREW-WASHER (4X12)

93892-04014-00

$1.49

23

BULK HOSE, FUEL (3.5X3000) (3.5X70)

95001-35003-60M

$20.85

24

BULK HOSE, FUEL (3.5X3000) (3.5X110)

95001-35003-60M

$20.85

25

BULK HOSE, FUEL (3.5X3000) (3.5X190)

95001-35003-60M

$20.85

26

CLIP, TUBE (B8)

95002-02080

$1.80

27

CLIP, TUBE (C6.5)

95002-35000

$1.49

28

BULK HOSE, VINYL (4.5X8X1000) (4.5X8X300)

95003-09001-60M

$3.45

29

JET, MAIN (#98)

99101-GHB-0980

$6.40

29

JET, MAIN (#98) This part replaces 99101-393-0980.

99101-GHB-0980

$6.40

30

JET, SLOW (#35)

99103-MA6-0350

Unavailable
