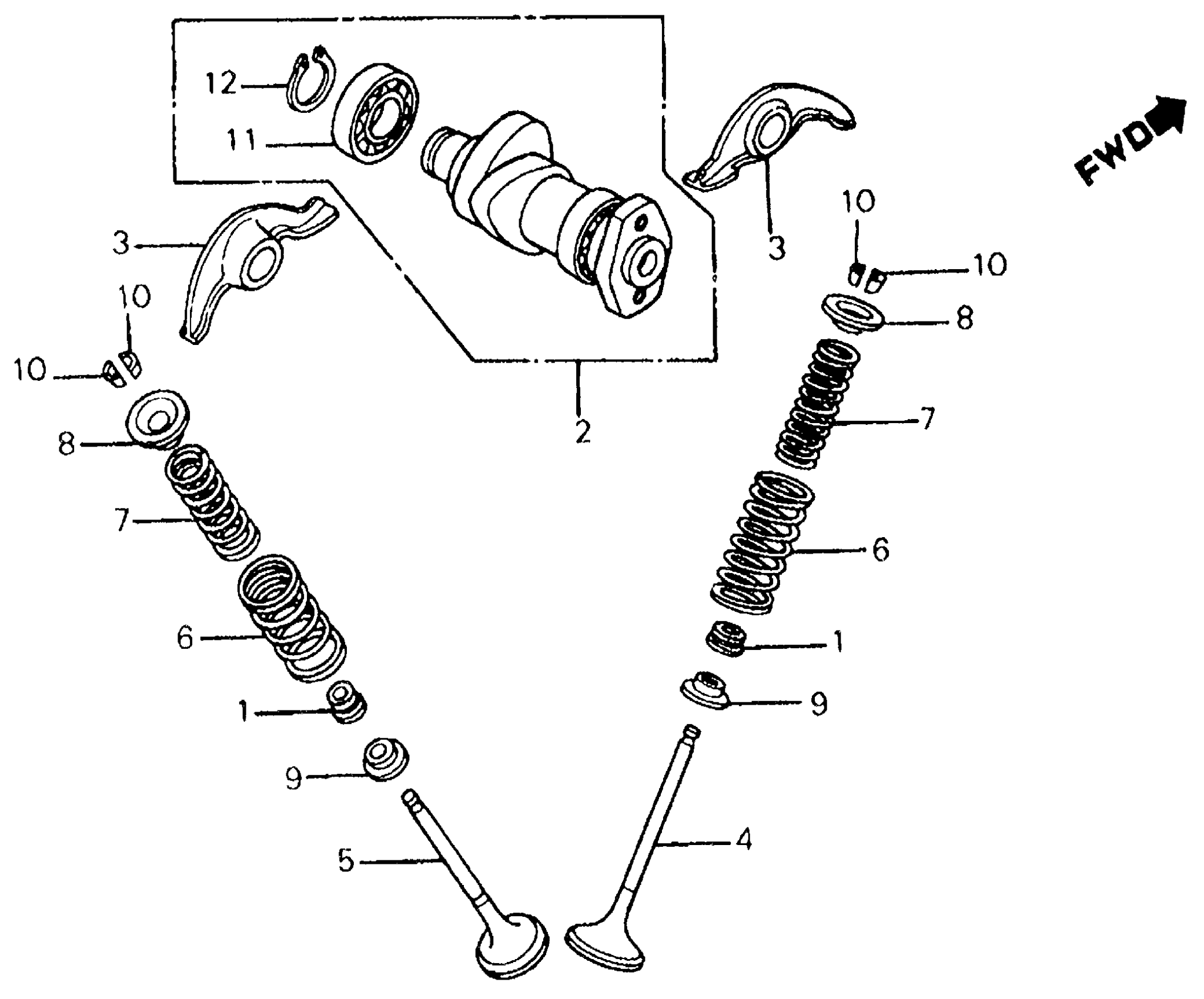

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM (ARAI)

12209-MA6-003

$9.28

SEAL, VALVE STEM (NOK)

12209-MA6-005

$14.02

CAMSHAFT (NOT AVAILABLE)

14100-KJ9-000

Unavailable

ARM, VALVE ROCKER

14431-KJ9-000

$65.08

VALVE, IN.

14711-KJ9-000

Unavailable

VALVE, EX. (NOT AVAILABLE)

14721-KJ9-000

Unavailable

SPRING, VALVE (OUTER)

14751-KJ9-003

$6.97

SPRING, VALVE (INNER)

14761-KJ9-003

Unavailable

RETAINER, VALVE SPRING

14771-GB4-680

$8.68

RETAINER, VALVE SPRING This part replaces 14771-MA6-000.

14771-GB4-680

$8.68

SEAT, VALVE SPRING This part replaces 14777-KJ9-000.

14777-KN7-670

$10.05

SEAT, VALVE SPRING

14777-KN7-670

$10.05

COTTER, VALVE

14781-MA6-000

$2.92

BEARING, RADIAL BALL (16002) This part replaces 91008-GE0-000.

91008-HB3-003

$24.46

BEARING, RADIAL BALL (16002) This part replaces 91008-GE0-004.

91008-HB3-003

$24.46

BEARING, RADIAL BALL (16002) This part replaces 91008-GE0-005.

91008-HB3-003

$24.46

BEARING, RADIAL BALL (16002)

91008-HB3-003

$24.46

CIRCLIP, OUTER (15MM)

94510-15000

$1.49
