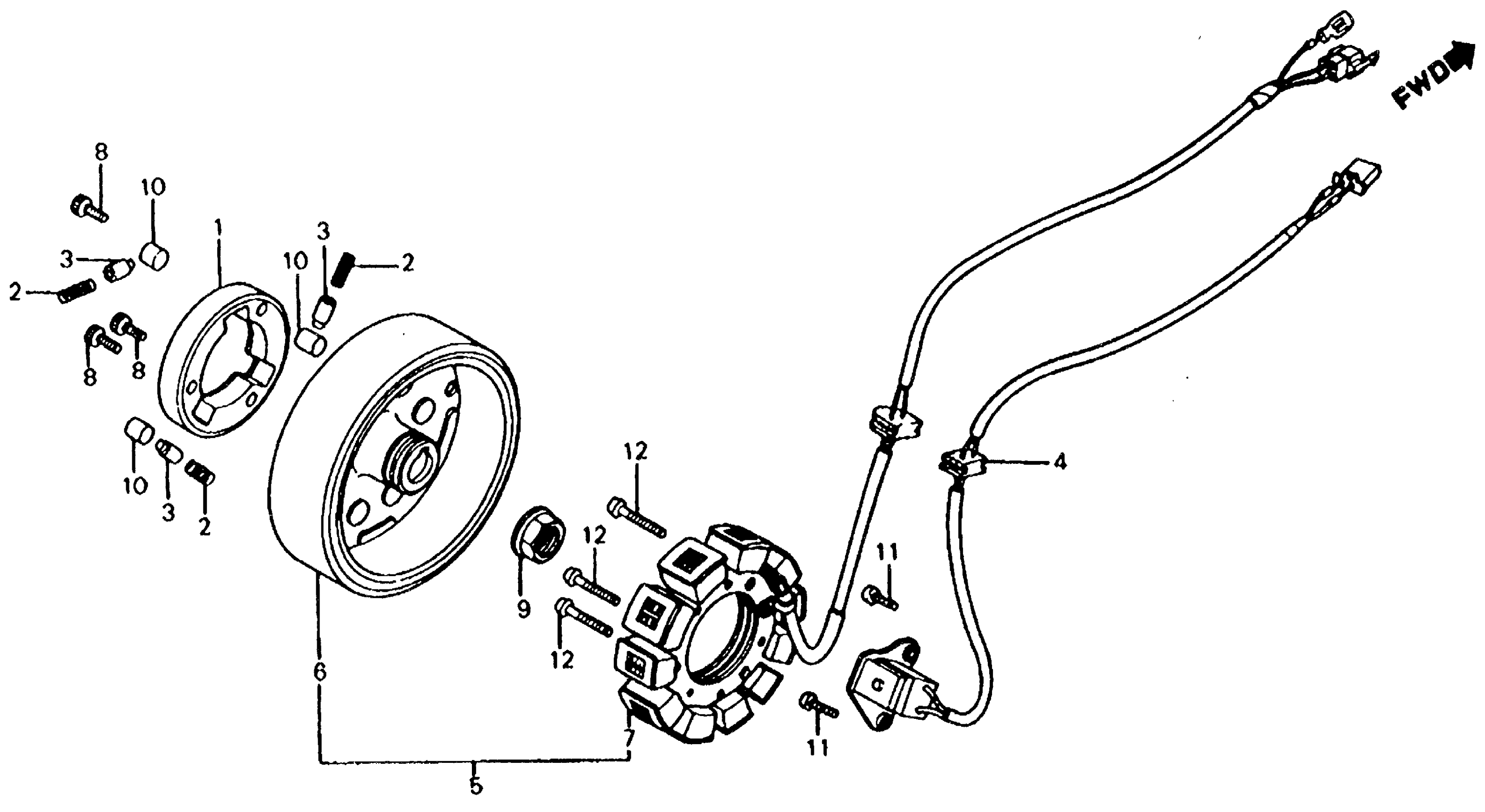

Honda CH125A (84) ELITE 125, JPN, VIN# JH2JF020-EK000006 ALTERNATOR Diagram

#

Description
Price

1

CLUTCH, STARTING (OUTER) (NOT AVAILABLE)

28120-KJ9-000

Unavailable

2

SPRING, STARTING CLUTCH ROLLER

28125-253-020

$5.57

3

CAP, STARTING CLUTCH ROLLER SPRING

28126-253-030

$4.53

4

GENERATOR ASSY., PULSE (DENSO) (NOT AVAILABLE)

30300-KJ9-004

Unavailable

4

GENERATOR ASSY., PULSE (HITACHI) (NOT AVAILABLE)

30300-KJ9-005

Unavailable

5

ALTERNATOR This part replaces 31100-KJ9-004.

31100-KJ9-305

Unavailable

5

GEN, FLYWHEEL A.C. This part replaces 31100-KJ9-005.

31100-KJ9-405

Unavailable

5

ALTERNATOR

31100-KJ9-305

Unavailable

6

ROTOR (DENSO) This part replaces 31110-KJ9-004.

31110-KJ9-305

Unavailable

6

ROTOR (HITACHI)

31110-KJ9-005

$292.94

6

ROTOR (DENSO)

31110-KJ9-305

Unavailable

7

STATOR (DENSO)

31120-KJ9-004

Unavailable

7

STATOR (HITACHI) (NOT AVAILABLE)

31120-KJ9-005

Unavailable

8

BOLT, SOCKET (6X12) (NOT AVAILABLE)

90011-463-000

Unavailable

9

NUT, FLANGE (14MM) This part replaces 90201-KJ9-000.

90201-KR8-751

Unavailable

9

NUT, FLANGE (14MM) This part replaces 90201-KJ9-010.

90201-KR8-751

Unavailable

9

NUT, FLANGE (14MM)

90201-KR8-751

Unavailable

10

ROLLER (10X10)

91101-179-710

$4.23

11

SCREW, PAN (5X14)

93500-05014-0A

$1.49

12

SCREW, PAN (5X35)

93500-05035-0A

$1.49
