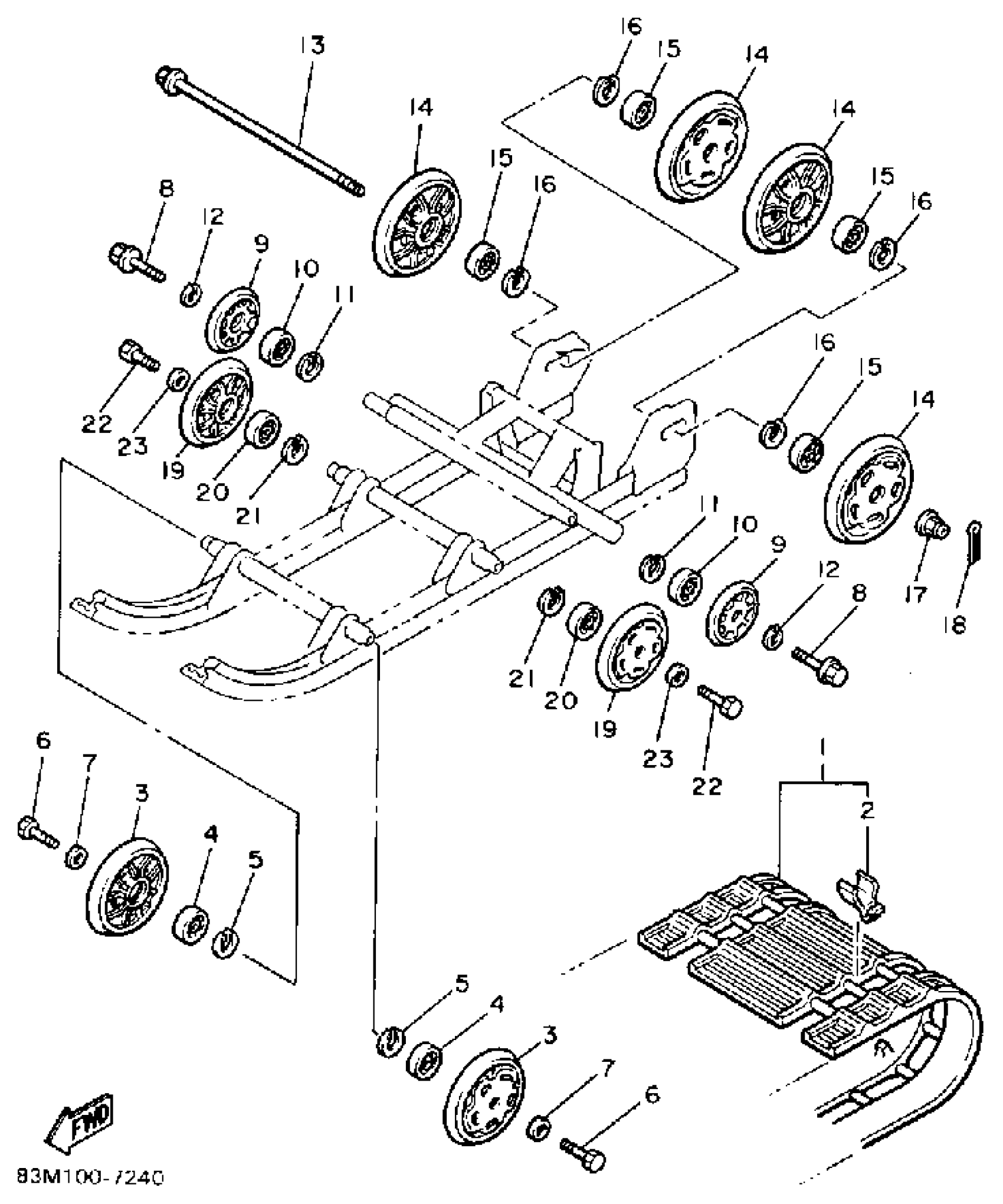

Yamaha CF300P (INVITER) 1990 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8H9-47110-01-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

Unavailable

3

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

4

BEARING(8AB)

93306-00444-00

$41.99

5

CIRCLIP(5U8)

99009-42500-00

$8.49

6

BOLT (8K2)

90109-08559-00

$8.49

7

WASHER (8G1)

90201-08681-00

$7.49

8

BOLT (8V0)

90109-10771-00

$5.60

9

SUSPENSION WHEEL COMP.

8H8-47320-00-00

$64.99

10

BEARING(8AB)

93306-00444-00

$41.99

11

CIRCLIP(5U8)

99009-42500-00

$8.49

12

CIRCLIP(1AR)

99009-20400-00

$8.49

13

REAR AXLE COMP.

8L8-47520-02-00

$89.99

14

GUIDE WHEEL COMP.

8K2-47530-00-00

$127.99

15

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

16

CIRCLIP(48Y)

99009-47500-00

Unavailable

17

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

18

PIN, COTTER

91490-30030-00

Unavailable

19

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

20

BEARING(8AB)

93306-00444-00

$41.99

21

CIRCLIP(5U8)

99009-42500-00

$8.49

22

BOLT (8K2)

90109-08559-00

$8.49

23

WASHER (8G1)

90201-08681-00

$7.49
