- CF300P (INVITER) 1990
TRACK DRIVE 2

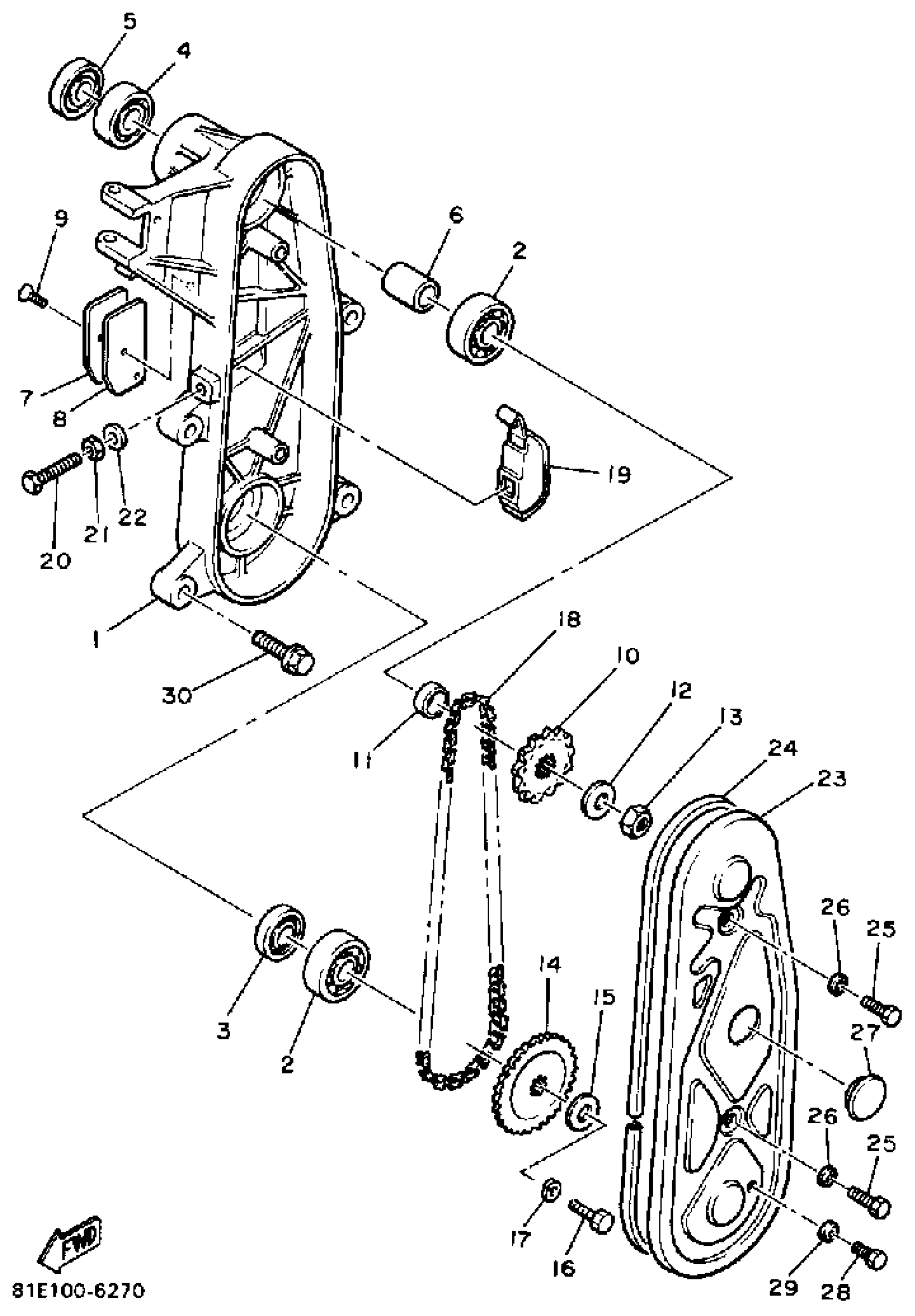

Yamaha CF300P (INVITER) 1990 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
81E-47541-00-00
Unavailable
2
BRG,R-B 6304 52MM 144G NT
93306-30407-00
Unavailable
3
OIL SEAL(4BA)
93102-20447-00
$11.49
4
BEARING(1GJ)
93306-20458-00
$43.99
5
OIL SEAL (30X47X7-810)
93102-30083-00
$13.49
6
COLLAR
90387-20580-00
Unavailable
7
PLATE
81E-47591-00-00
Unavailable
8
GASKET
86E-47592-00-00
Unavailable
9
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
10
SPROCKET, CHAIN DRIVE(12T)
812-17682-20-00
$14.49
11
COLLAR
90387-197N8-00
Unavailable
12
WASHER, PLATE (35T)
90201-122H1-00
$9.49
13
NUT, SELF LOCKING (23X)
90185-12119-00
$11.49
14
SPROCKET,CHN DRN
8BC-47548-90-00
Unavailable
15
WASHER, PLATE (4W3)
90201-086A3-00
$8.49
16
BOLT, HEXAGON
97017-08025-00
Unavailable
17
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
18
CHAIN (81E)
94580-01062-00
Unavailable
19
TENSIONER
8F3-47611-02-00
Unavailable
20
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
21
NUT (682)
95380-10700-00
Unavailable
22
WASHER SEAL 256111730200
90210-10004-00
Unavailable
23
CAP, HOUSING
81E-47543-00-00
Unavailable
24
RING, HOUSING
83M-47558-00-00
Unavailable
25
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
26
GASKET
90430-08023-00
Unavailable
27
CAP
148-22315-00-00
Unavailable
28
SCREW, BIND(1JK)
98980-06010-00
Unavailable
29
GASKET
90430-06017-00
Unavailable
30
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
